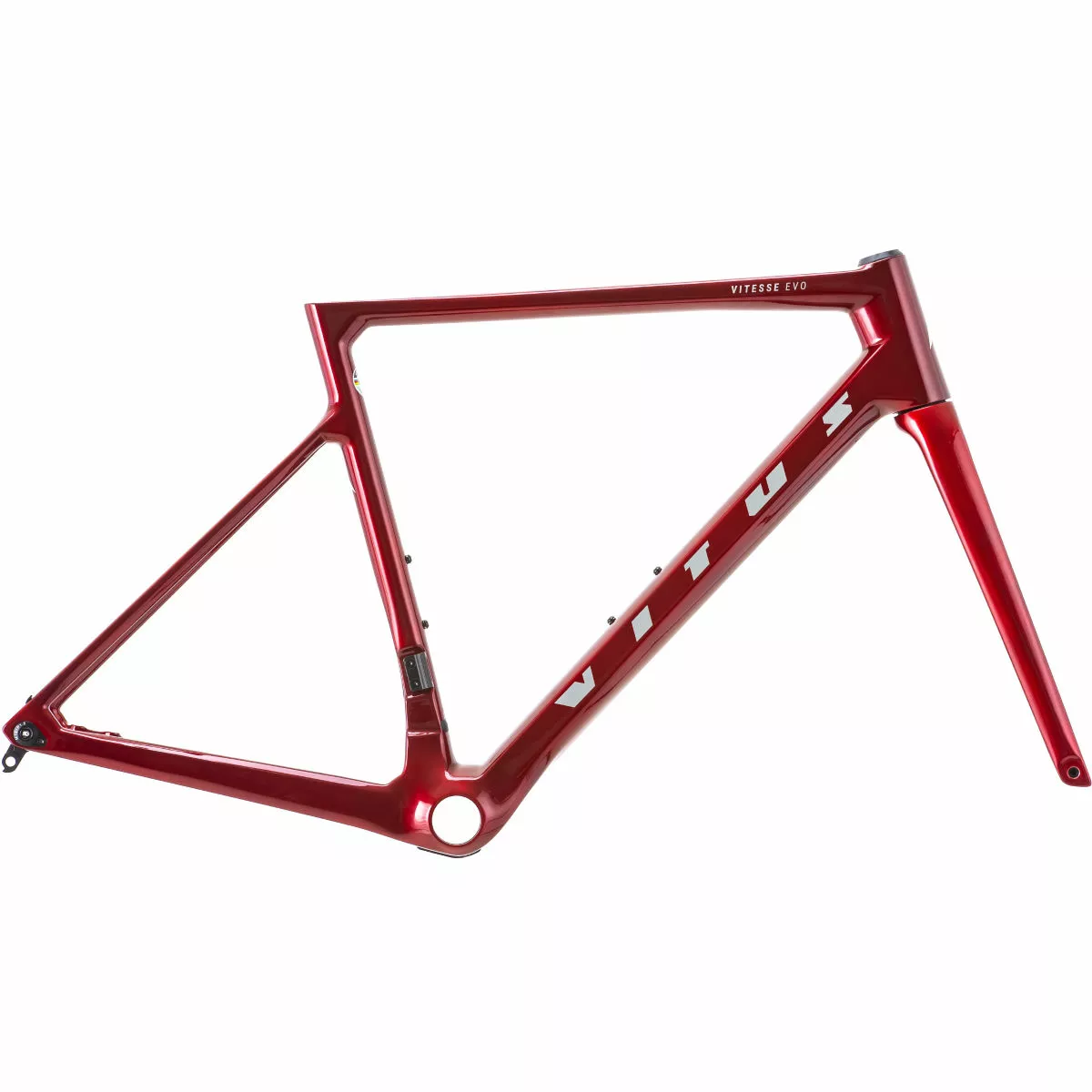

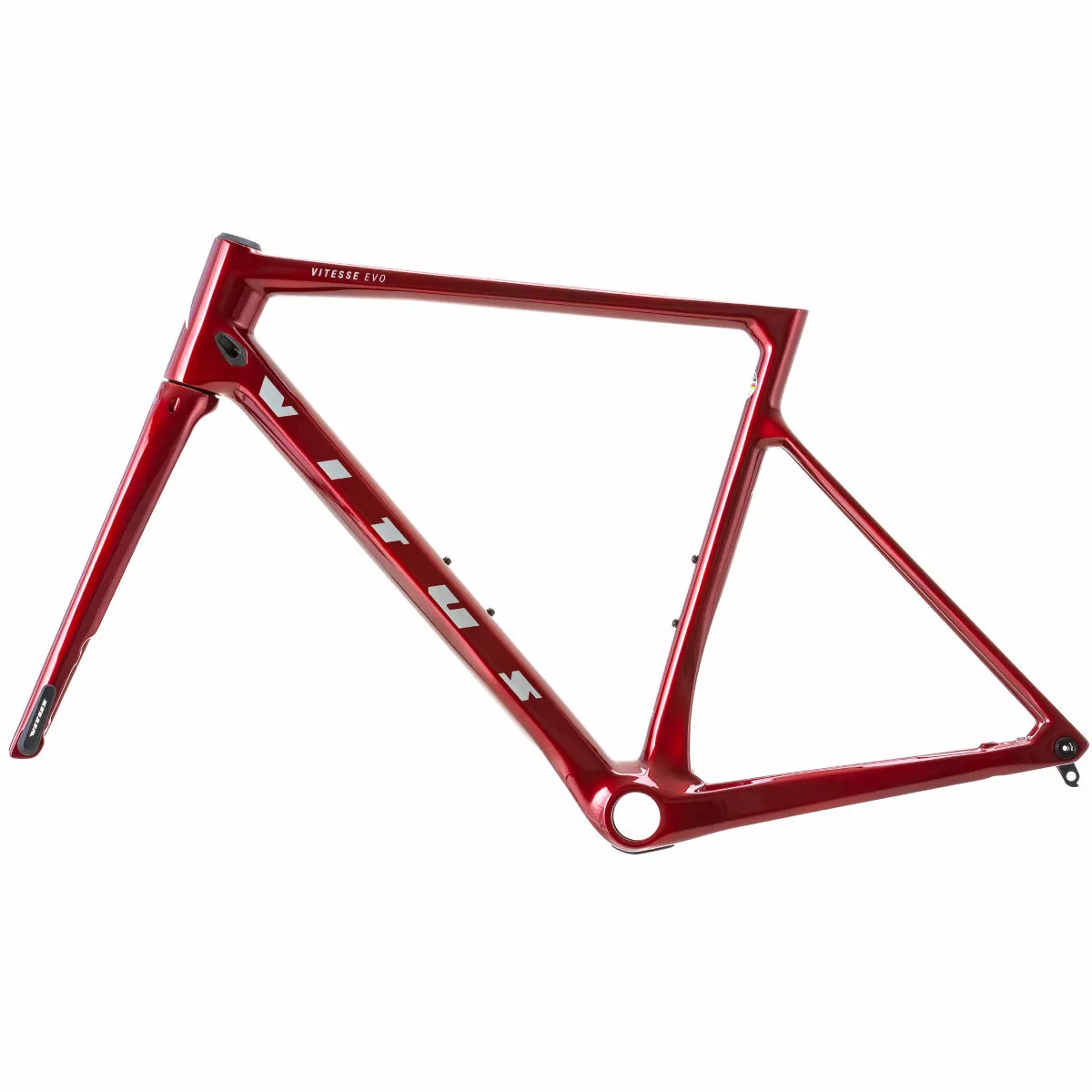

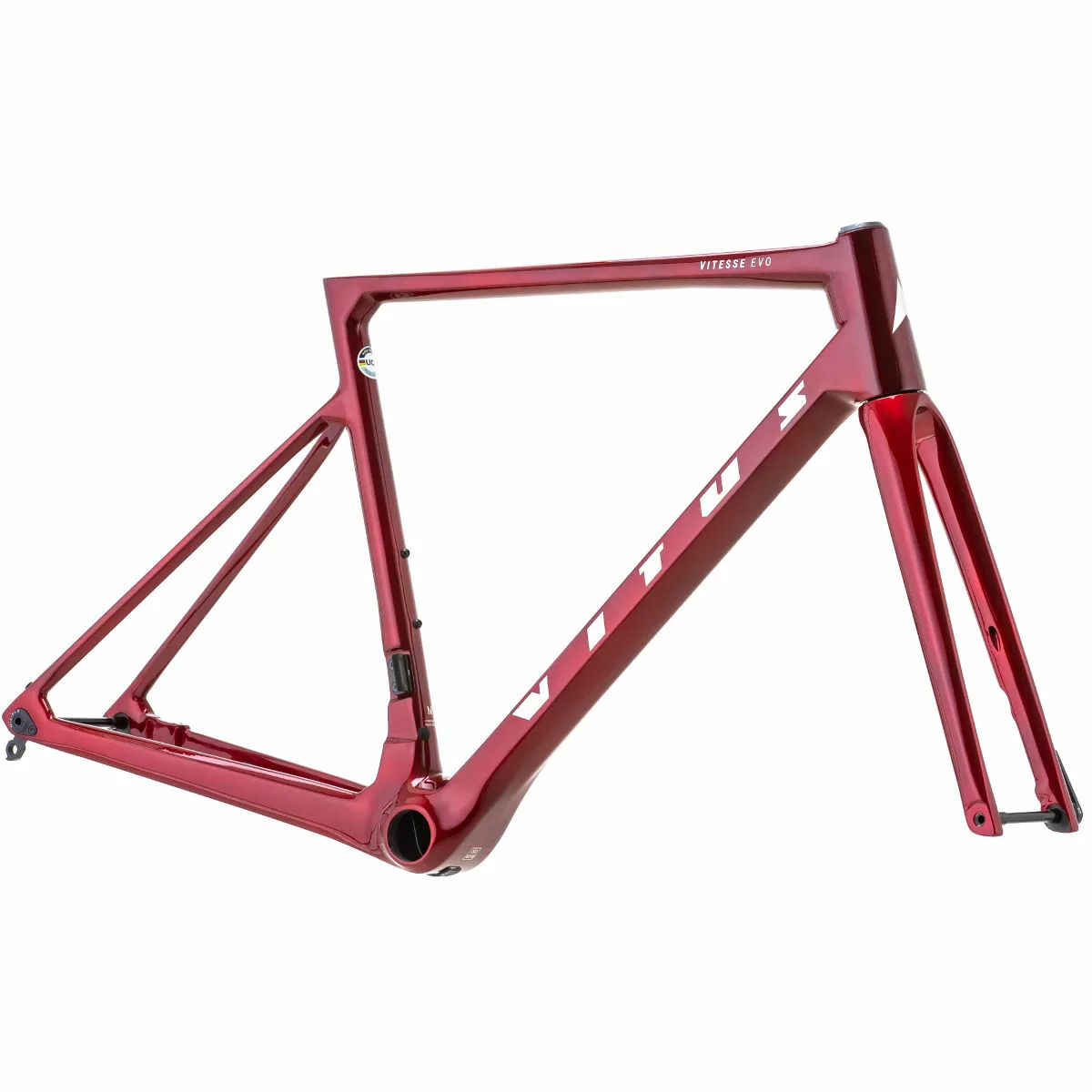

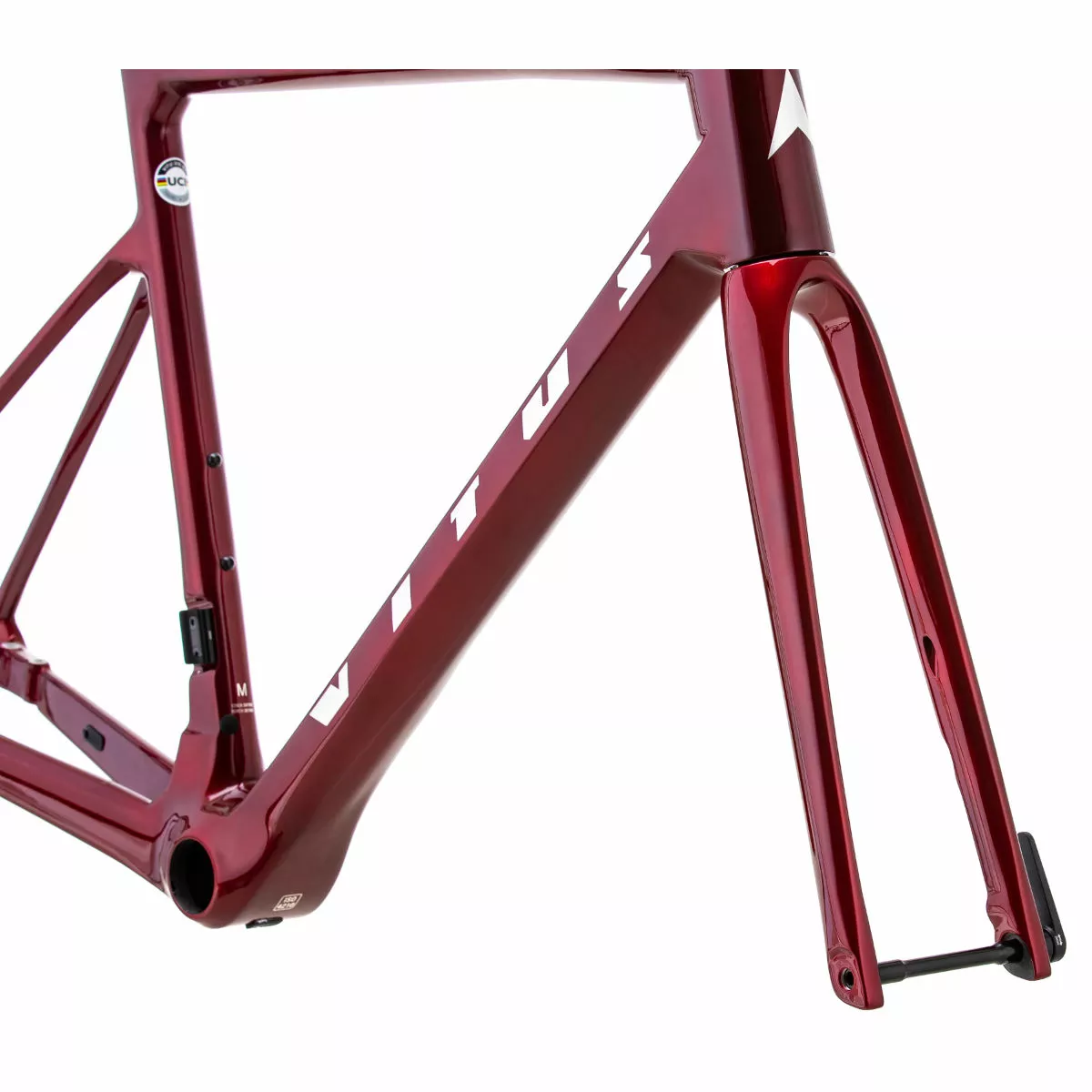

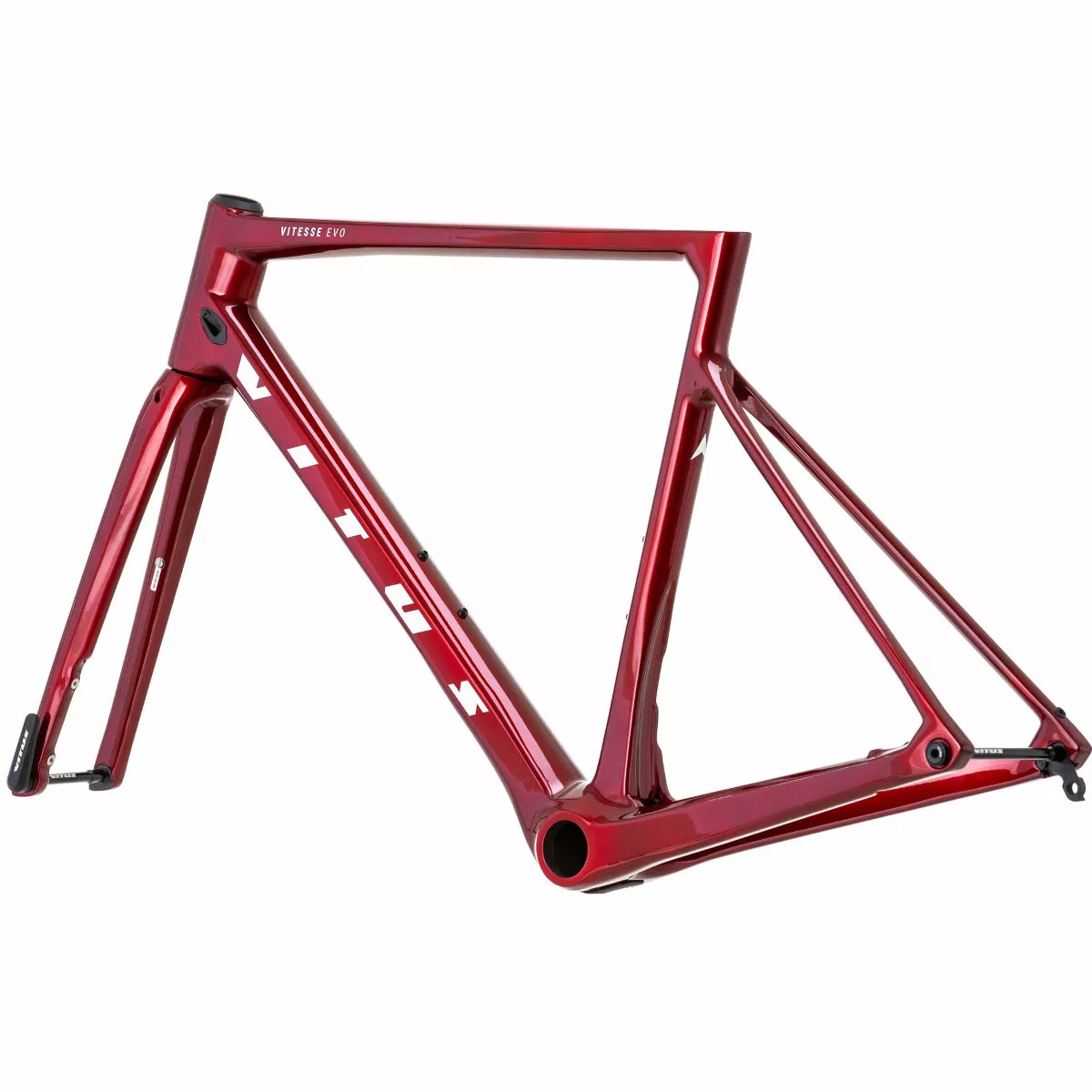

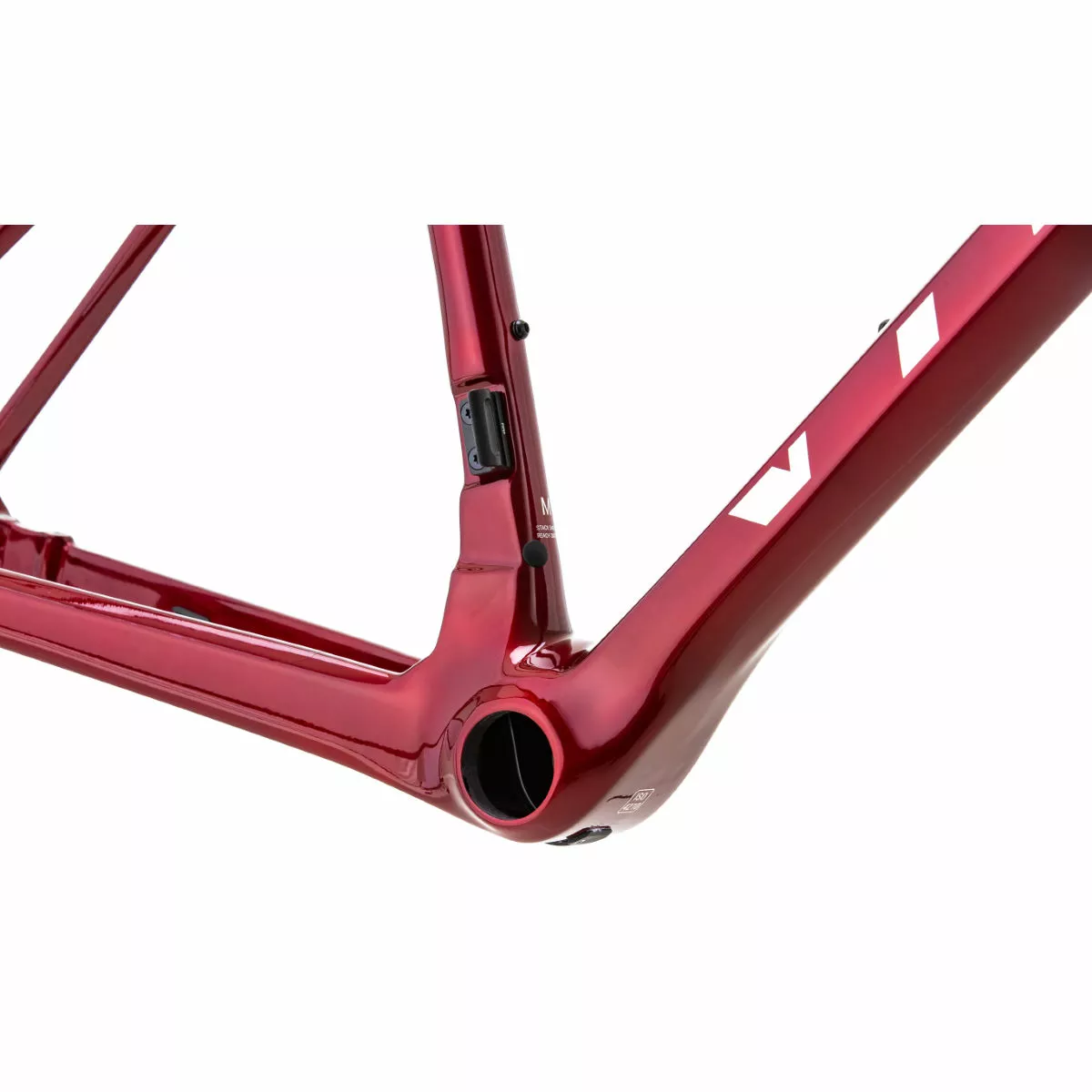

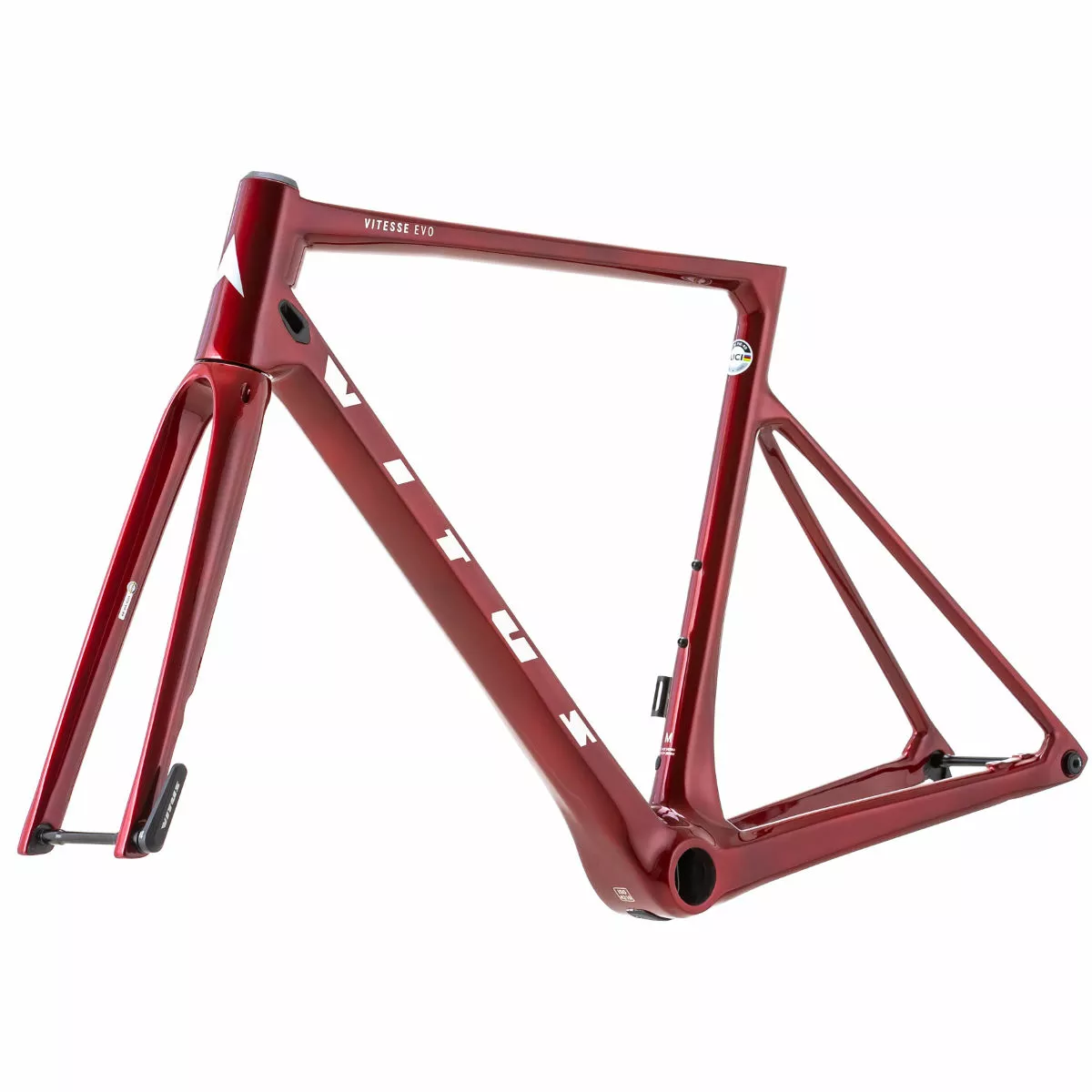

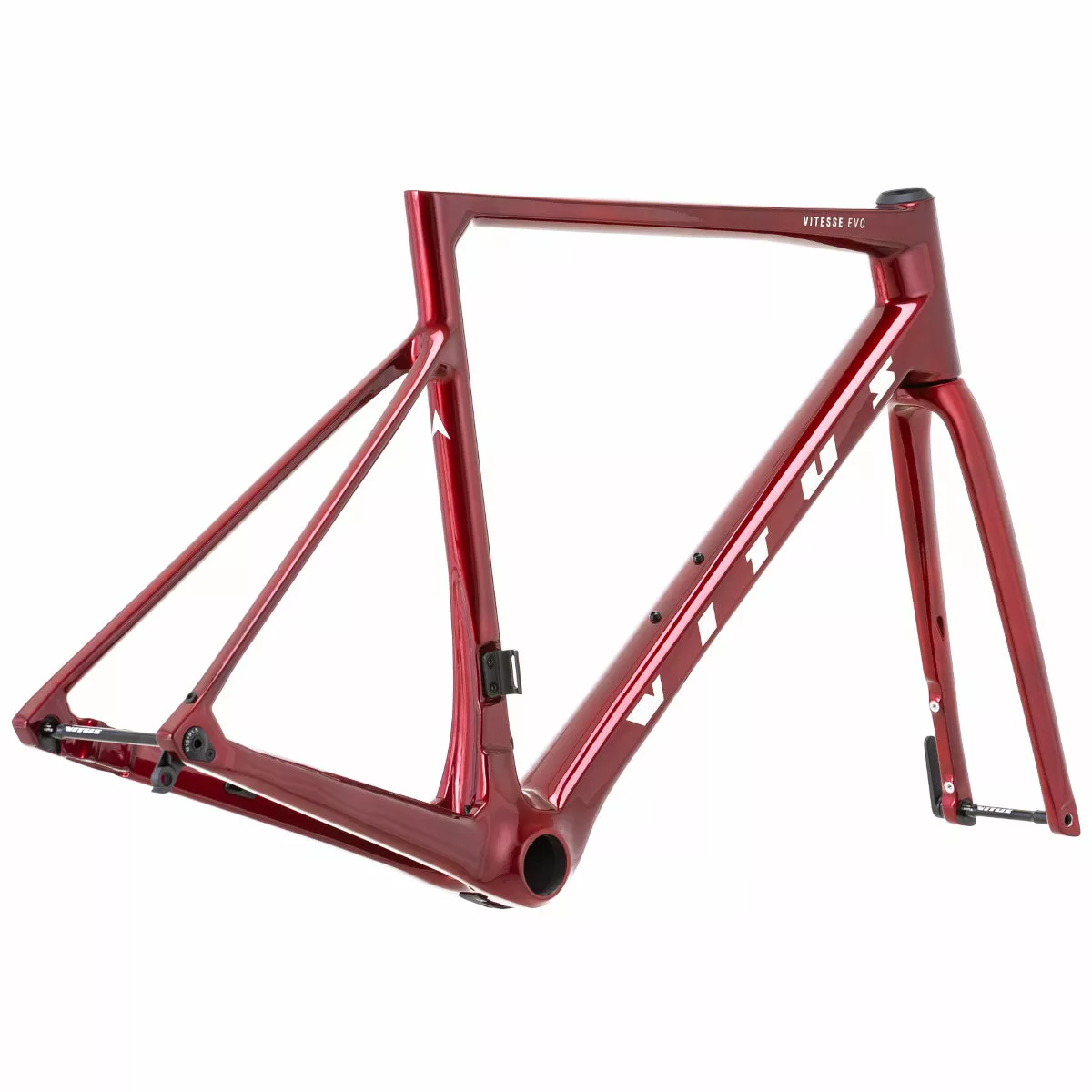

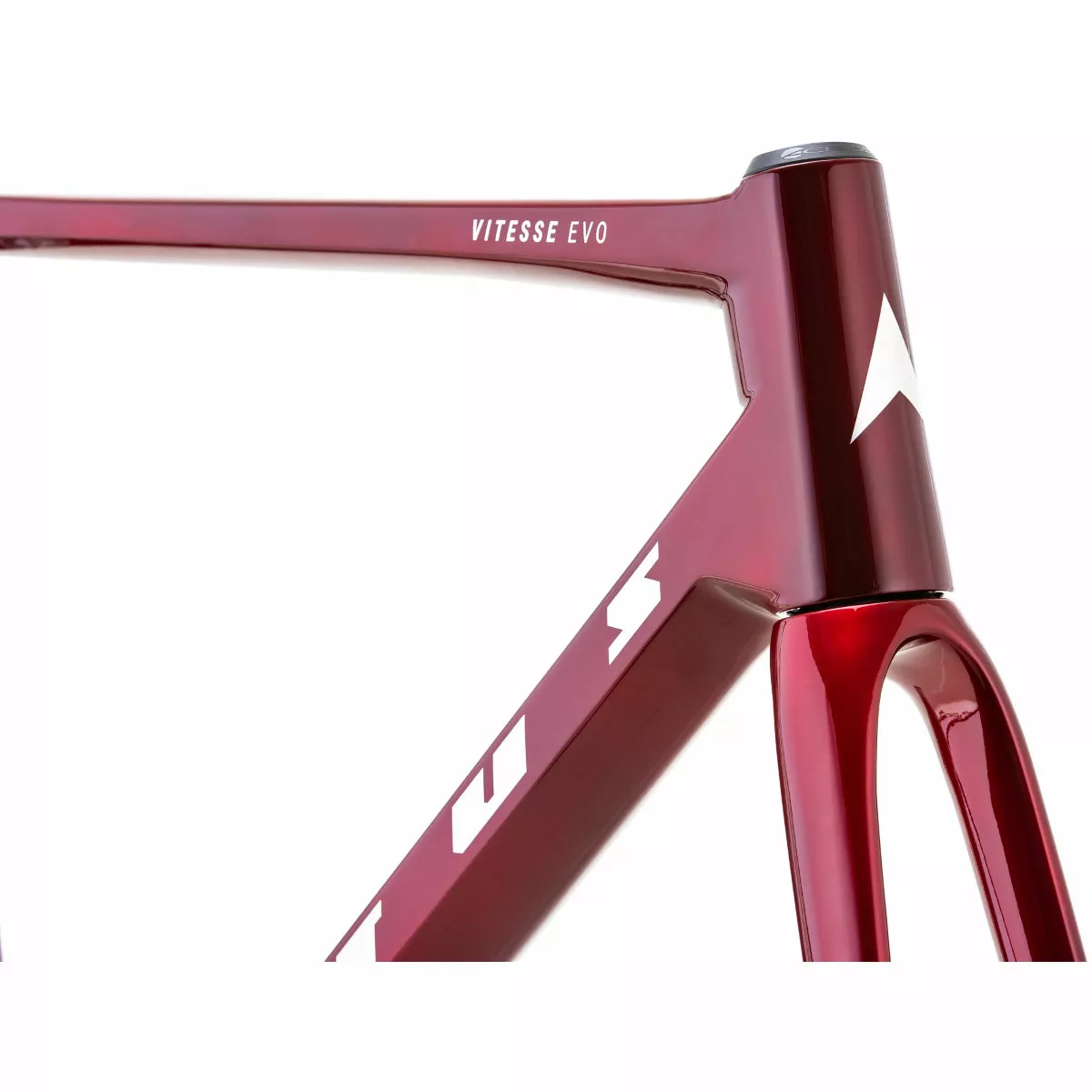

Vitus Vitesse EVO Frameset

The Vitesse has been on a redesign journey, and this updated EVO features Vitus’ latest one-piece carbon frame. Not only does it look clean (and fast!), the seamless design has no joins and there is no extra material being used to bond the frame together, keeping weight down. So you will still get the goosebumps of excitement when you feel it for the first time. “Phwoar! That’s light”.

When you start rolling, you’ll realise that there is so much more going on here to benefit your riding. The geometry is optimised, giving you control through turns whilst also being responsive to bursts of acceleration or steeper ramps. Stiffness is engineered into the frame where you need it most, so precious energy won’t be wasted – something we all need on those long, hilly days. Plus, the modern frame clearance enables space for a bigger volume tyre as well, smoothing out those real world road surfaces.

The Vitesse EVO is a masterful climber. When you dream of dancing on the pedals, floating up legendary climbs and scorching personal bests, this is the bike you do it on. And when you roll over the top and hit the descent, there’s no teetering. No indecision, just pure control. This bike lets you relax and carve the perfect line.

Key Features:

SL UD Carbon aero frame and fork with integrated seat clamp
Race-Fit geometry

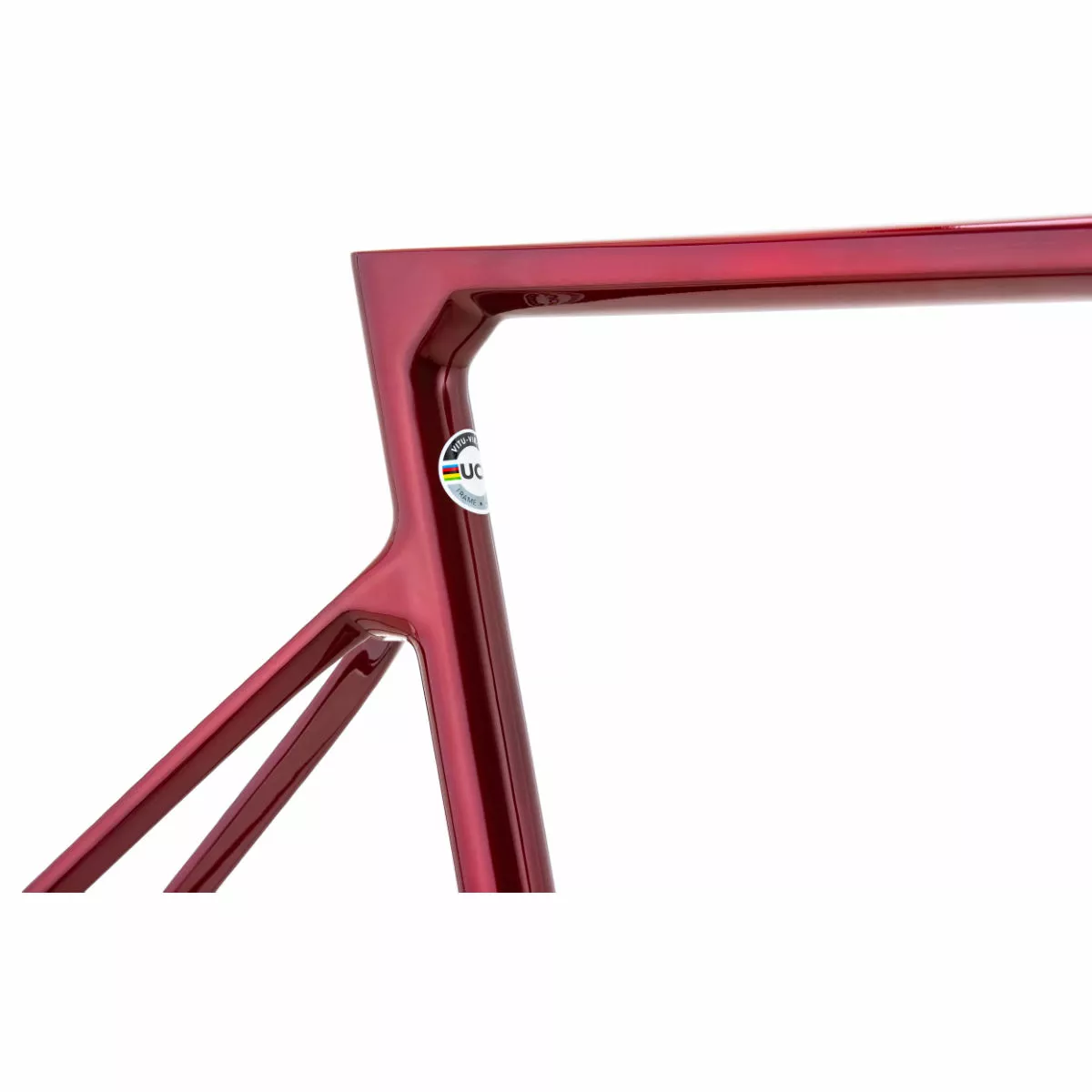

UCI Approved
One-piece carbon monocoque frame construction
Internal cable routing
Includes frame, forks, headset, integrated seat clamp & axles

Features:

Frame: Vitesse EVO SL UD Carbon, UCI Approved, Internal Cable Routing, 12mm x 142mm Hub Spacing, Flat Mount, Axle Specifications: 172mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch

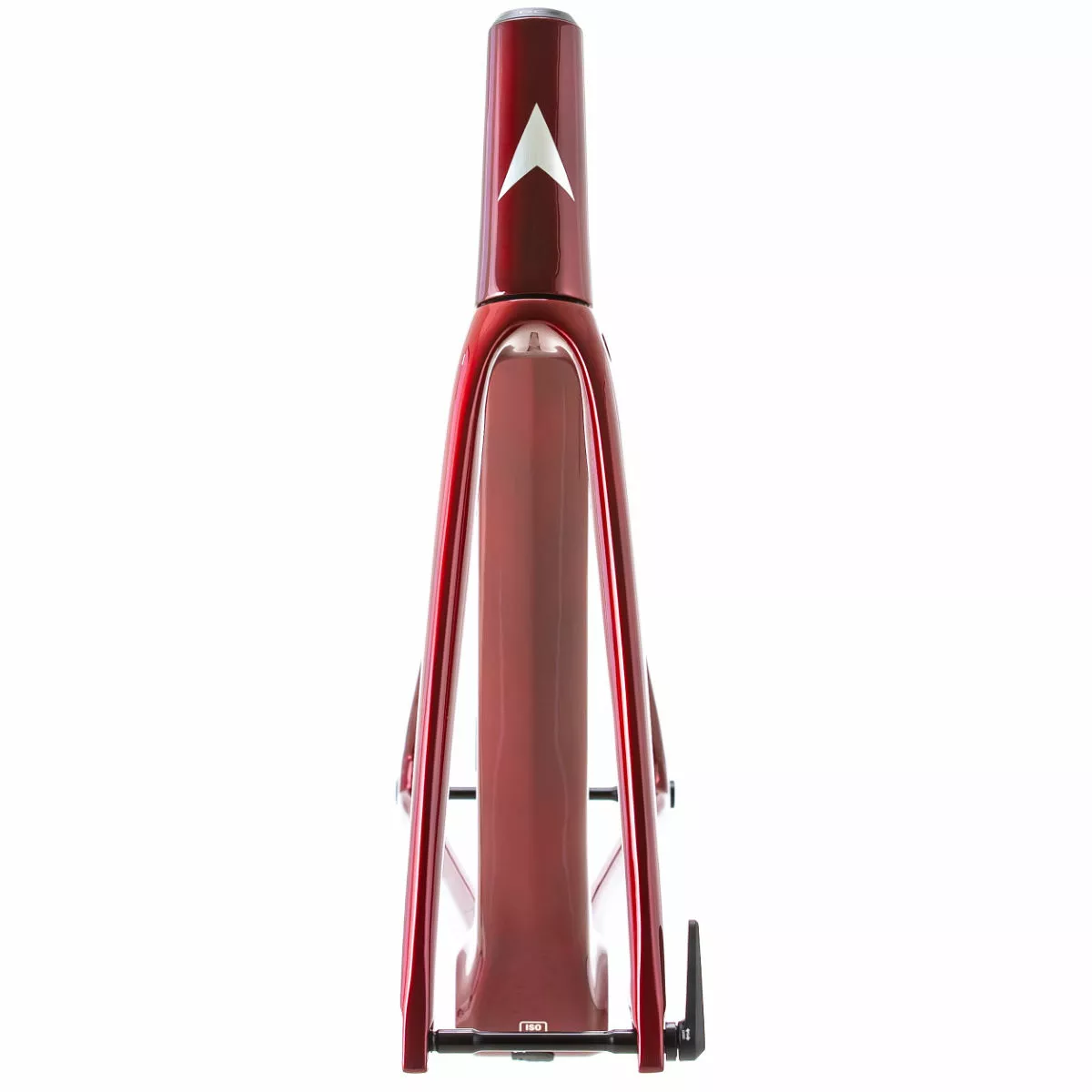

Fork: Vitesse EVO Carbon, SL UD Carbon, UCI Approved, Tapered Steerer, 100 x 12mm, Flat Mount, Size Specific Offset
Headset: ACROS Aix-Low R3, Sealed Bearings, OD46, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40

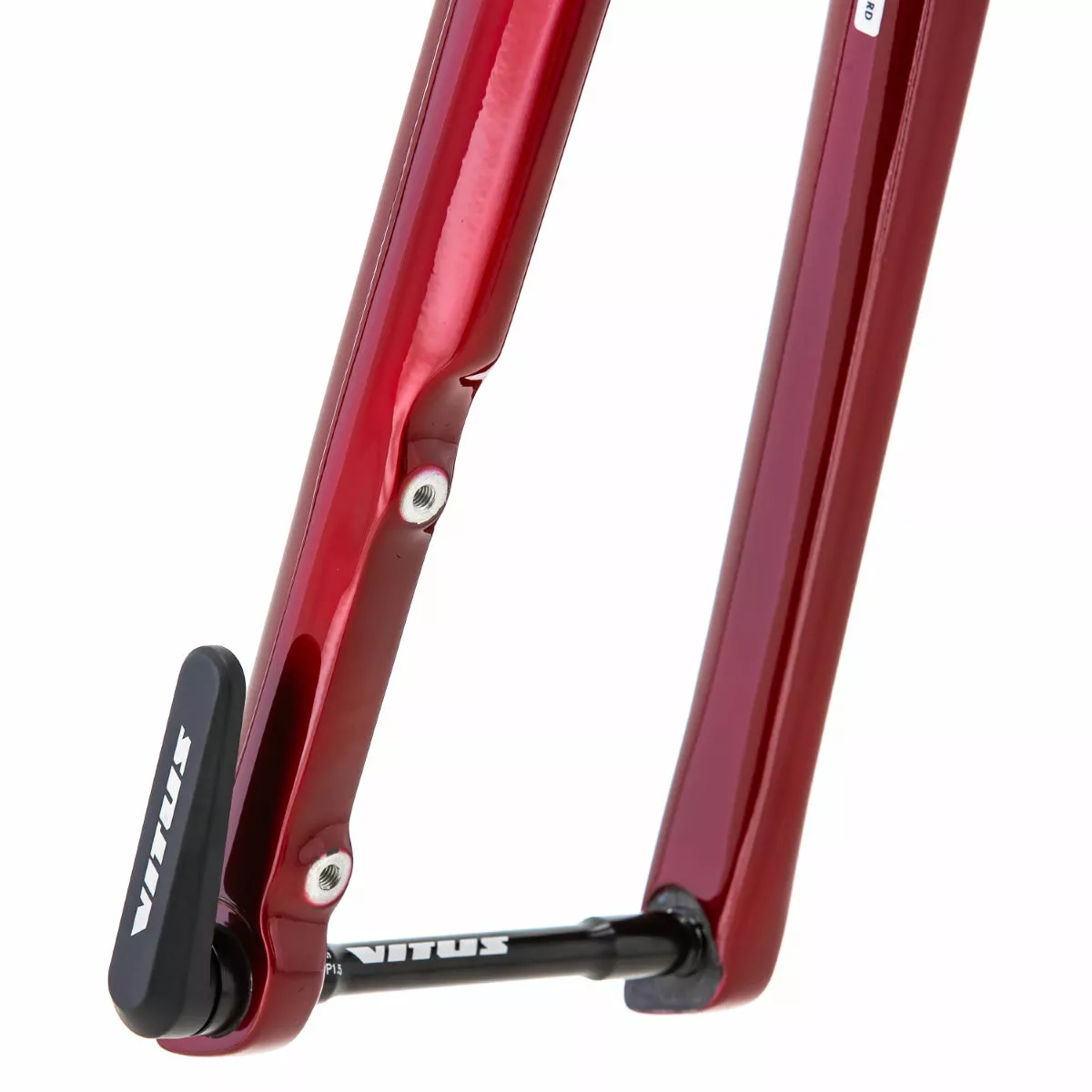

Front Axle: Vitus Alloy, 100 x 12mm

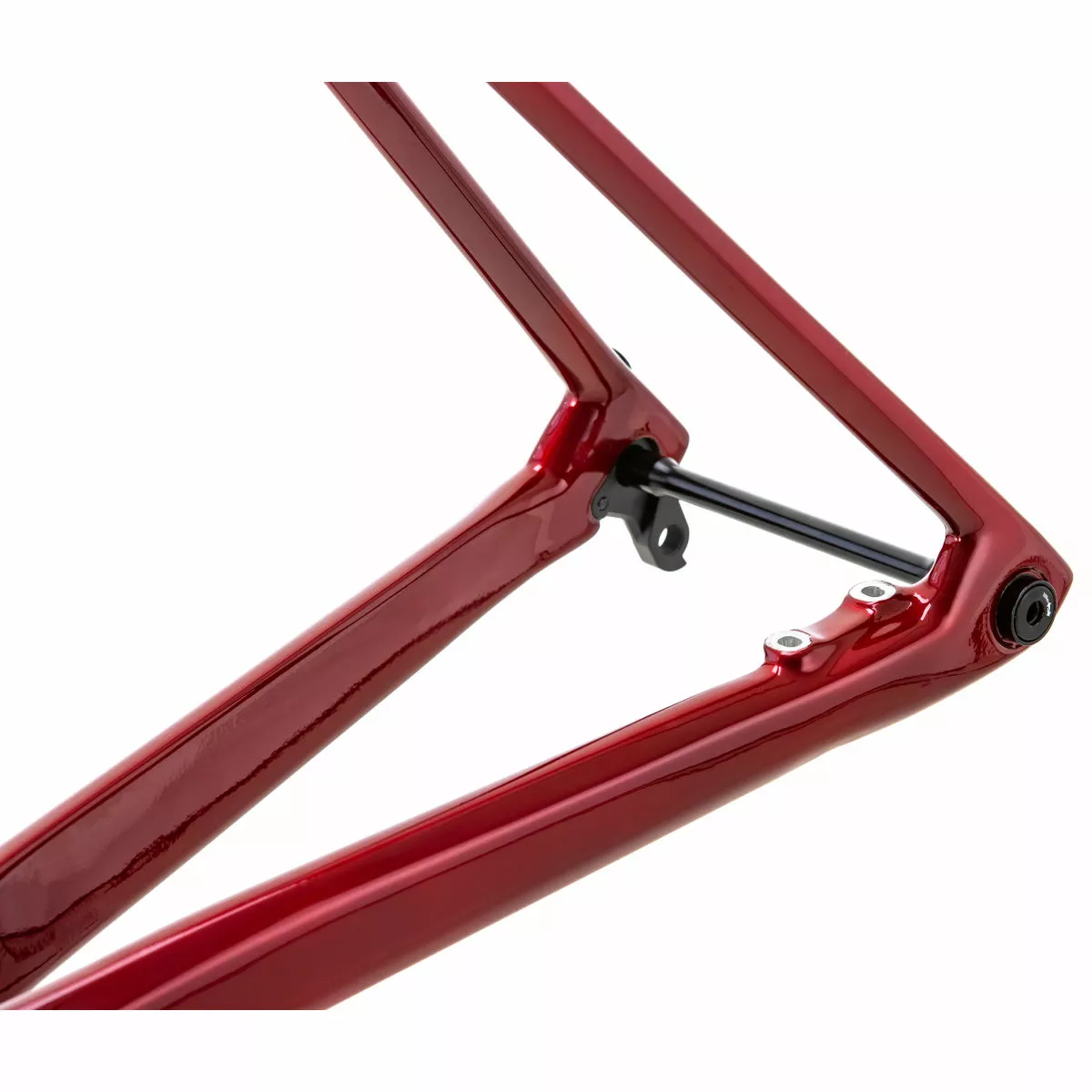

Rear Axle: Vitus Alloy, 142 x 12mm
Seat Screw: Vitesse EVO Integrated, Internal Wedge System
Includes: Frame, forks, headset, integrated seat clamp and axles
Weight: Medium: 1kg

Technologies:

Full Monocoque Frame: A true one piece monocoque frame manufactured as a single piece of super light UD carbon. No joins, so greater strength and lighter weight

Race-Fit Geometry: Race-Fit geometry is reserved for Vitus’ performance led race bikes. The aim is to put the rider in the most advantageous posistion possible, maximising power output and aerodymaic positioning, whilst maintaining comfort

Dual Fork Design: Frame size specific fork geometry maintaining fit and handling characteristics across the full size curve.

Improved Tyre Clearance: The new Vitesse EVO frame now has 30c tyre clearance across all frame sizes and even up to 32c depending on the rim/tyre combination.
