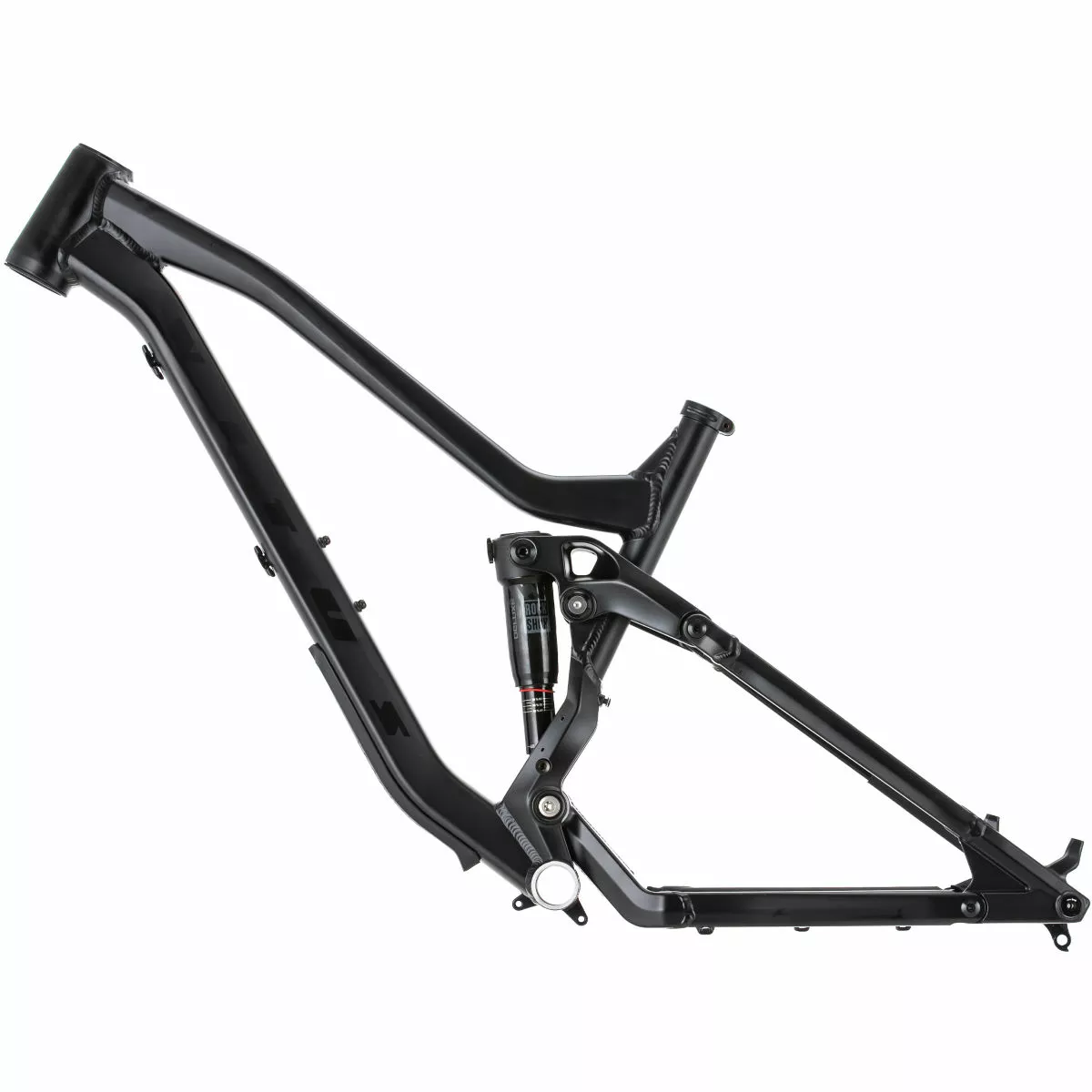

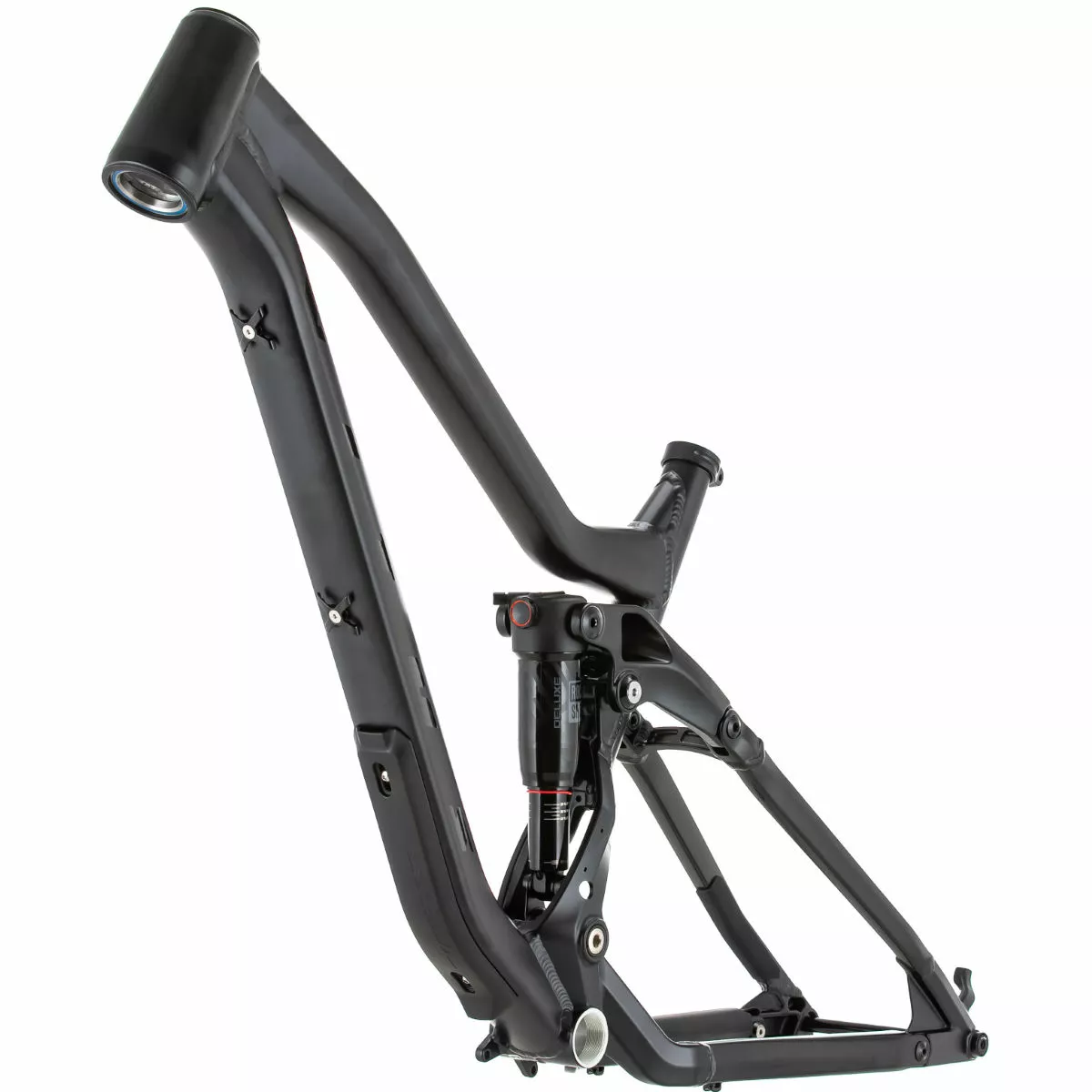

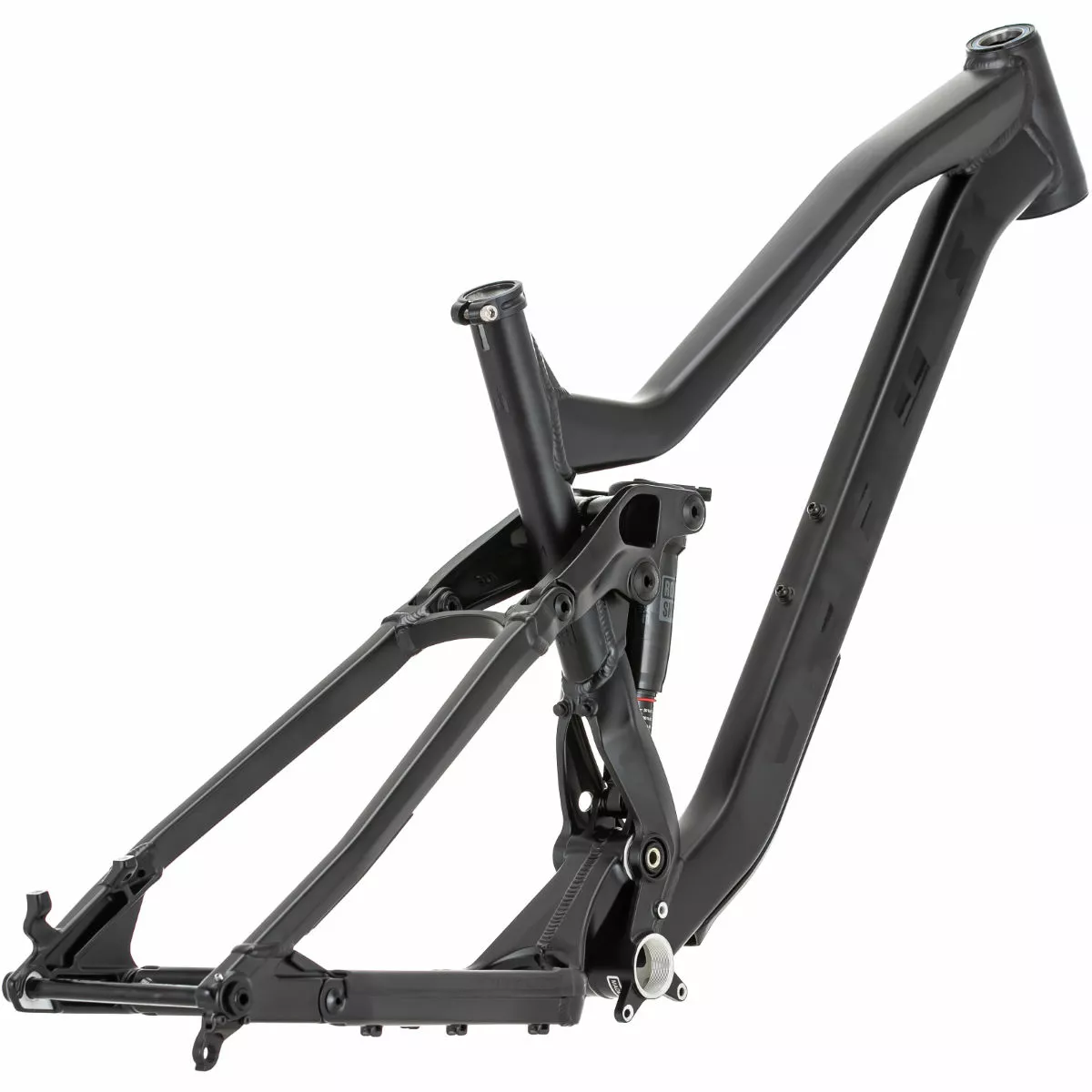

Vitus Escarpe 29 Frame (2020)

With 140mm rear travel, it’s recommended to pair the Escarpe 290 Frame with a 150mm travel fork for a perfect trail bike that’ll climb with ease and hold its own when the going gets rough thanks to its modern geometry.

Key Features:

6061-T6 double butted Aluminium frame with external cable routing for easy maintenance
Aggressive geometry inspires confidence through tough terrain
29″ platform balances speed & efficiency
140mm rear travel handled by a RockShox Deluxe Select R shock
148mm x 12mm boost rear axle spacing
Robust plastic down tube protection with rubber seat stay and chainstay protection
Intended Use: Trail / All Mountain

Frameset Includes:

Frame: Escarpe 6061-T6 double butted Aluminium frame, external cable routing, tapered head tube, post disc brake mounts, BSA threaded BB, Boost hub spacing – 148mm x 12mm thru axle

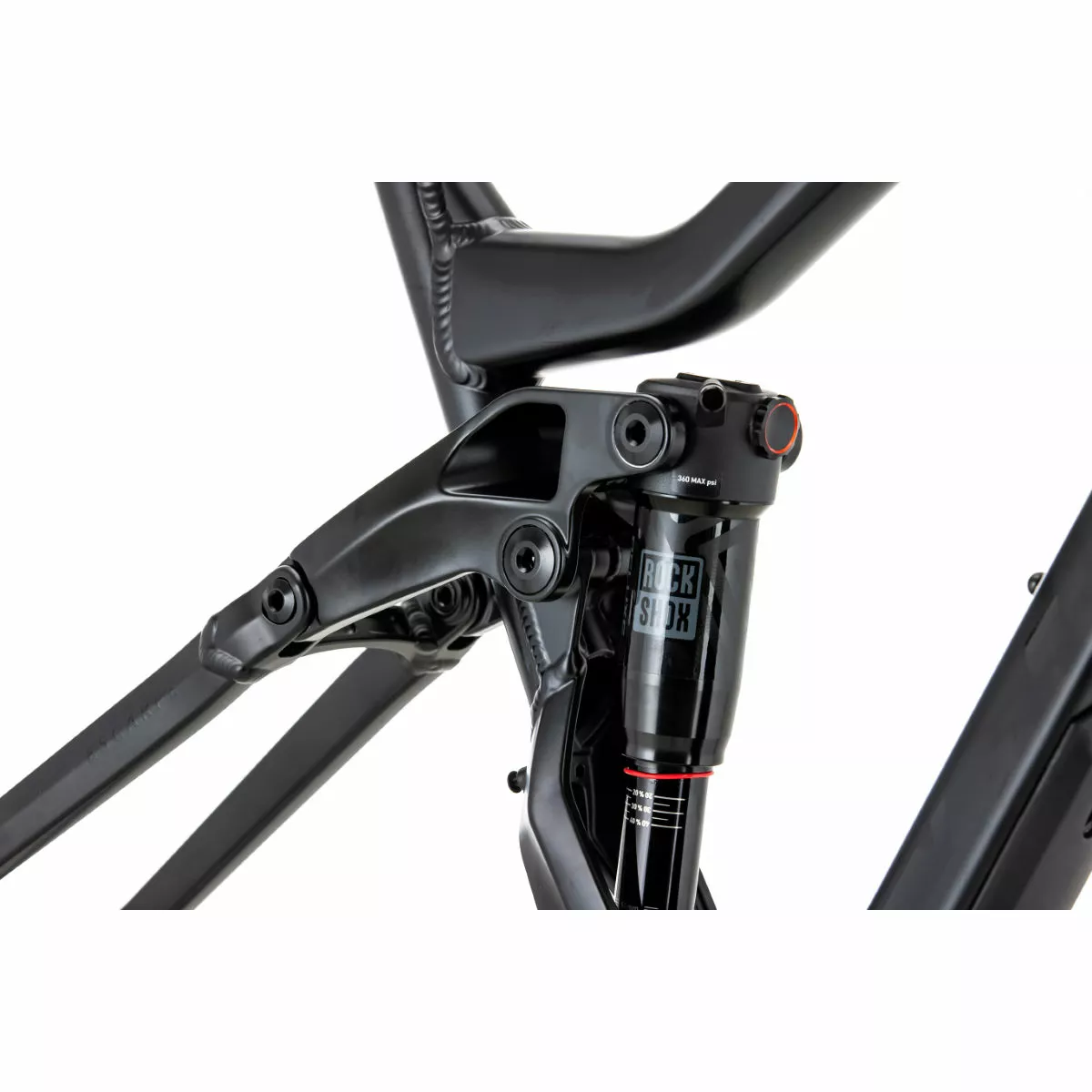

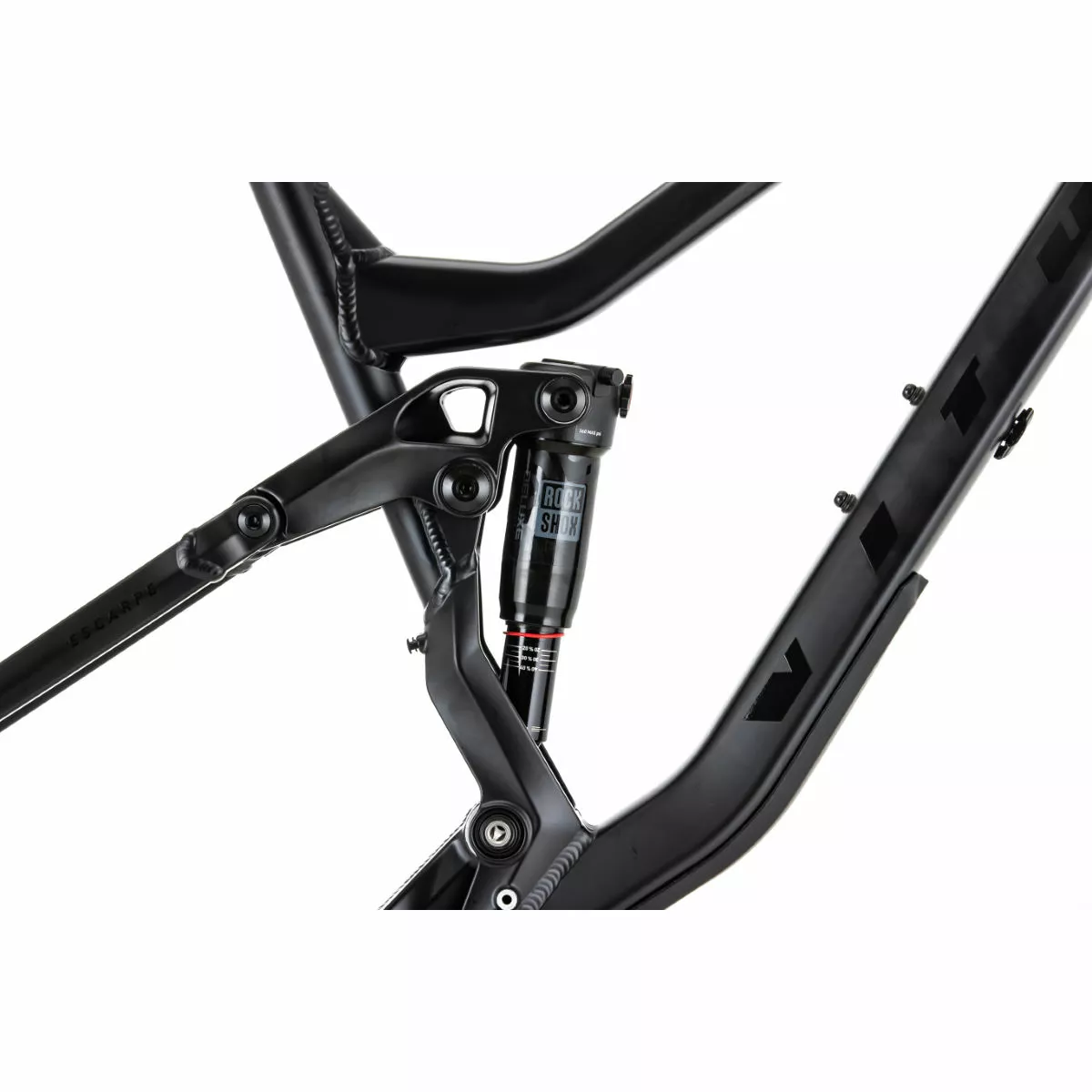

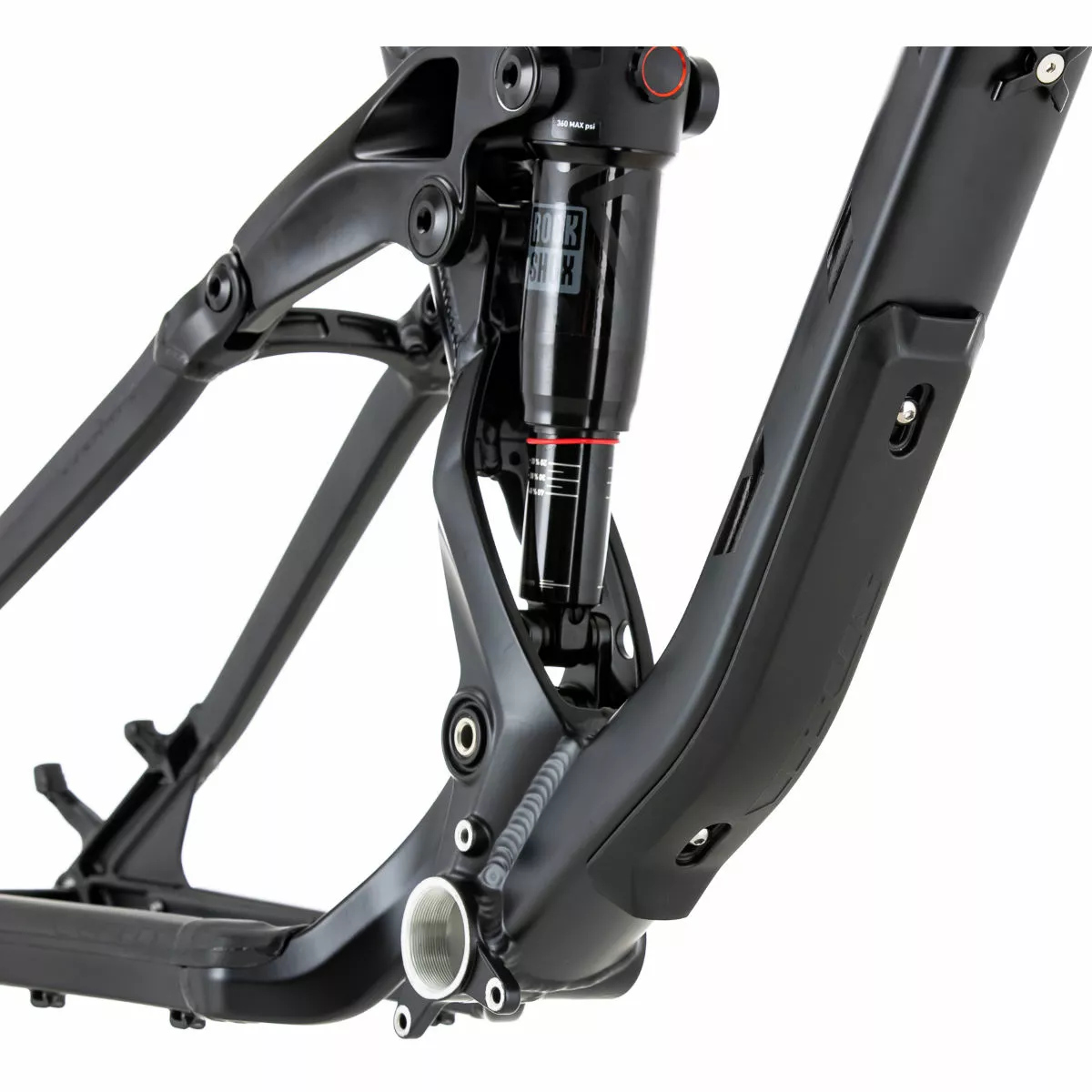

Rear Shock: RockShox Deluxe Select R, 185mm x 50mm, trunnion mount
Headset: Acros AZX-212-CO R5, ZS44/28.6 upper and ZS56/40 lower to suit 1-1/8″ upper tapered to 1.5″ lower headtube
Seat Screw: Vitus, 36.4mm Diameter
Axle: Vitus, 181mm Length, 20mm Thread Length, M12xP1.5 Thread Pitch

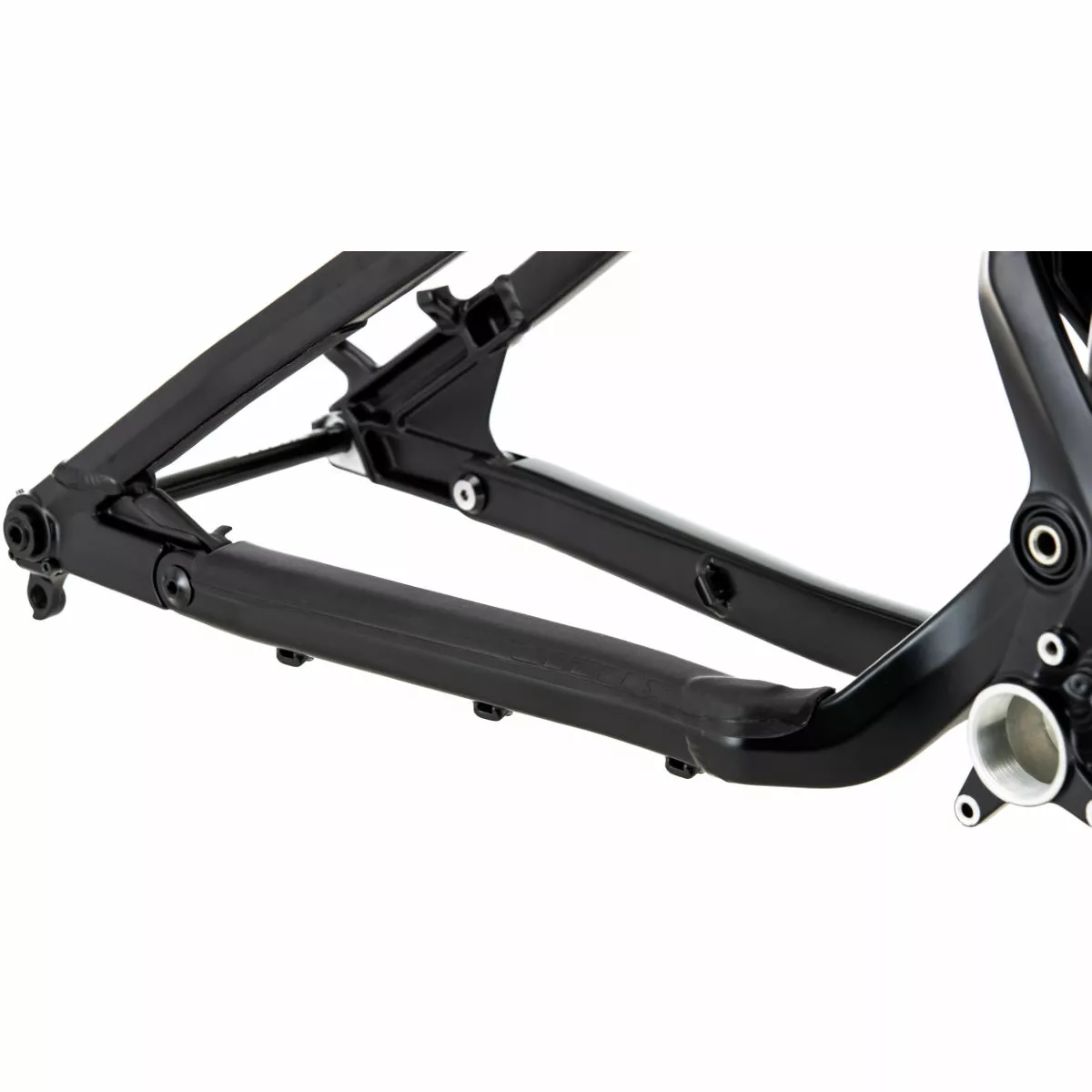

Frame Protection: Plastic down tube protector, rubber chain stay and inner seat stay protection
