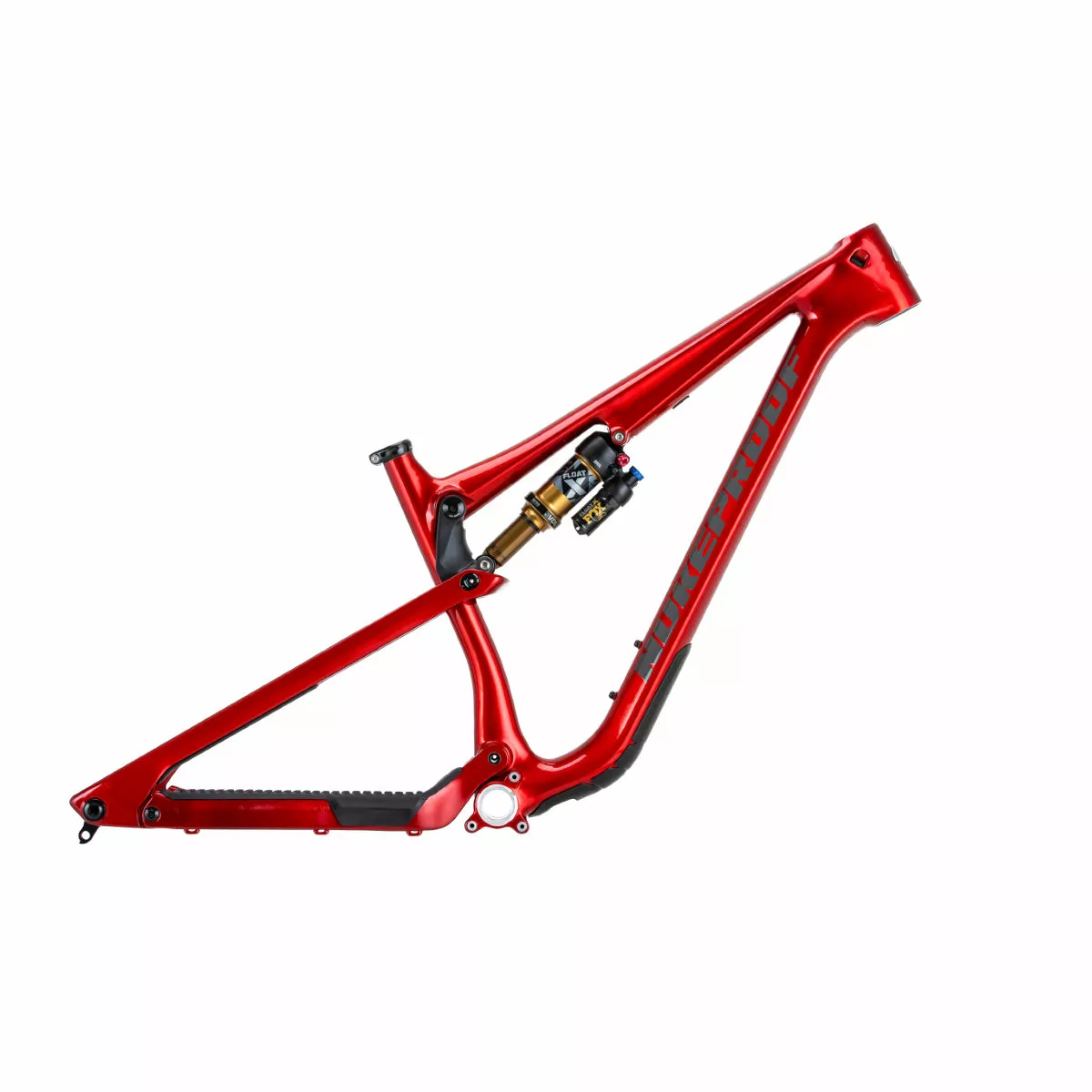

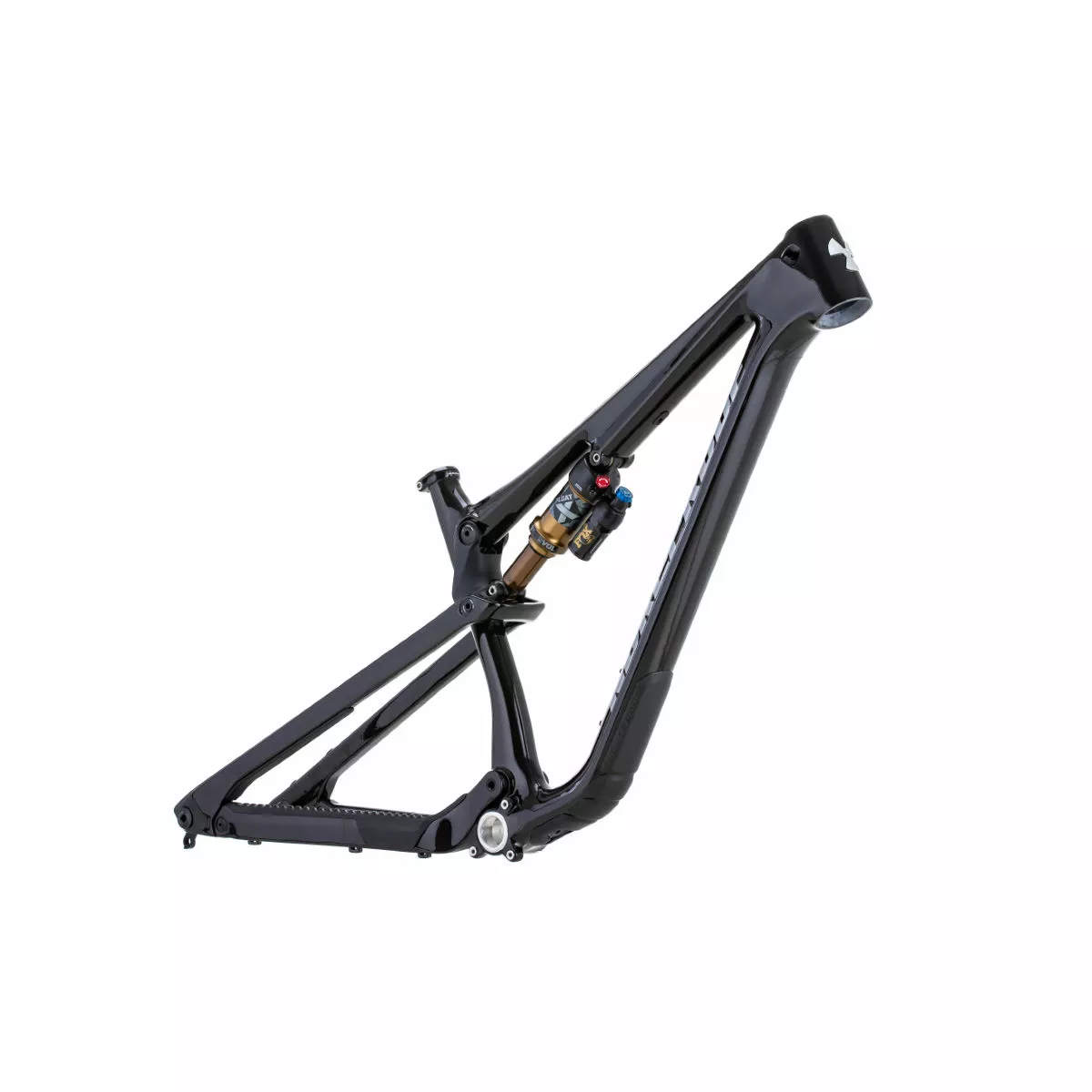

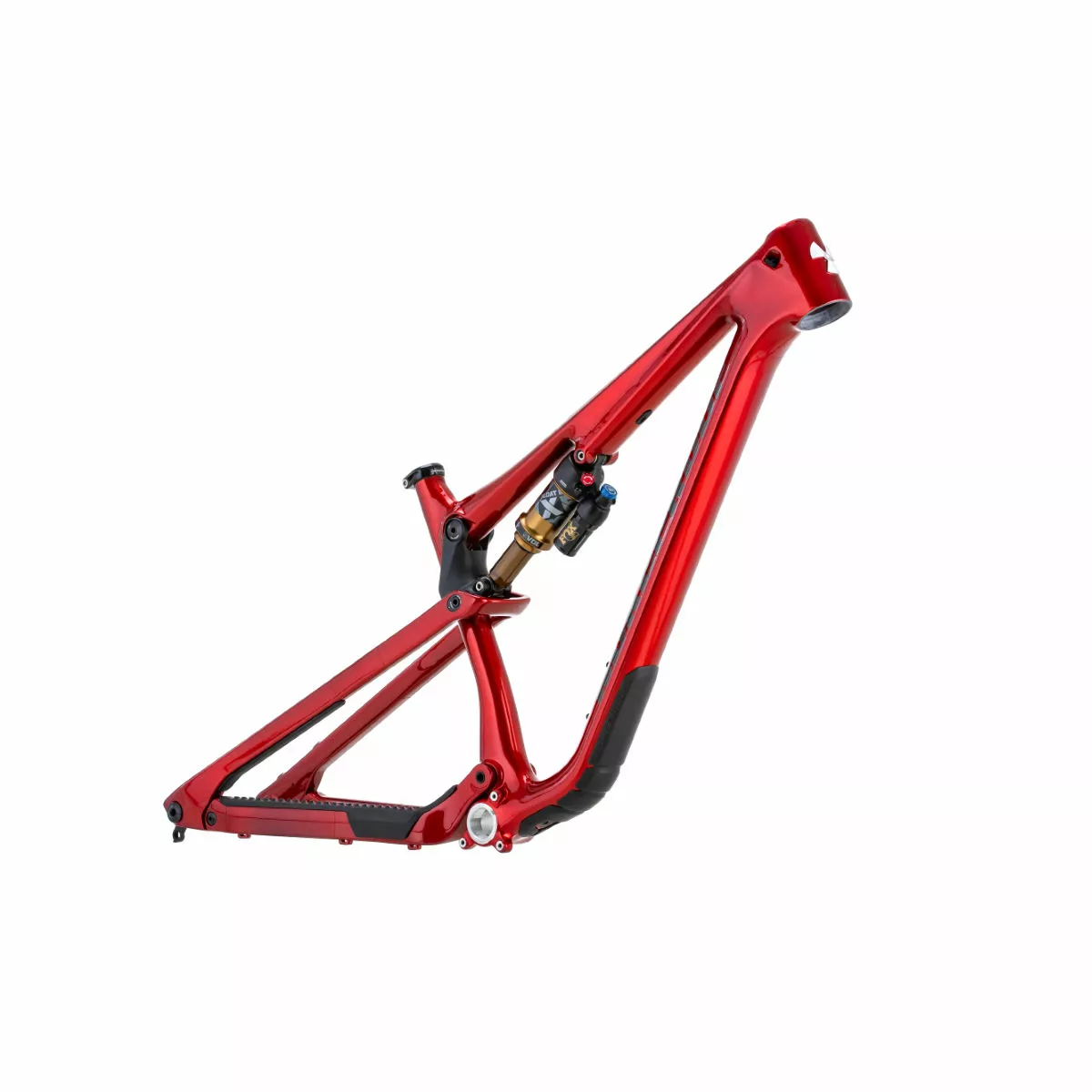

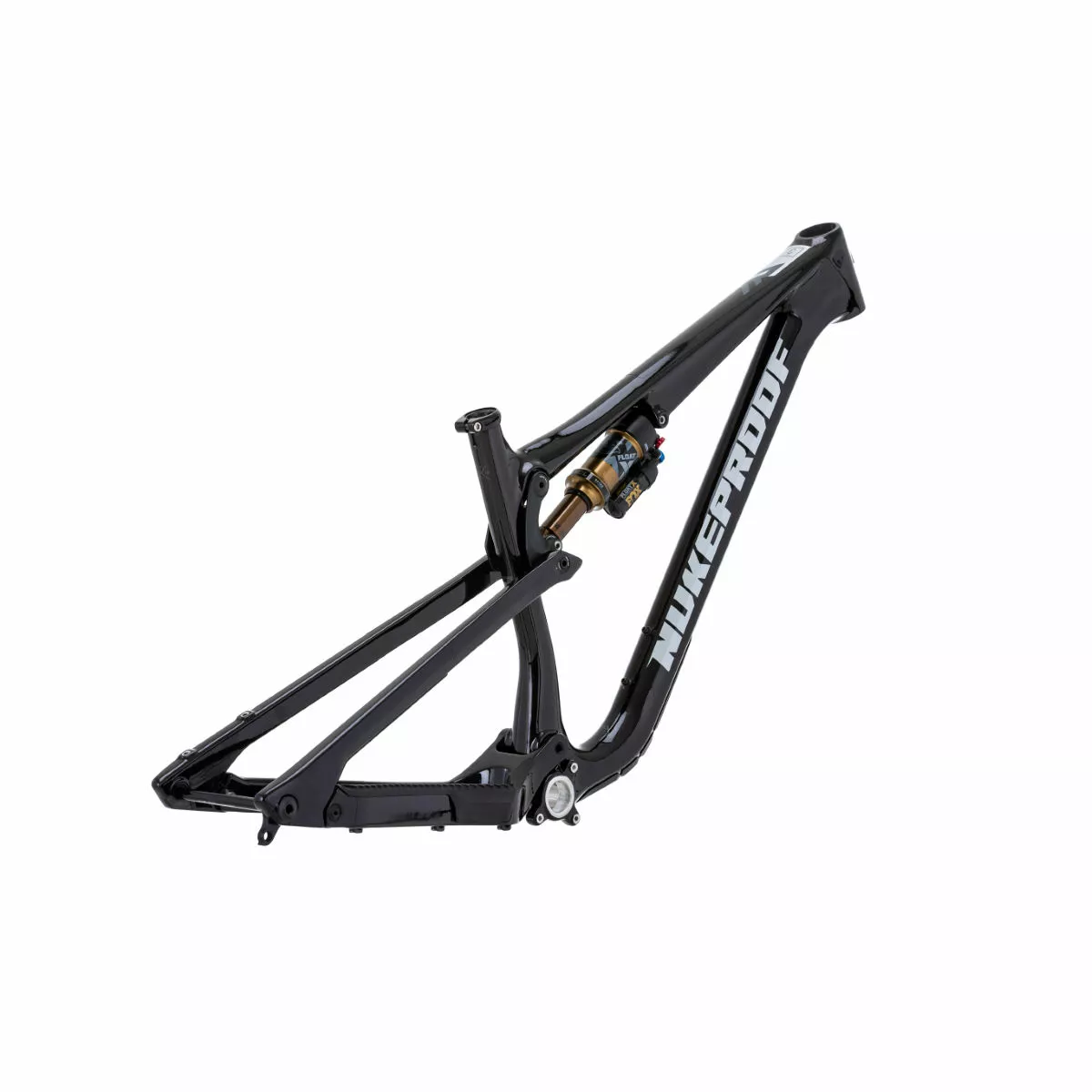

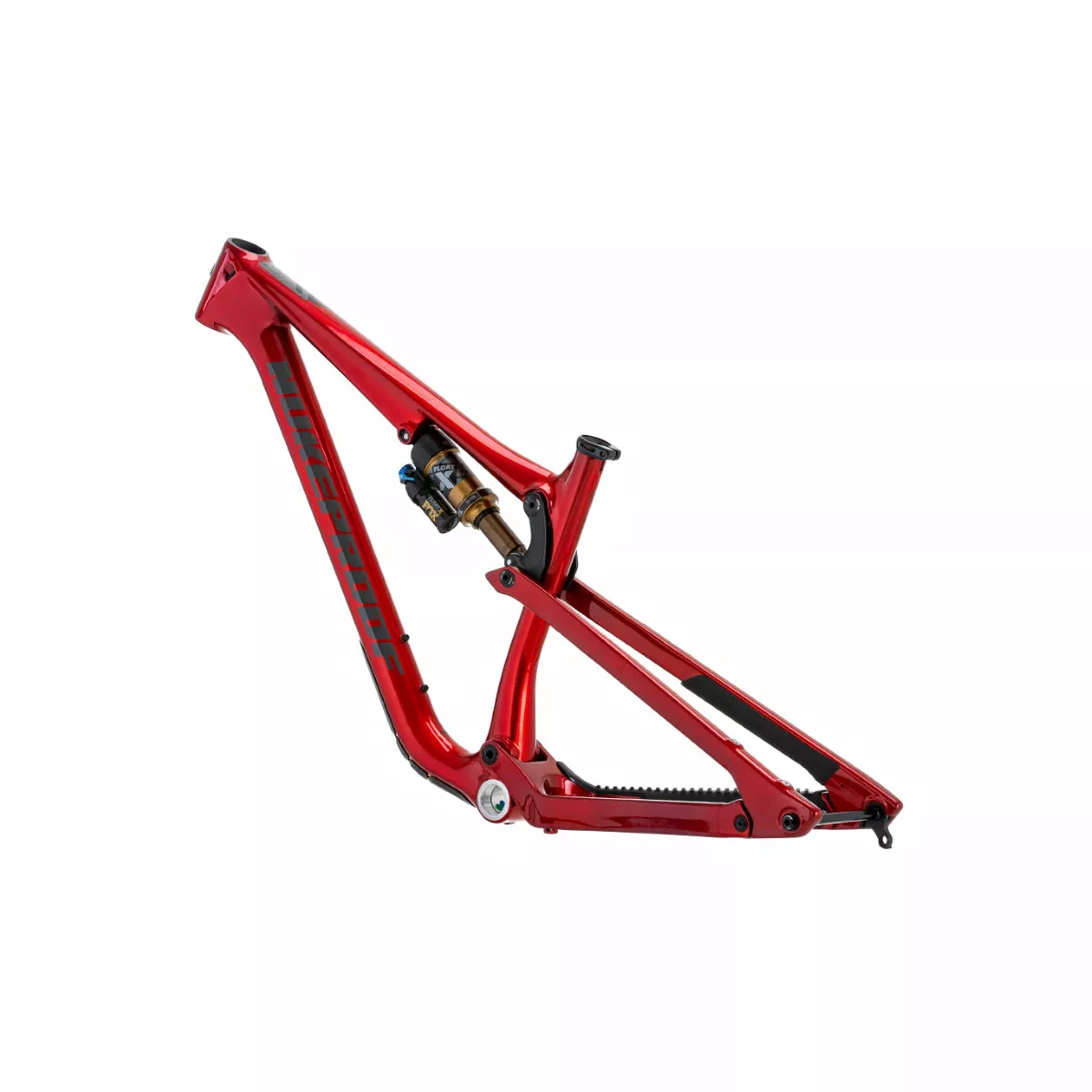

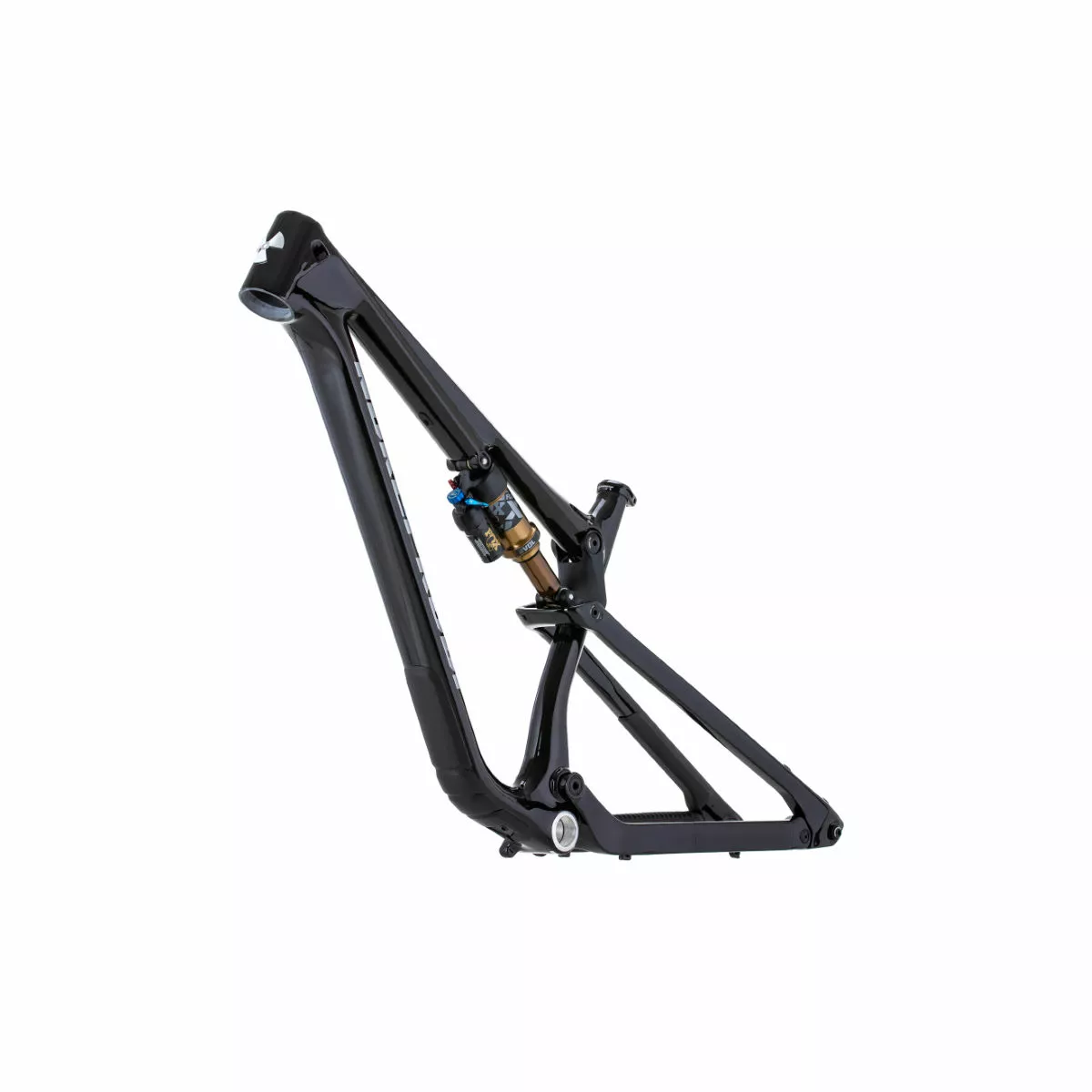

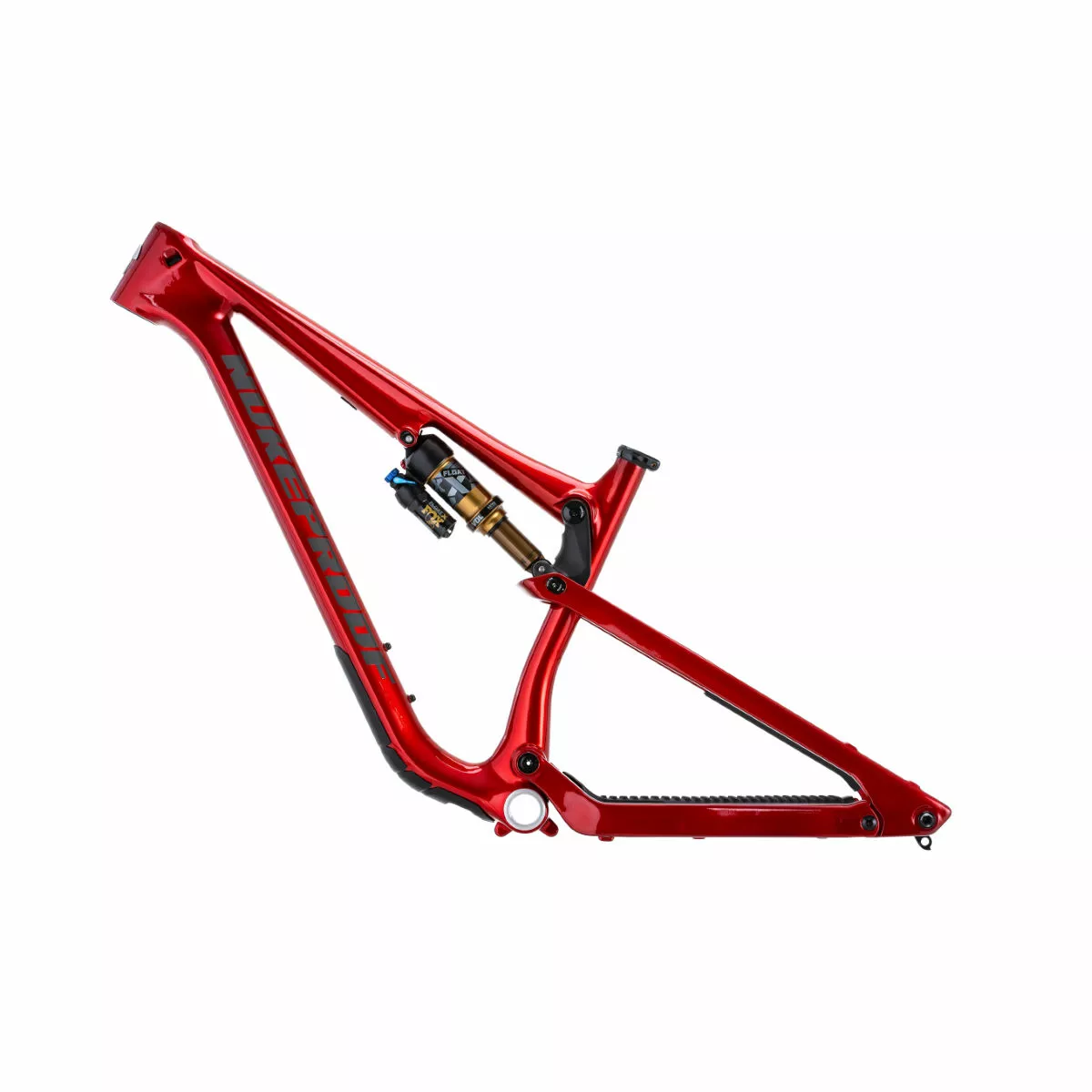

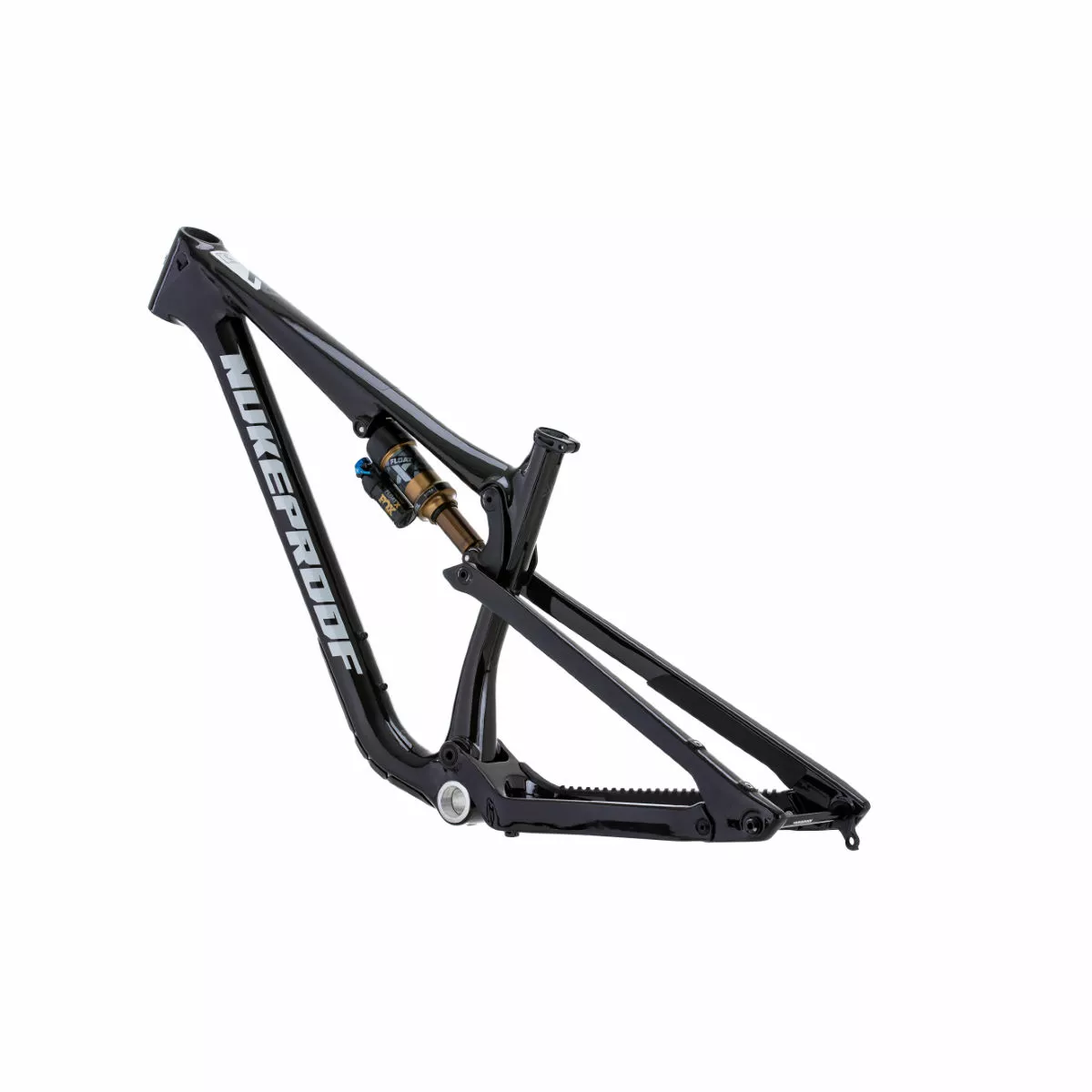

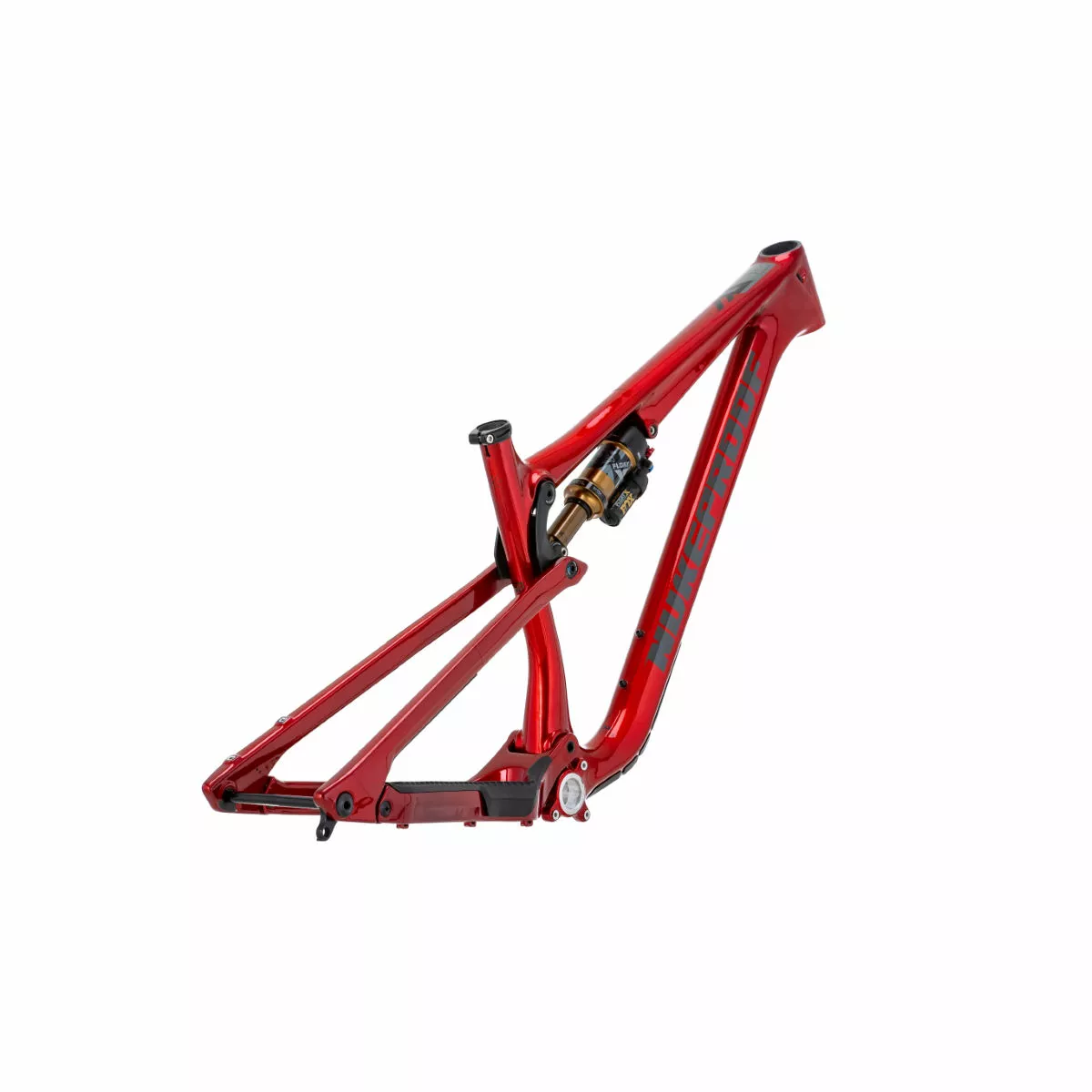

Nukeproof Reactor 290 Carbon Mountain Bike Frame

Featuring an ultra-strong T700/800 monocoque carbon fibre construction, this mountain bike (MTB) frame offers fantastic stiffness and durability without weighing down your ride with unnecessary excess grams. Nukeproof has also equipped it with a Factory Series Fox Float X rear shock for smooth and consistent rear end suspension performance, as you charge across rock gardens, tree roots and debris. Another highlight is its updated geometry with internal cable routing, which allows you to benefit from trail-ready handling and control with a clean, sleek finish. Coming complete with 148x12mm Boost rear hub spacing for increased stiffness and strength, this is a perfect choice of upgrade for completing your full suspension MTB bike build.

From concept through to design, the Kinematics, the geometry and specification; the Reactor is designed from the ground up to be the ultimate aggressive trail bike. It is at home on technical climbs, but happiest when thrashing the most technical trails you can point it at.

Full Suspension Carbon MTB Frame

To optimise the weight, strength and stiffness, the Reactor Carbon frame features a full UD woven carbon fibre frameset (Including chain and seat stays). It is available for 27.5” or 29” wheel sizes. These are two totally different, compromise free frames that were designed and developed at the same time. Each frame is simply tailored around each wheel size.

Speed or play: which do you value more? The manoeuvrability of 27.5” or the raw speed of a 29”?

Adjustable Geometry

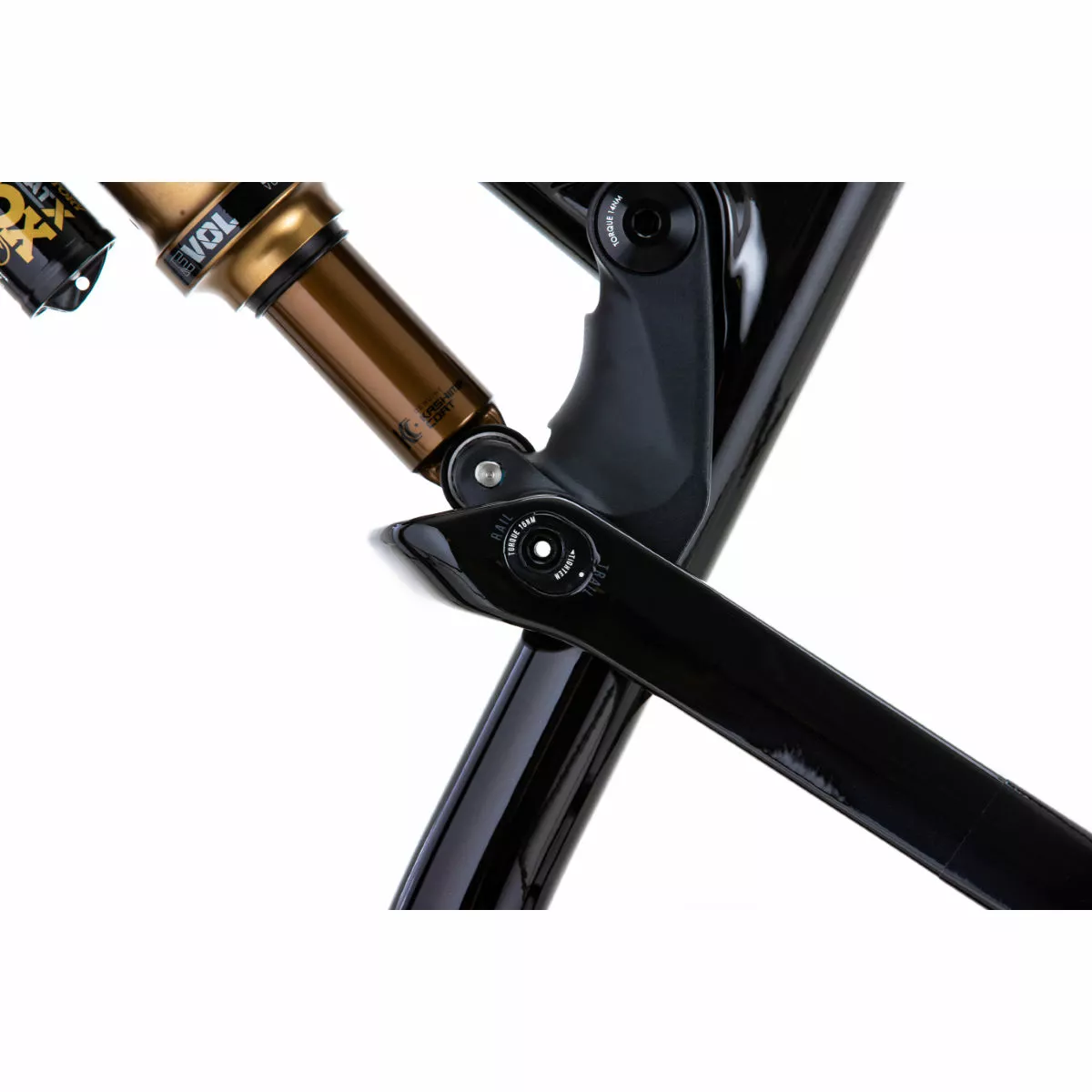

All Reactor frames feature a “flip chip” to adjust the geometry from “Trail” to “Rail mode”.

Trail – As the name suggests, this setting is best suited for trail riding. It is for riders who get as much enjoyment from the climb as the descents.

Rail – The Rail setting turns the Reactor into a corner shredder, dropping the bottom bracket 6mm and slackening the head angle by half a degree. It is there to maximise the descending capabilities.

Suspension Design

To ensure the bike could climb as well as it descends, Nukeproof designed the four bar horst linkage to have higher levels of anti-squat for climbing gears but lower levels when you drop down the cassette. This means that the bike can behave itself on the climbs but when you get it up to speed, it turns into a trail hooligan. The combination of low anti-squat and progressive rate give ultimate small bump compliance (removes rough trail and root chatter) with good mid-stroke support for cornering/pumping and end stroke progression for aggressive riding. Balanced anti-rise figures allow the Reactor some squat when braking hard, maintaining rider position and providing a good amount of pressure through the tyre to ensure traction. The Reactor is designed to reward the rider and ensure you get that stoke factor in on any ride.

Features:

Material: Ultra Strong T700/800 Monocoque Carbon Fibre
Fork Travel: 150mm
Axle to Crown: 564mm
Fork Offset: 44mm
Rear Travel: 130mm
Wheels Size: 29″
Max Tyre Size: 2.6″
Recommended Shock Sag (Measured seated): 30%
Shock Size: 210x50mm
Shock Hardware F: 25x8mm
Shock Hardware R: 30x8mm
Sizing Options: M/L/XL

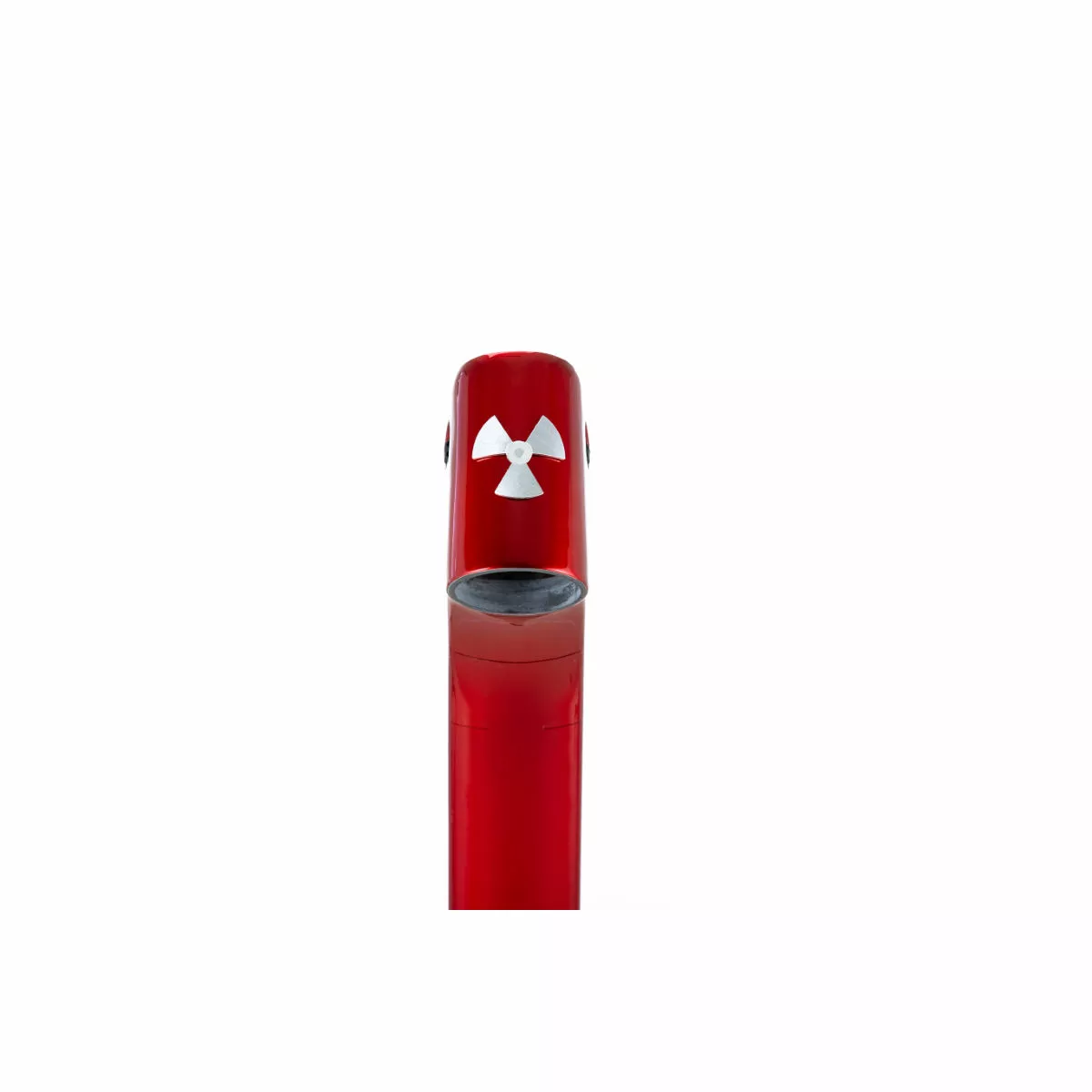

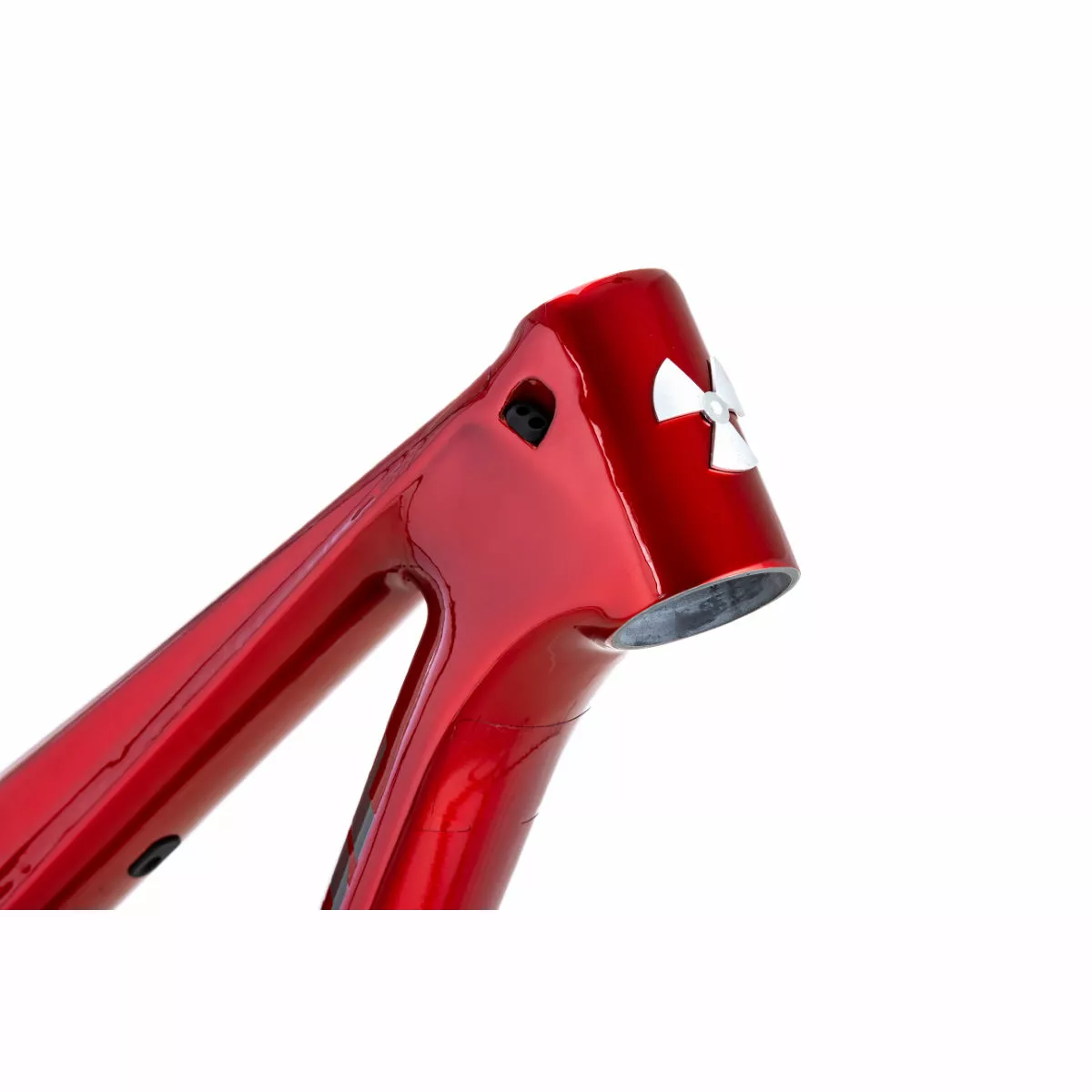

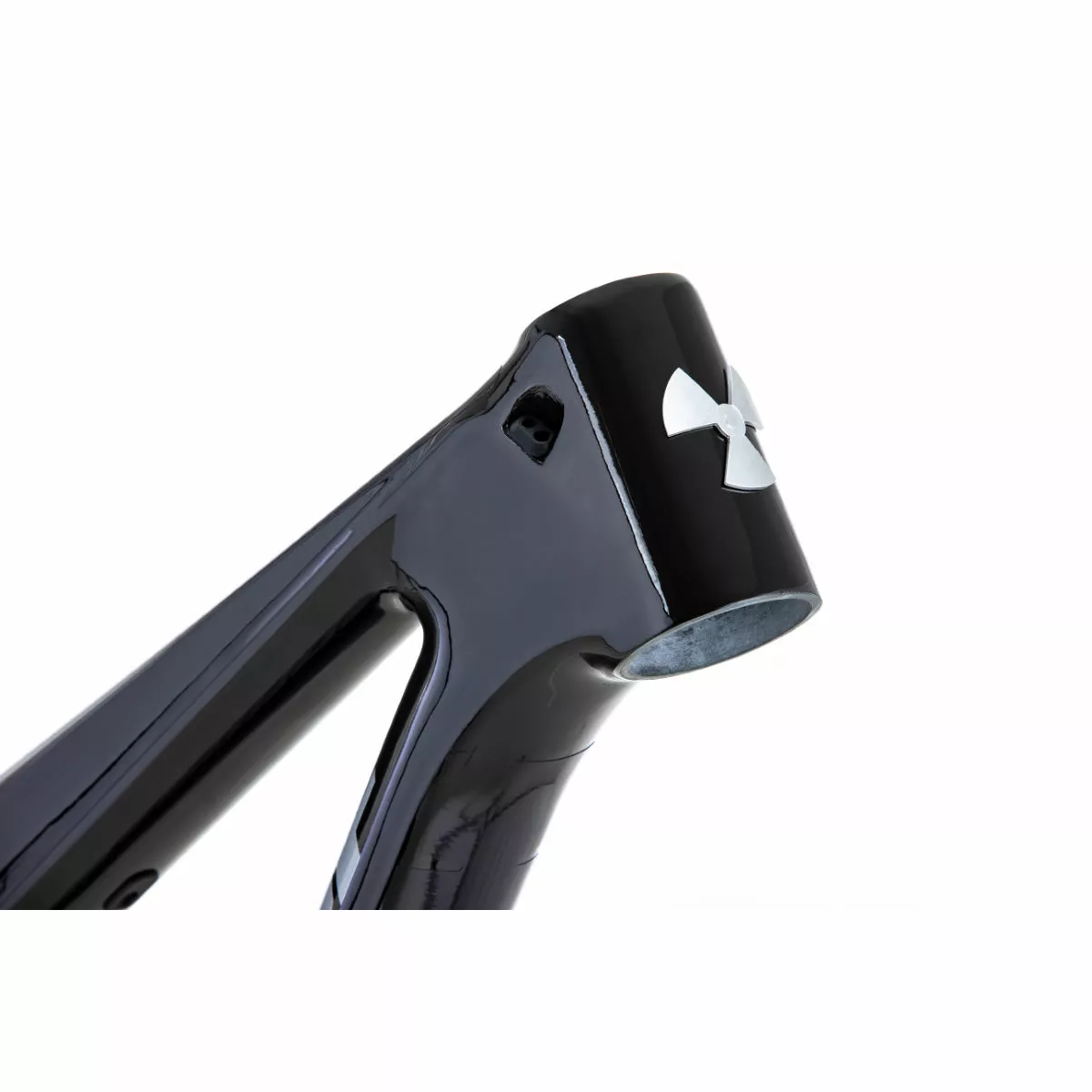

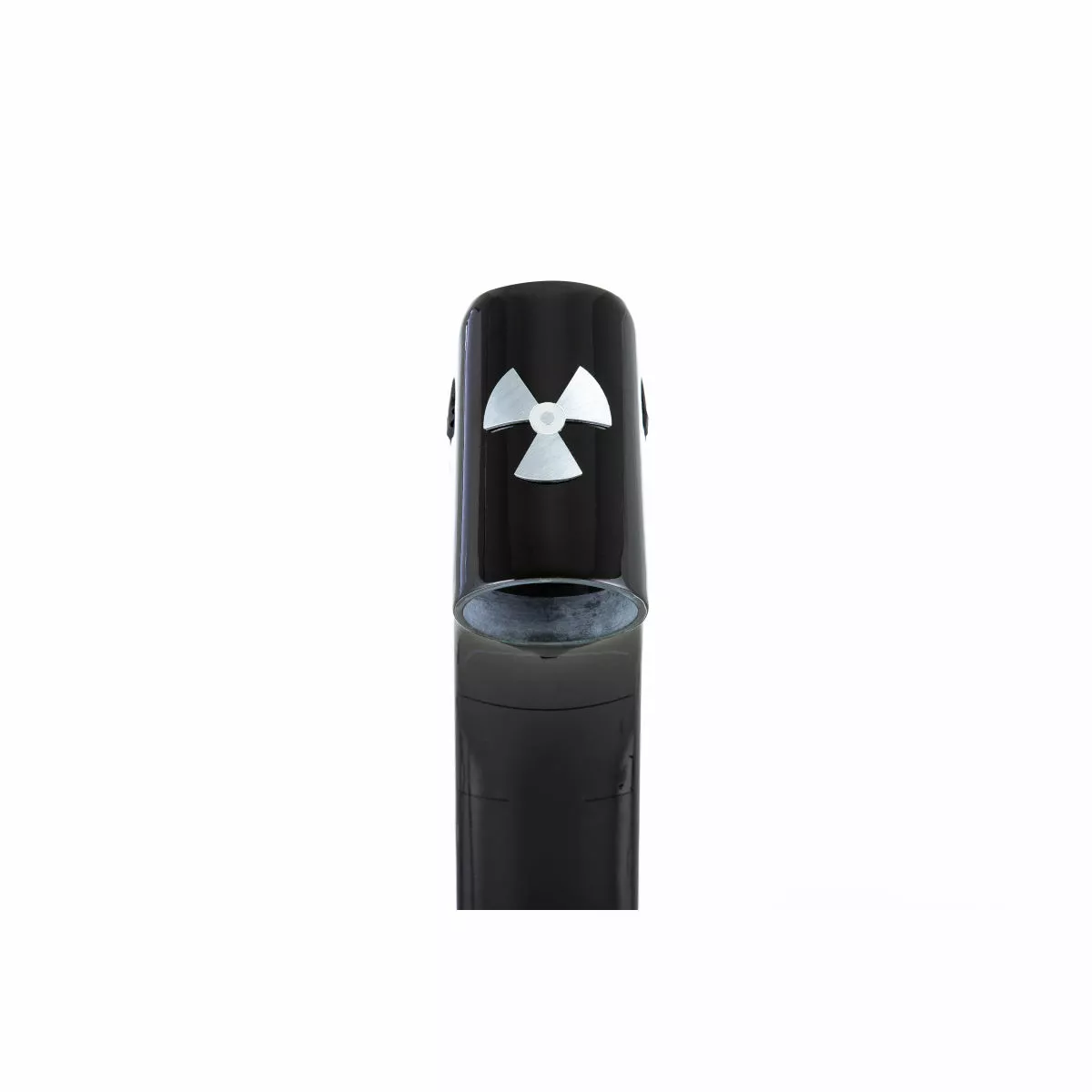

Headtube: 44-56mm Tapered Semi-Integrated
Headset: ZS44-28.6 – T2 / ZS56/40 – B8
Bearings Required: 2x (6902 2RS), 4x (6800 2RS), 4x (6901 2RS)

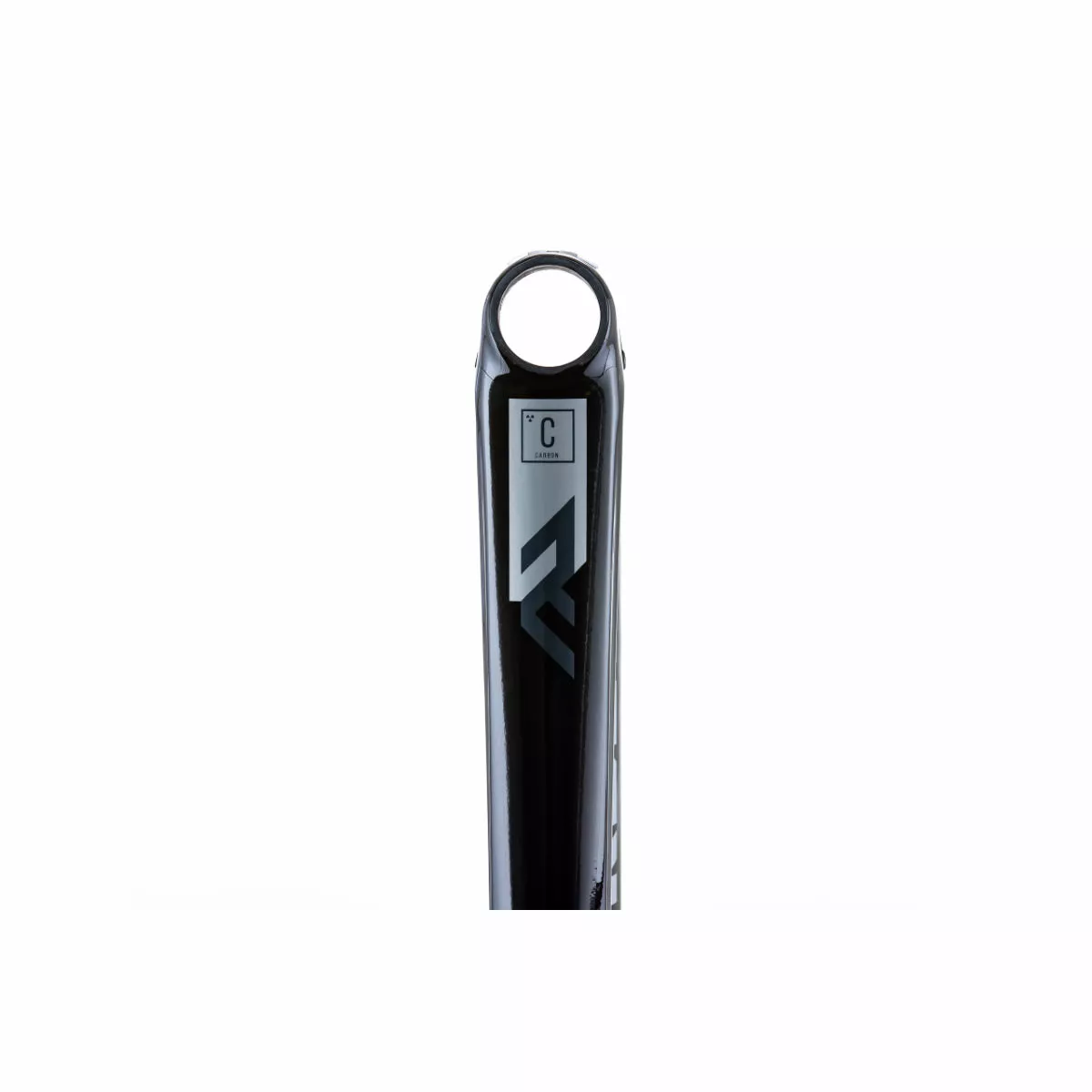

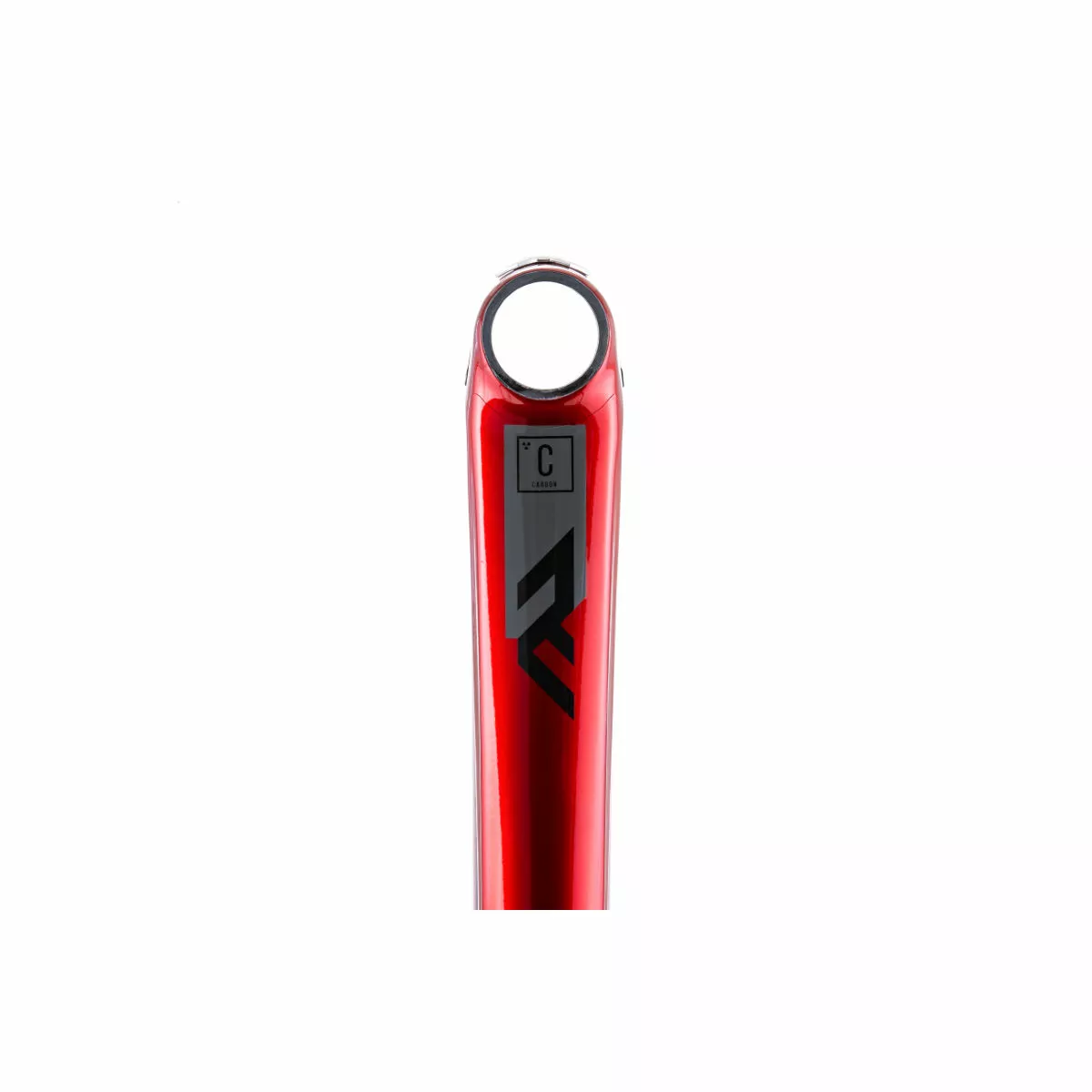

Seatpost: 31.6mm (Internal Routing for Dropper Seatpost)
Seat Clamp: 36.4mm

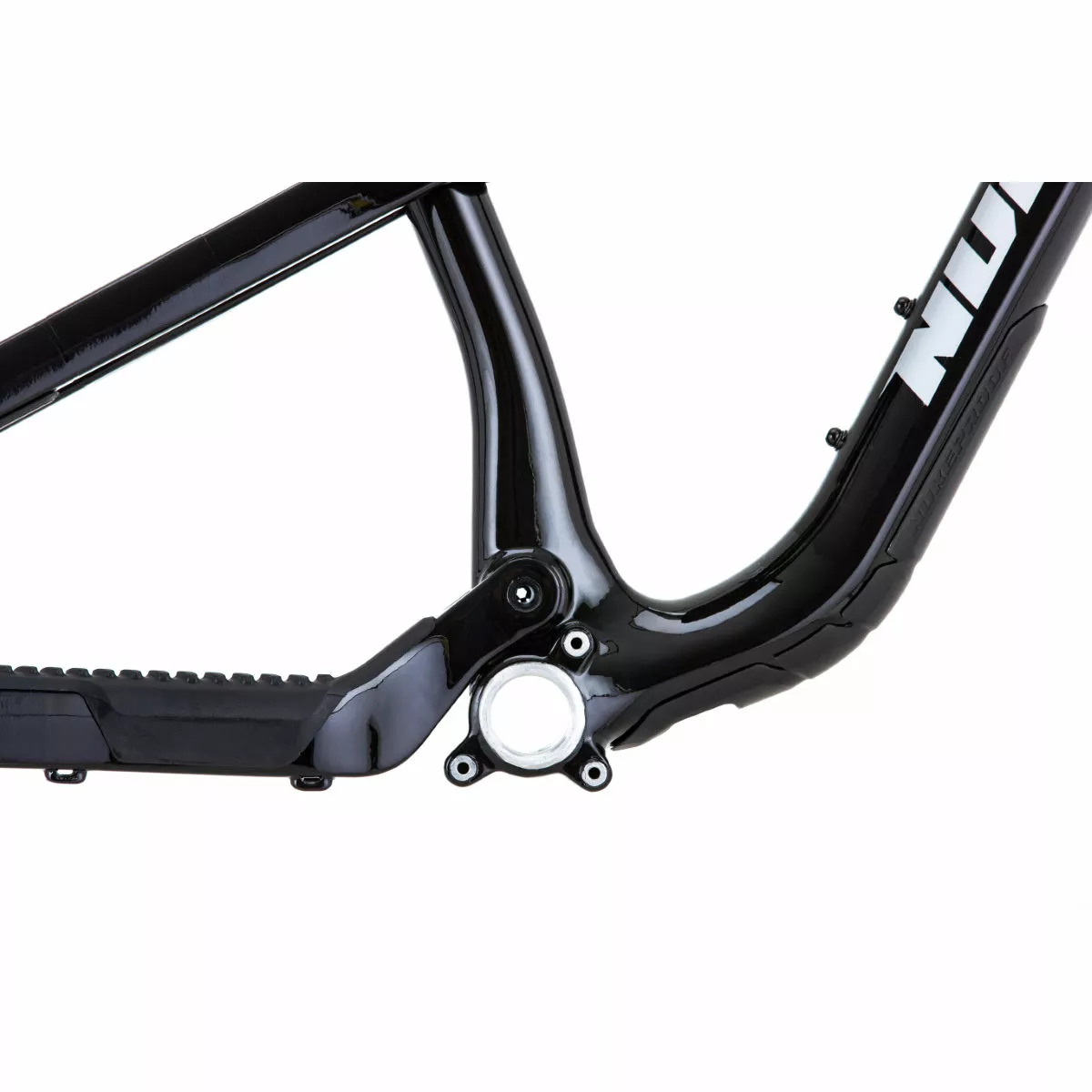

Bottom Bracket: Threaded 73mm BSA
Rear Hub: Boost 148x12mm
Rear Axle: SRAM Maxle Stealth M12x1.75 180mm (Thread Length 20mm)
Chain Guide: ISCG05
Brake Mount: 180mm Direct Post

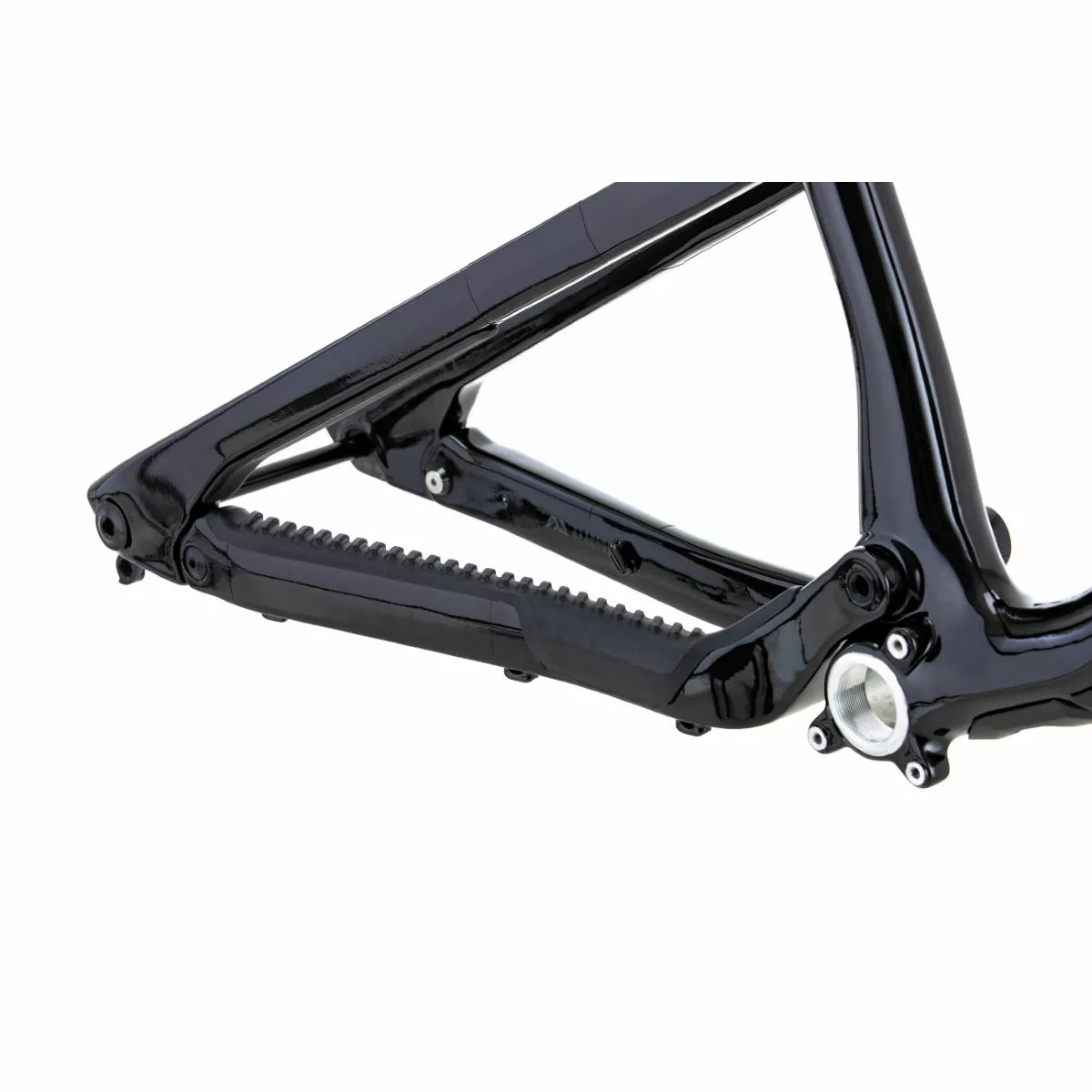

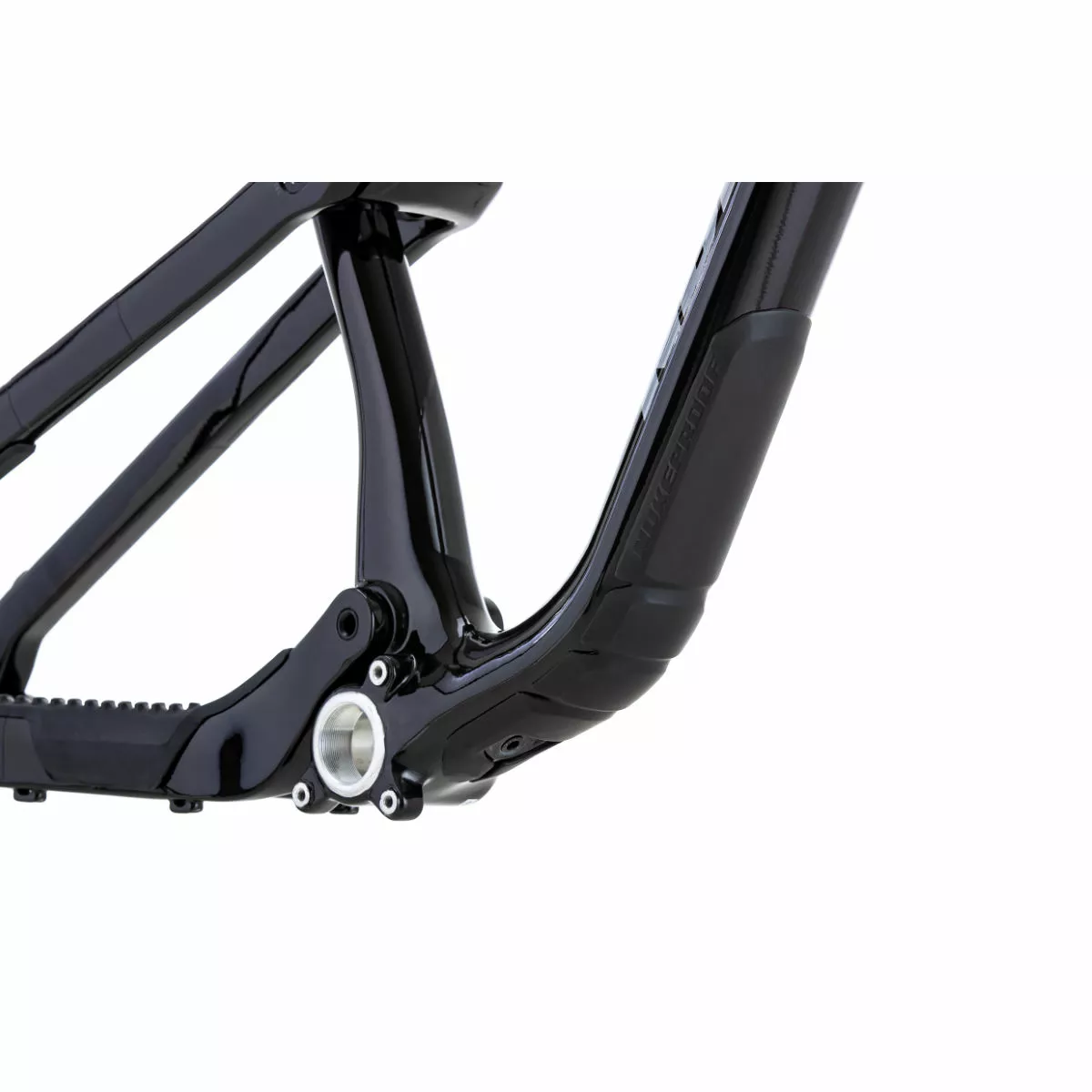

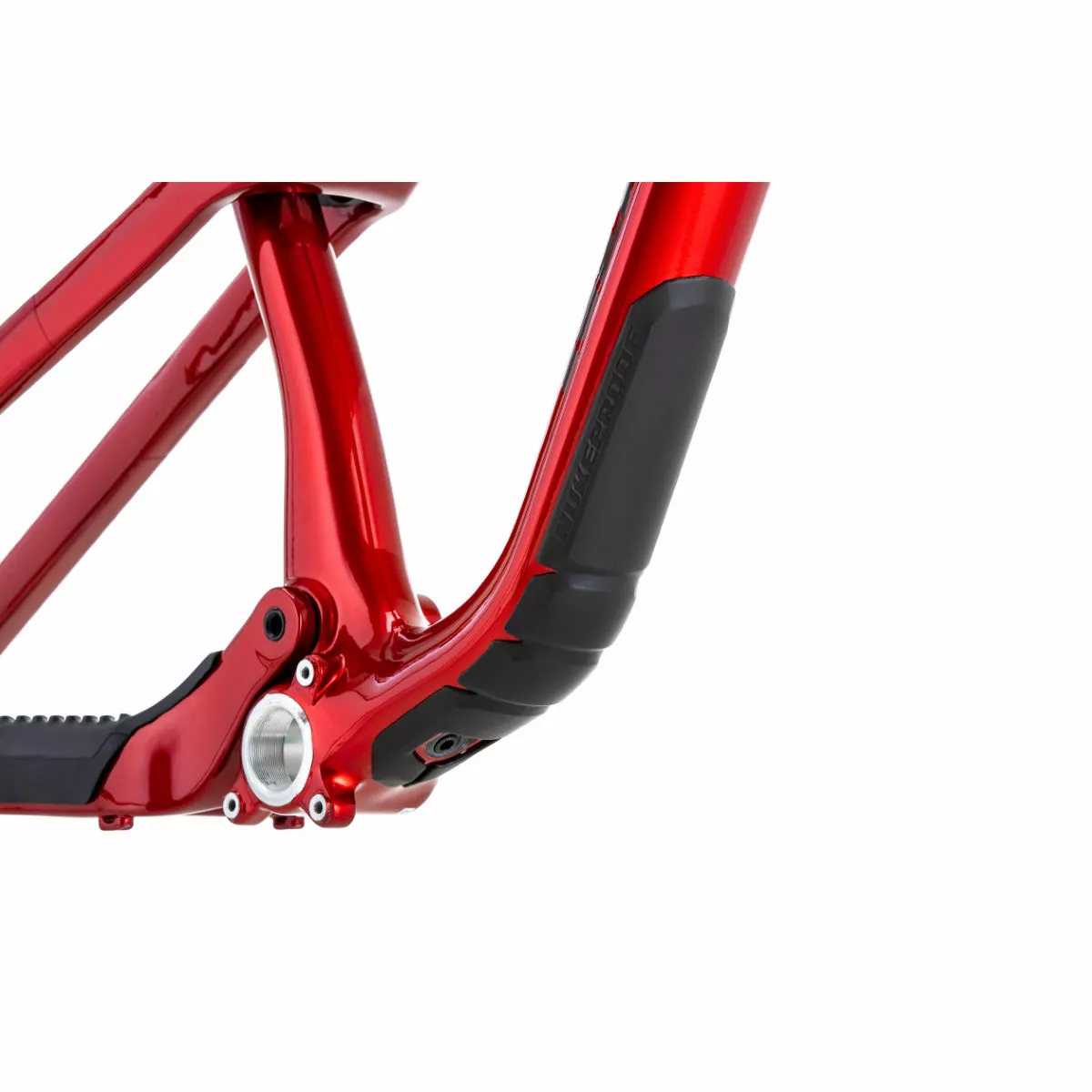

Protection: 3D Contoured Rubber Frame Protection for DT/SS/CS

Specifications:

Frame: Nukeproof Reactor 290 Carbon, 130mm Travel, UD woven Carbon Fibre frame
Internal cable routing
ISCG05 mount
Enduro bearings
Threaded 73mm BB
Boost 148mm rear axle spacing
3D contoured Rubber frame protection
Two-position adjustable Flip chip system

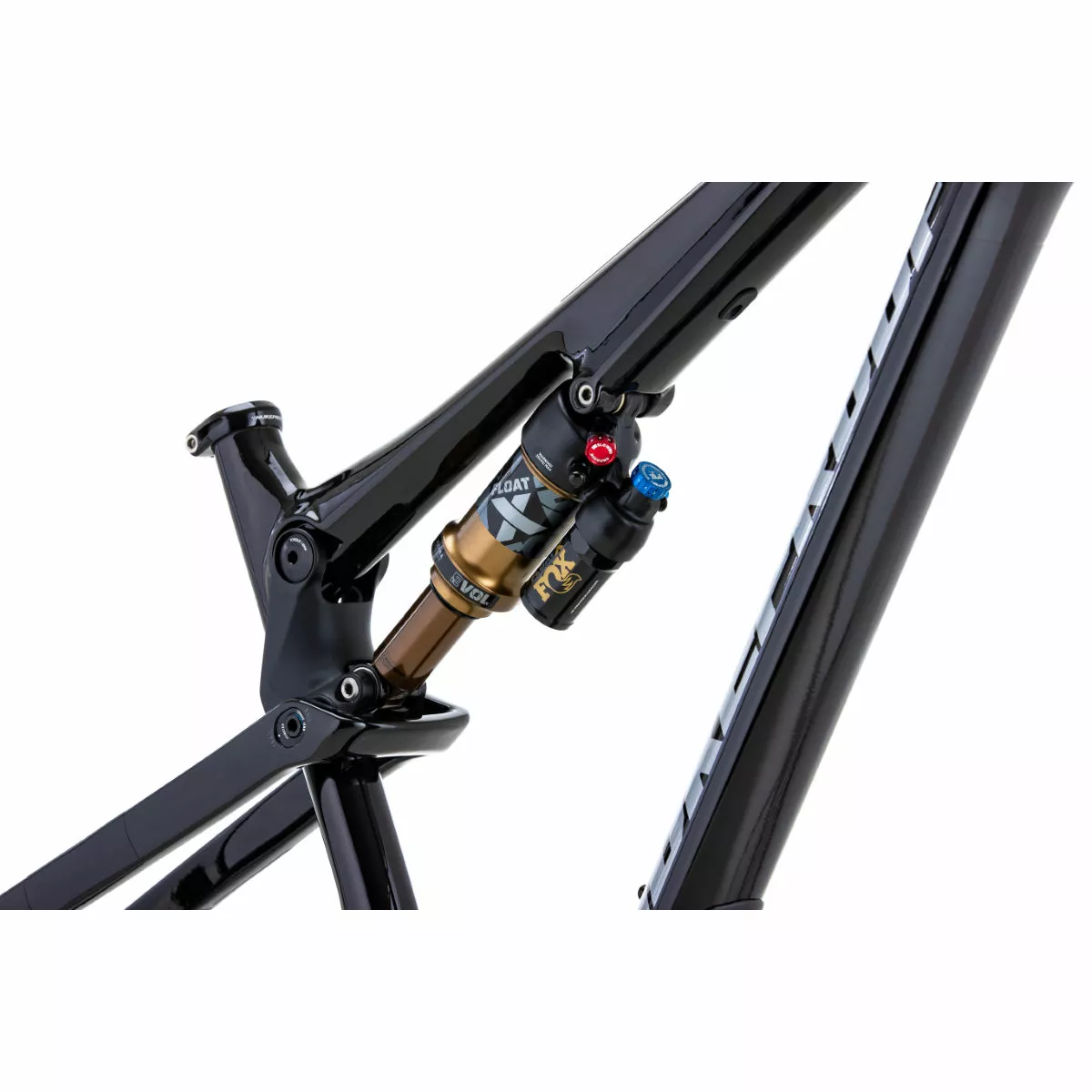

Shock: Fox Float X, Factory Series, Kashima, 3 Position, EVOL LV, Custom CM+, RM, Rezi LM tune, 210x55mm, Bearing End, 1x 0.2 spacer fitted
Headset: Nukeproof, 44-56 IITS
Weight: 3.5Kgs/7.7lbs (Medium option)
