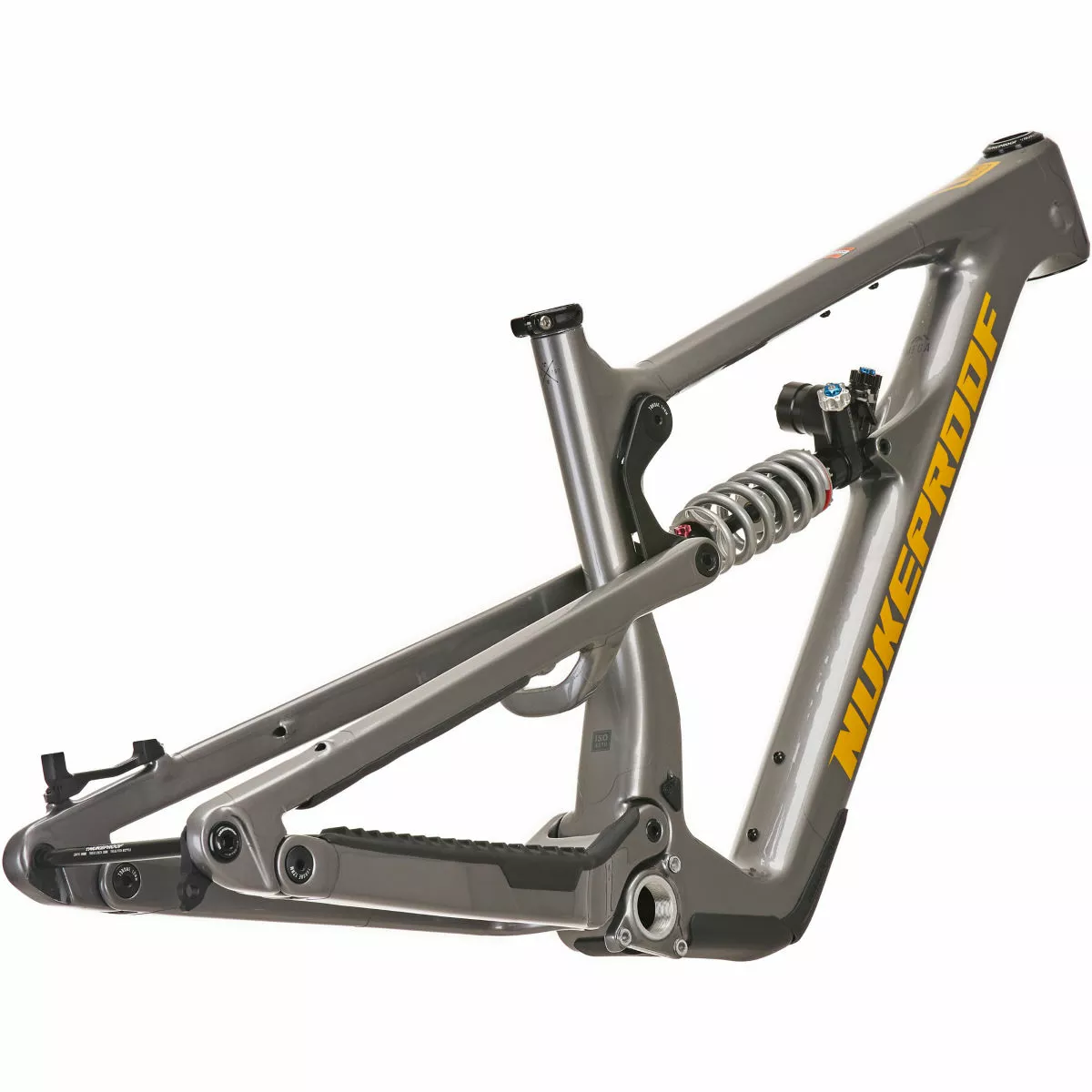

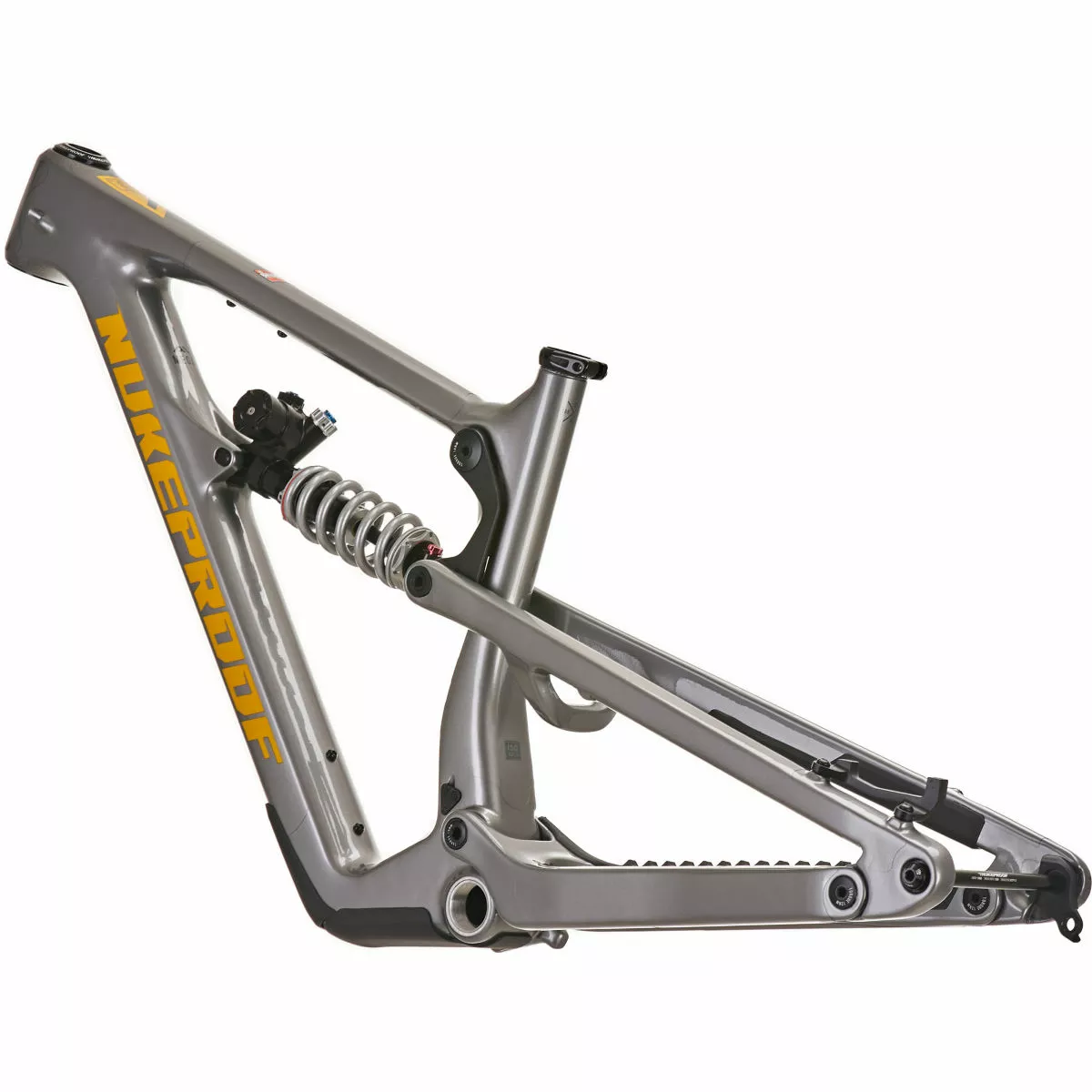

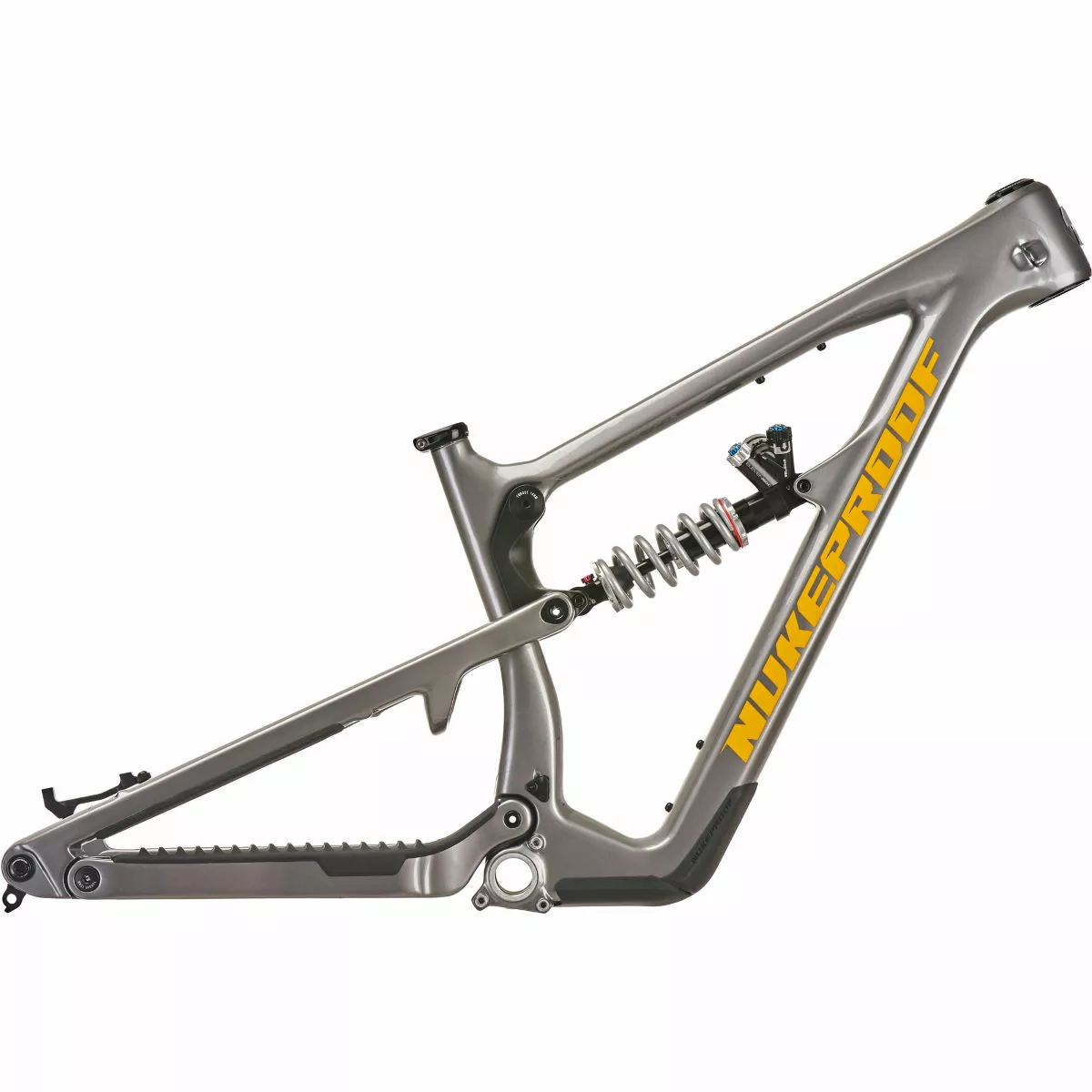

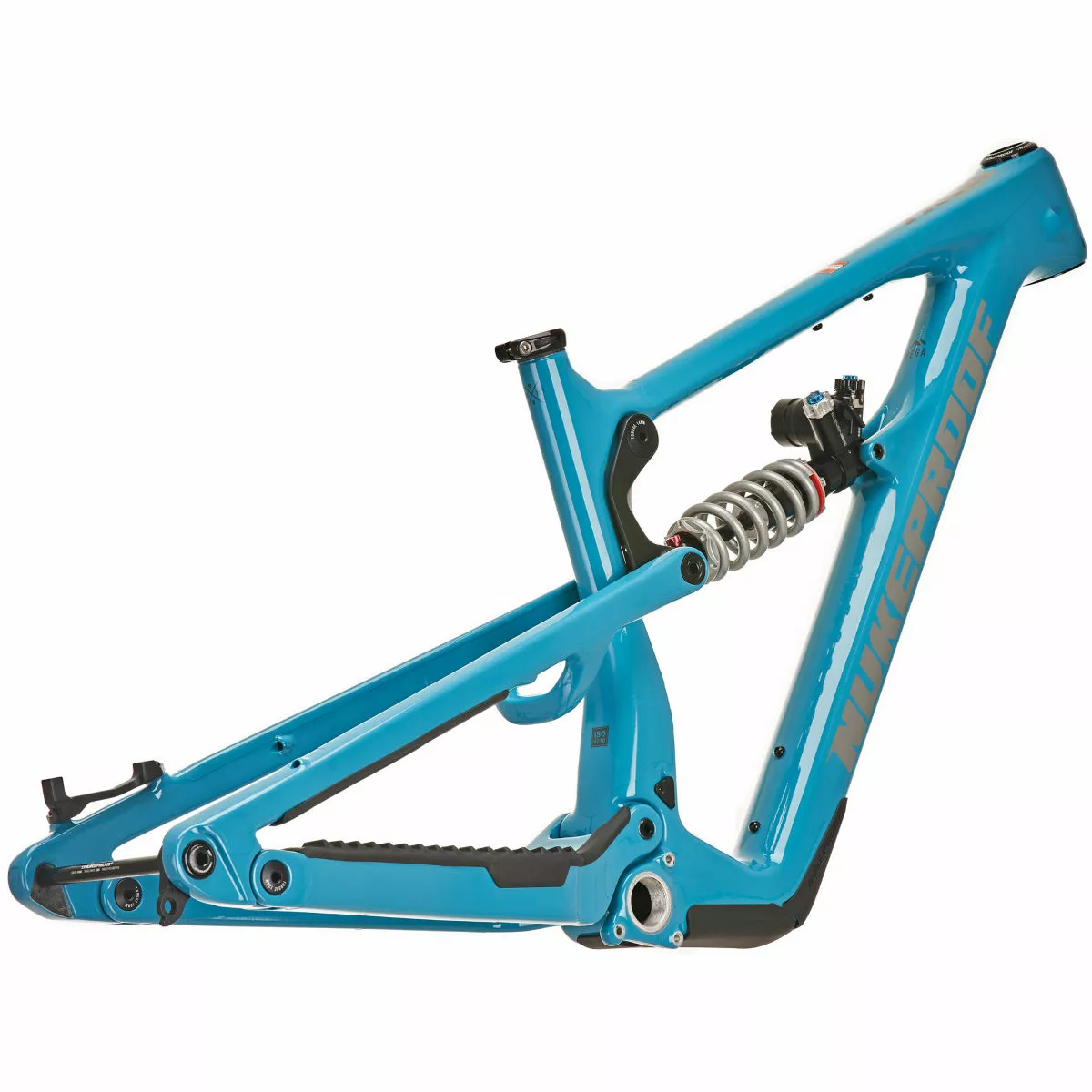

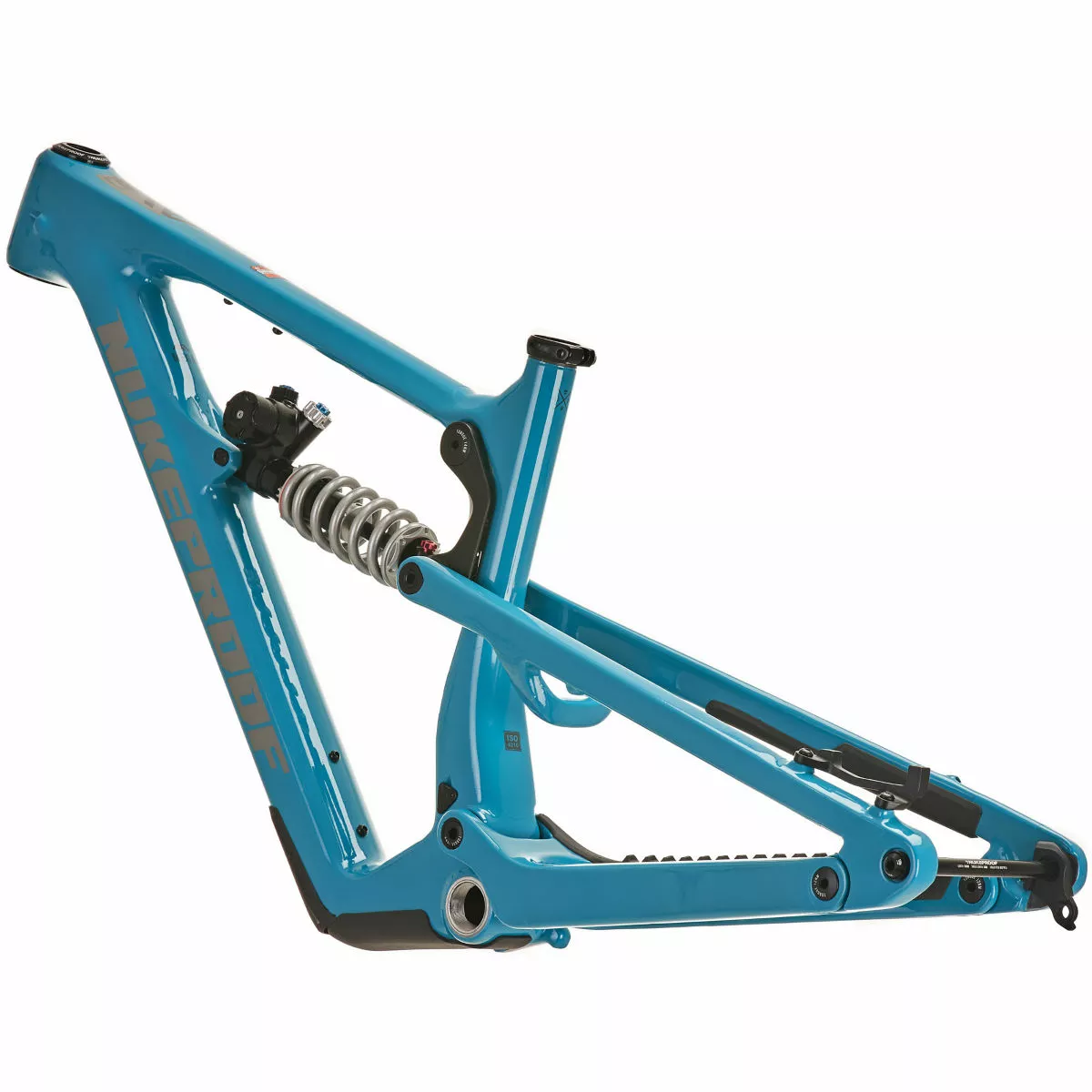

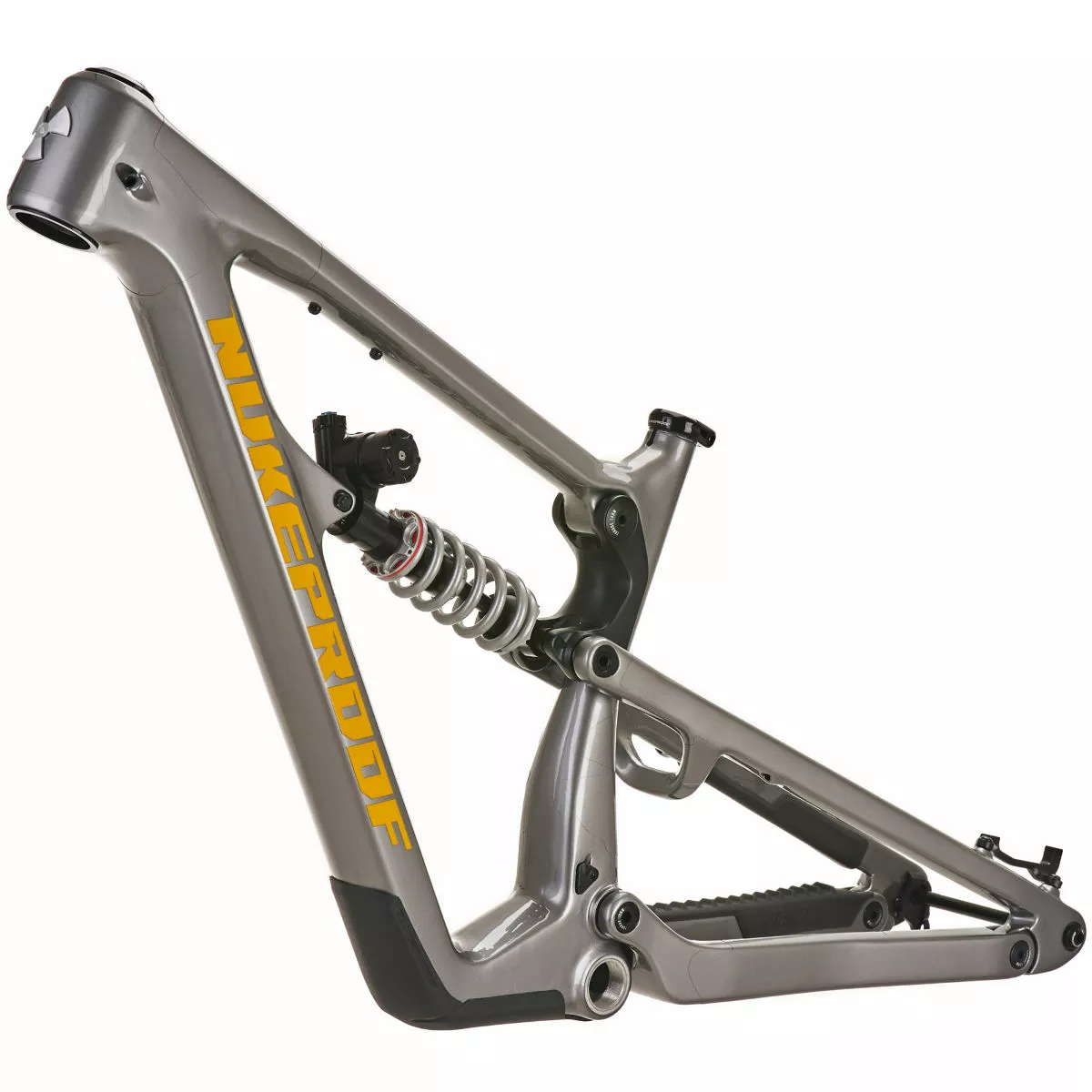

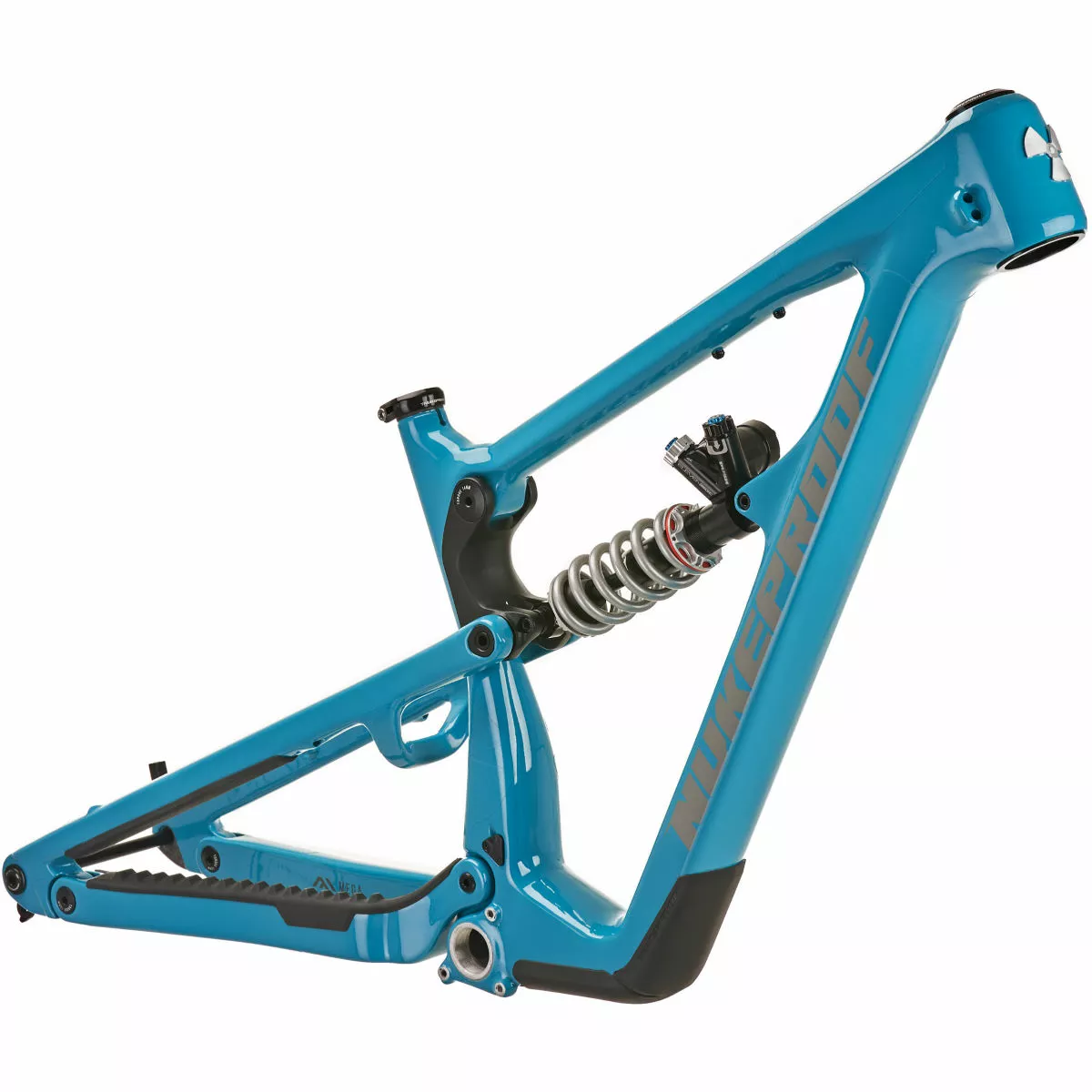

Nukeproof Mega 297 Carbon Mountain Bike Frame (Push Shock)

With its carbon fibre construction equipped with a Push Industries Elevensix rear shock, the Mega 297 Carbon Push frame offers the best balance of stiffness, strength and low-weight performance for enduro racing and intense trail riding.

Ideal for speeding across unpredictable terrain, loose and wet conditions and steep technical climbs and descents, trail-smoothing performance from the Elevensix rear shock offers increased tuneability, smoothness and control. Another highlight is its enduro-optimised race-ready geometry with improved suspension kinematics and internally piped cable routing, making it ideal for handling the demands of enduro racing while also providing a clean, sleek and stylish finish.

The Nukeproof Mega has been Nukeproof’s best-selling model for over 12 years. The Mega has been racking up awards on enduro stages and in the press around the world. With four Enduro World Series (EWS) titles to its name, the Nukeproof Mega has become an icon synonymous with enduro racing.

Since 2009, the Nukeproof Mega has been in constant development to meet the demands of Nukeproof riders and customers alike. As a result, the Mega Carbon V4 frame is available for 27.5”, 29” or new Mixed (Front 29”/Rear 27.5” wheel sizes) wheel setups, with each frame design tailored around each wheel size.

Full Suspension Carbon Fibre Enduro Race Frame

Engineered for optimised frame weight, strength and stiffness, the Mega Carbon frame features a T700/800 UD woven carbon fibre frameset (Front and rear Triangle). The carbon swingarms help reduce the unsprung weight at the rear of the bike – this helps improve suspension performance. All forged parts are made from 6061-T6 aluminium.

After winning four Enduro World Series Titles in three years, the V4 design is an evolution of Nukeproof’s ultimate enduro bike. At the heart of the frame is the brand’s revised suspension Kinematic, designed to be more subtle off the top, whilst remaining progressive and predictable. Anti-Squat is used to create an efficient pedalling bike that can be thrashed through technical terrain. The useable SAG range is also widened to allow riders to tune the suspension to the trails.

Key Features:

All-new UD Carbon chassis
Improved suspension kinematics
Tube-In-Tube design for easy cable installation
All-new geometry
Optimised sizing/fit – Small to Large
SRAM UDH
Room for a 750ml water bottle inside the main front triangle

The updated Mega frame geometry features dynamic saddle offset designed to optimise seated rider weight distribution on each frame size. This dynamic saddle offset means that each frame size has a bespoke seast angle. In addition, the actual seat tube is shorter overall and offers a deeper maximum insert depth that allows a longer dropper post if required.

You can find a document here that will help you get your Push Elevensix shock setup, and ready to ride.

Features:

Material: Nukeproof Mega V4 297 Carbon, 165mm Travel, ultra-strong monocoque UD Carbon Fibre
Use: Enduro, All-Mountain, Trail

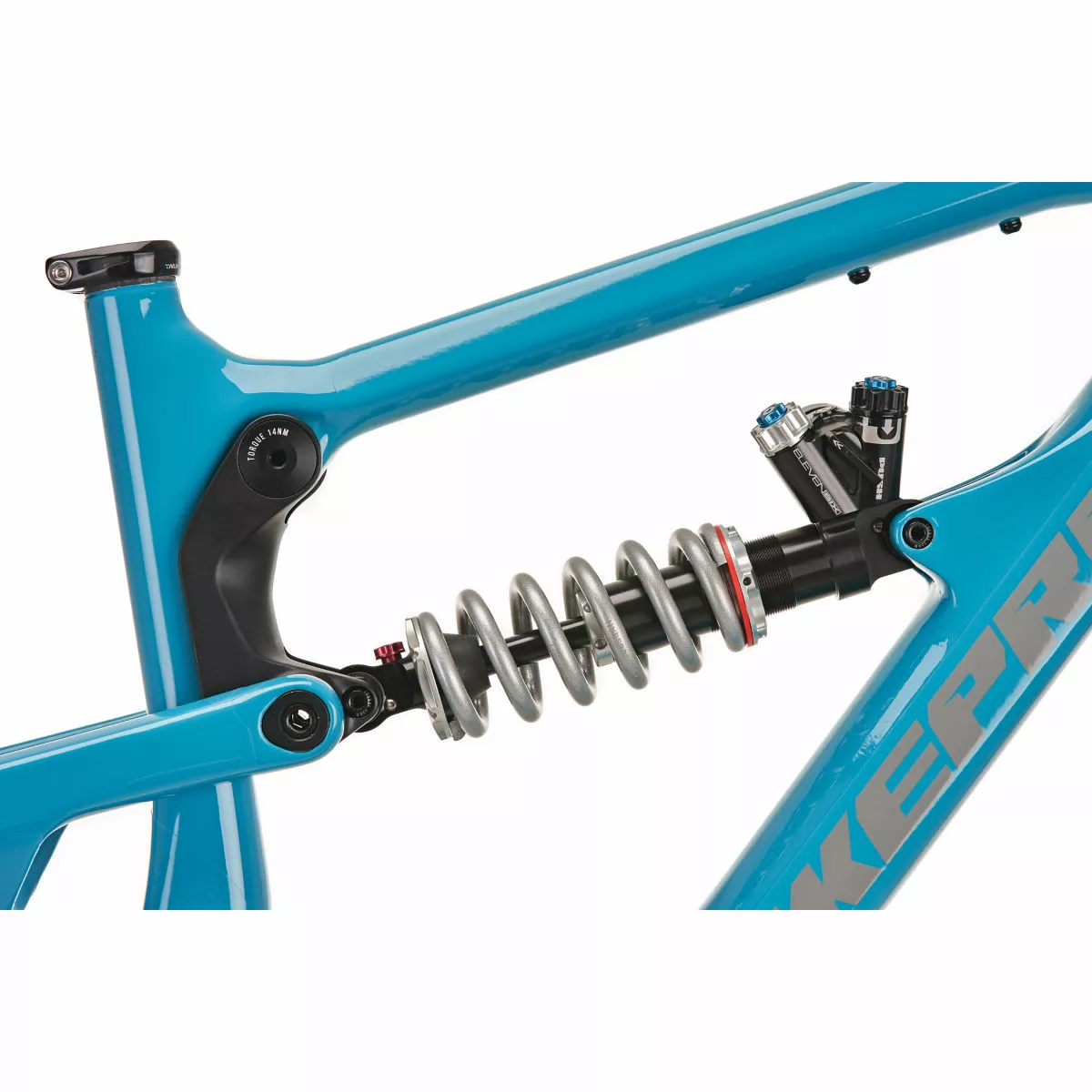

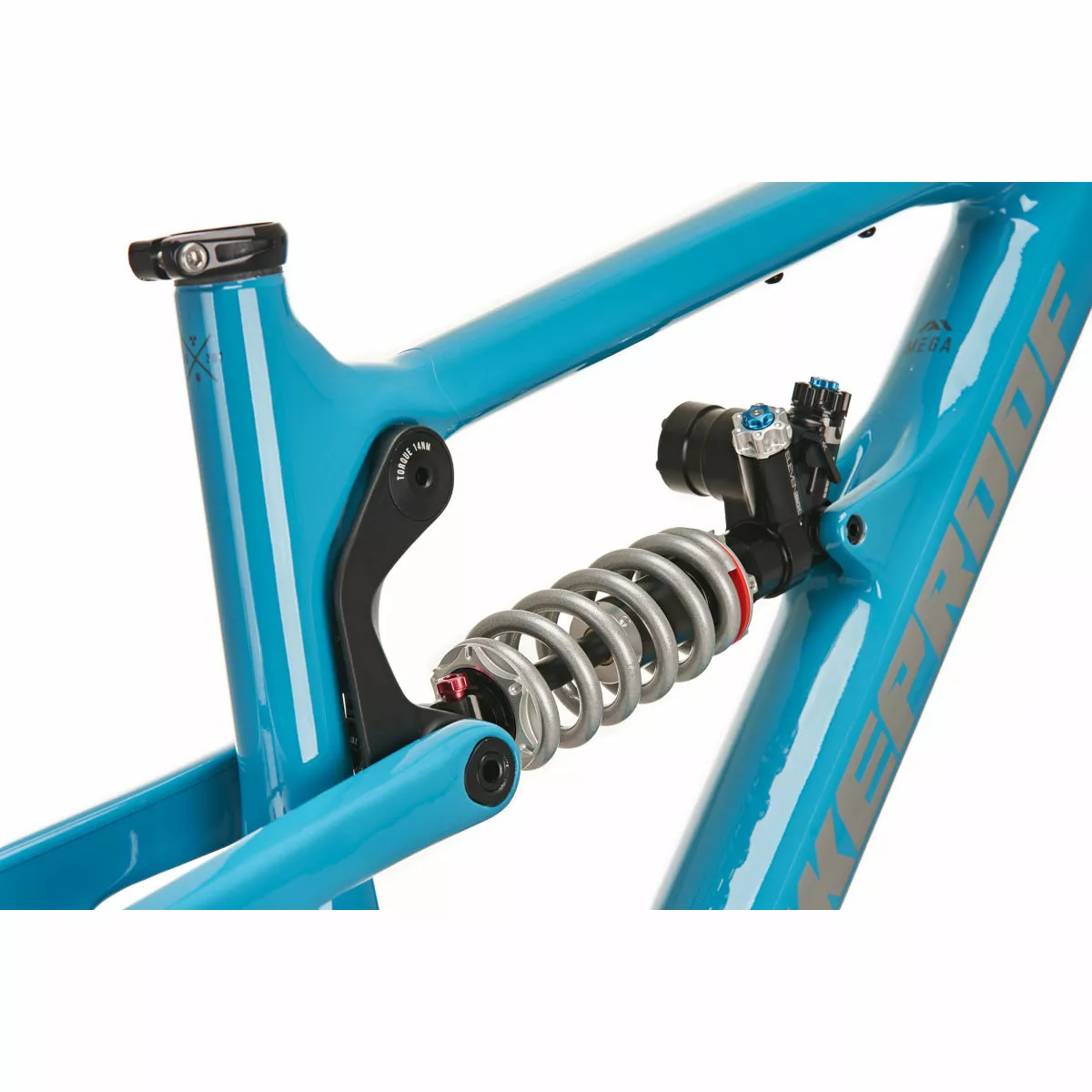

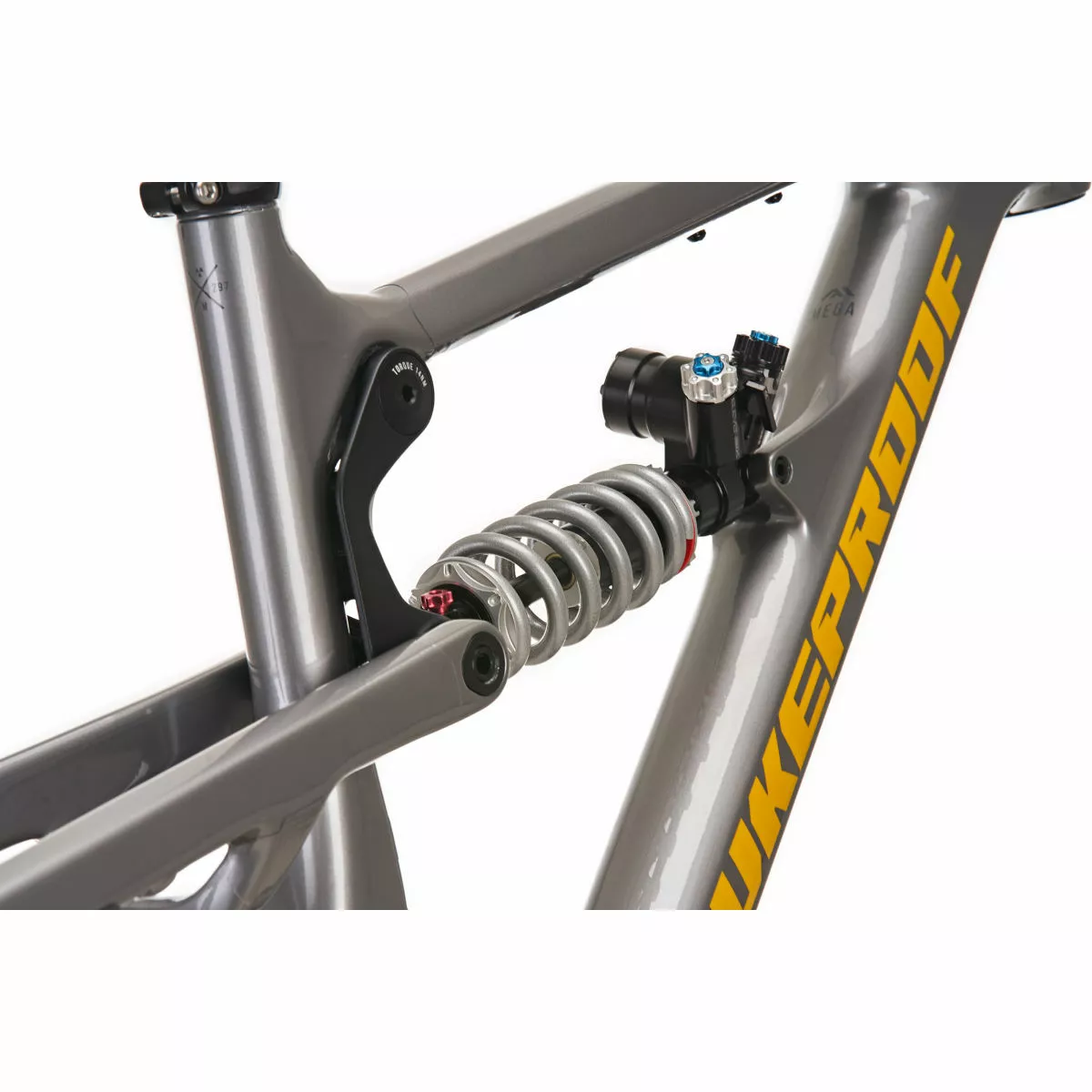

Shock: Push Elevensix coil, High-Volume Low-Pressure Reservoir System, external low-speed compression adjustment, external high-speed compression adjustment, external low-speed rebound adjustment, Ultralight Hybrid Hypercoil progressive spring system, Four-port symmetrical Progressive Damping Piston, Independent Hydraulic Bottom Out Piston
Fork Travel: 170mm
Axle to Crown: 582mm
Fork Offset: 42mm
Rear Travel: 165mm
Wheels Size: Front 29”/Rear 27.5″
Max Tyre Size: 2.6″
Recommended Shock Sag (Measured seated): 30%
Shock Size: 230×62.5mm
Shock Hardware F: 25x8mm
Shock Hardware R: 30x8mm

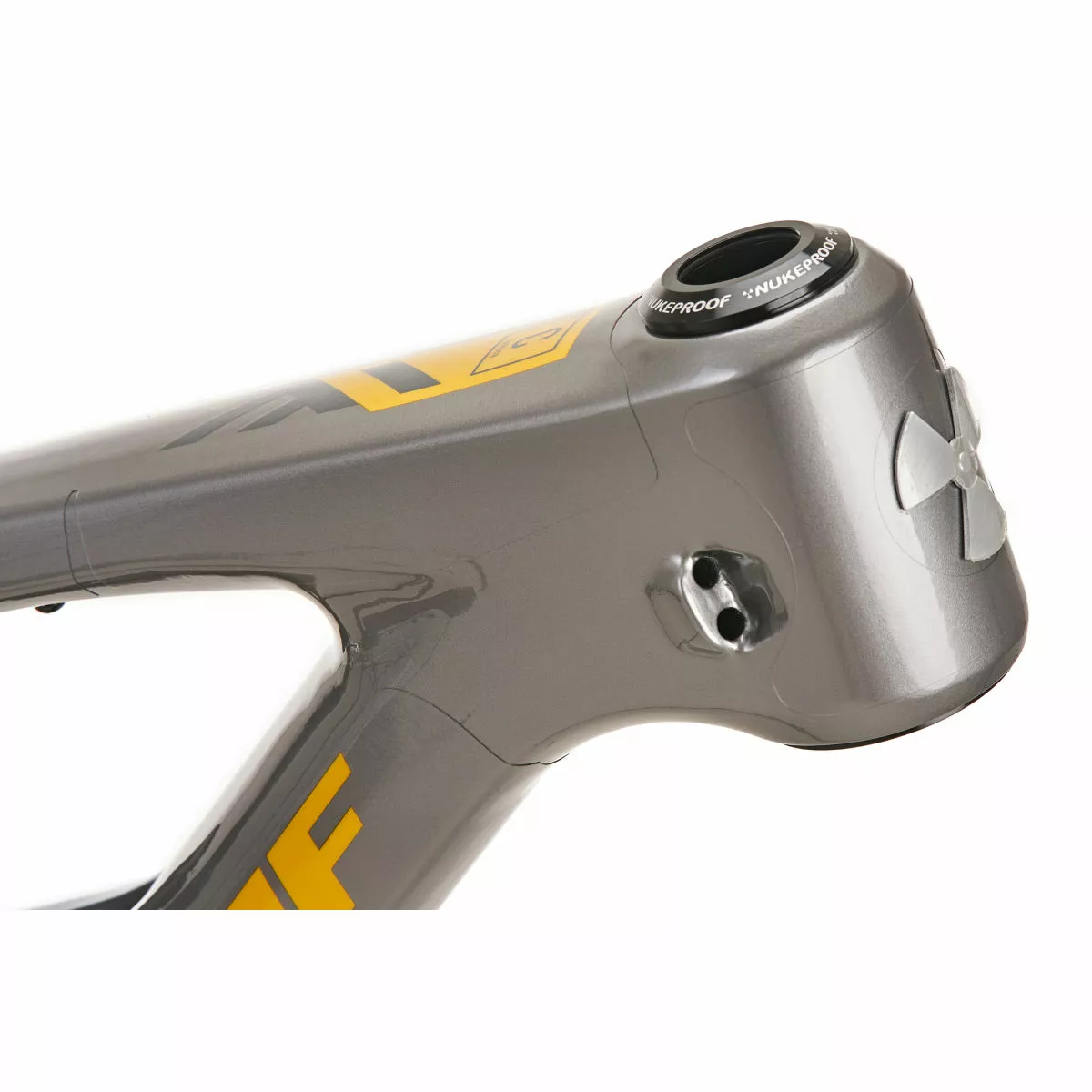

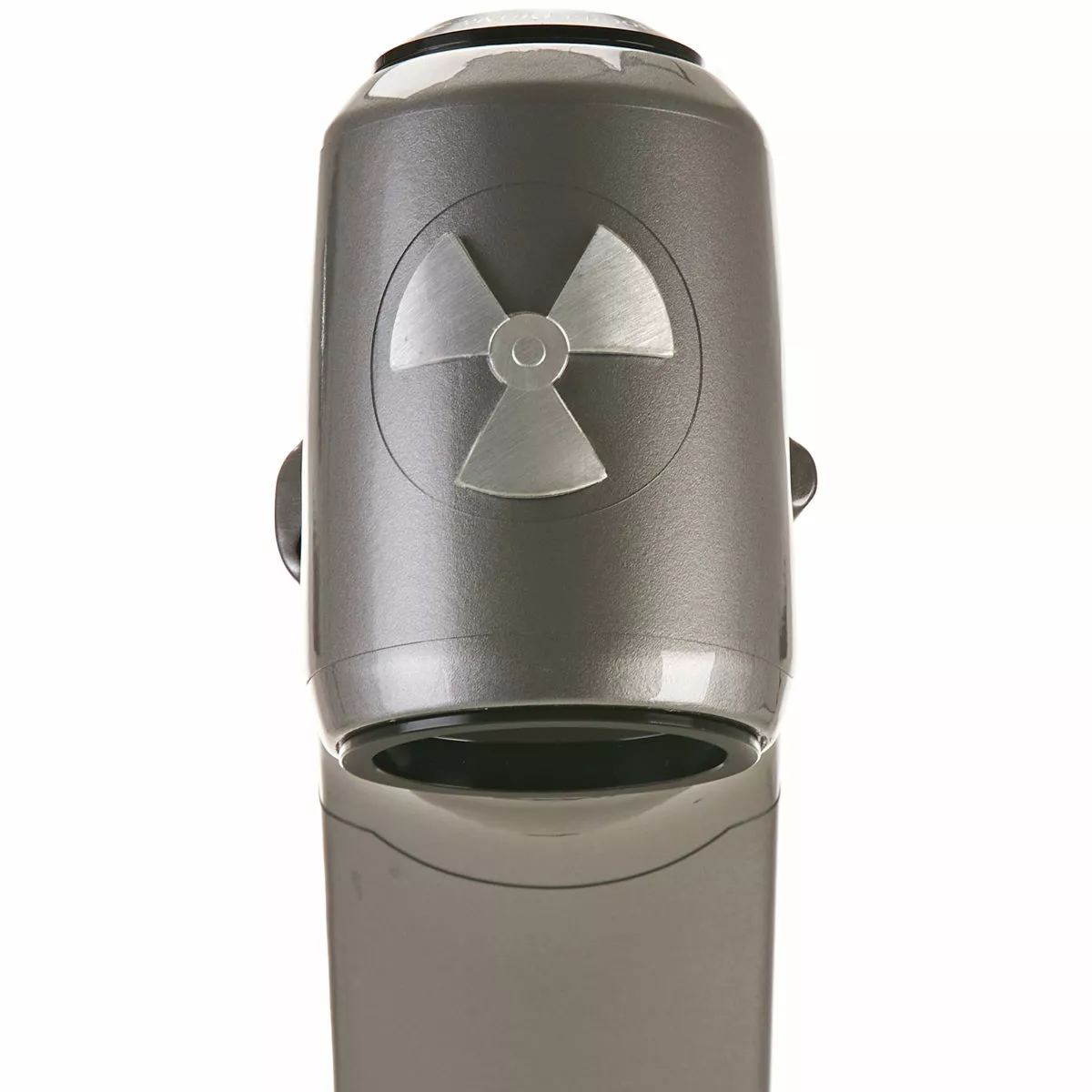

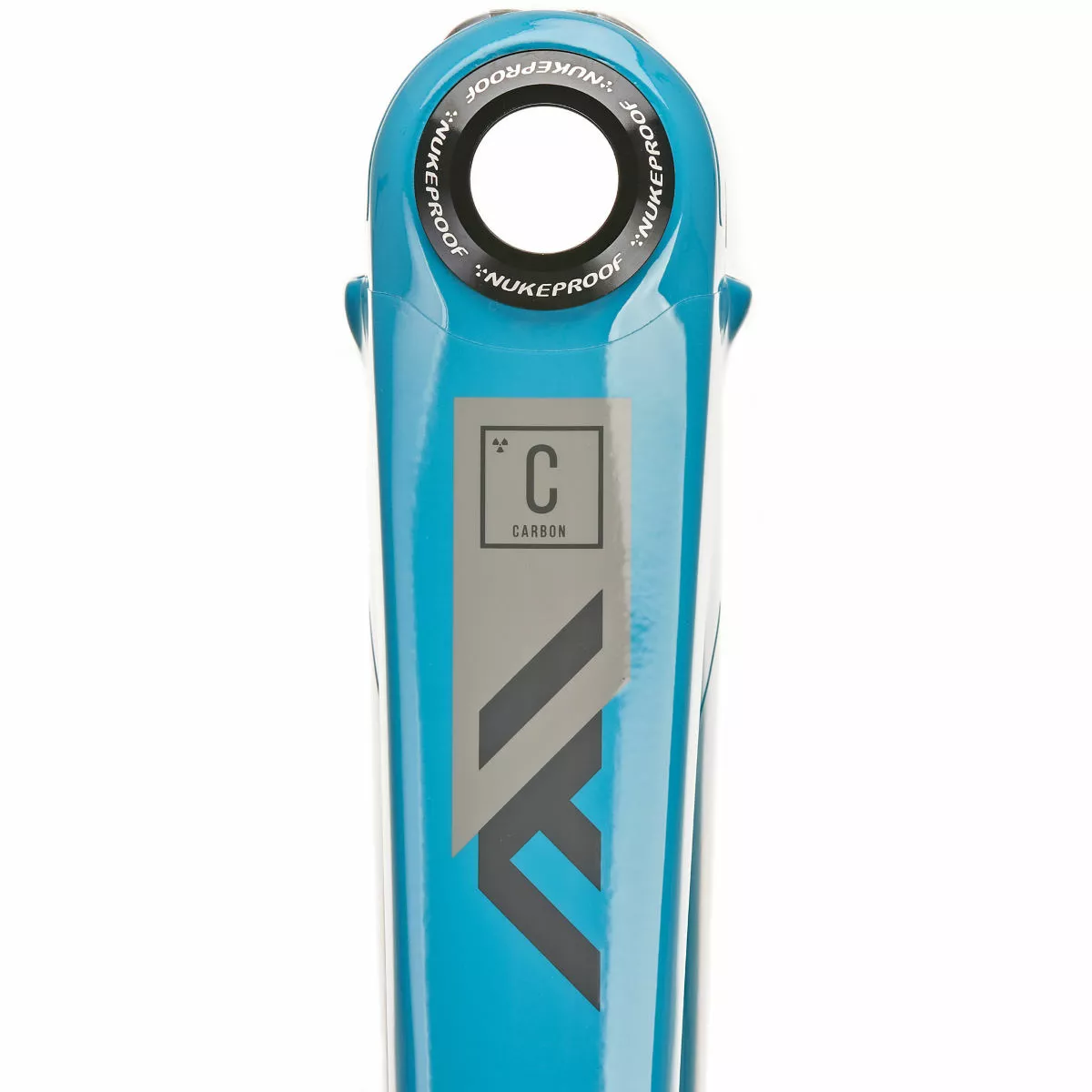

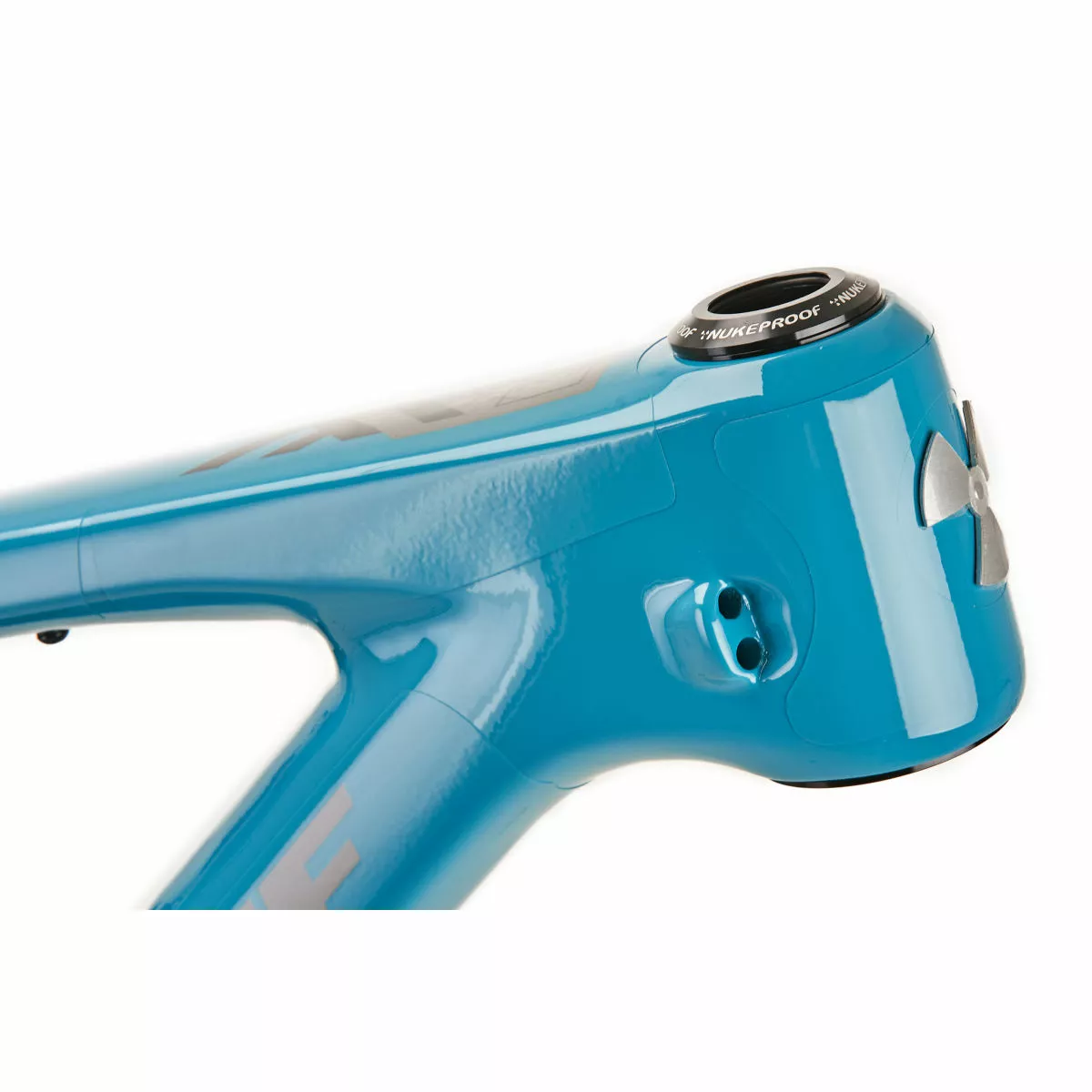

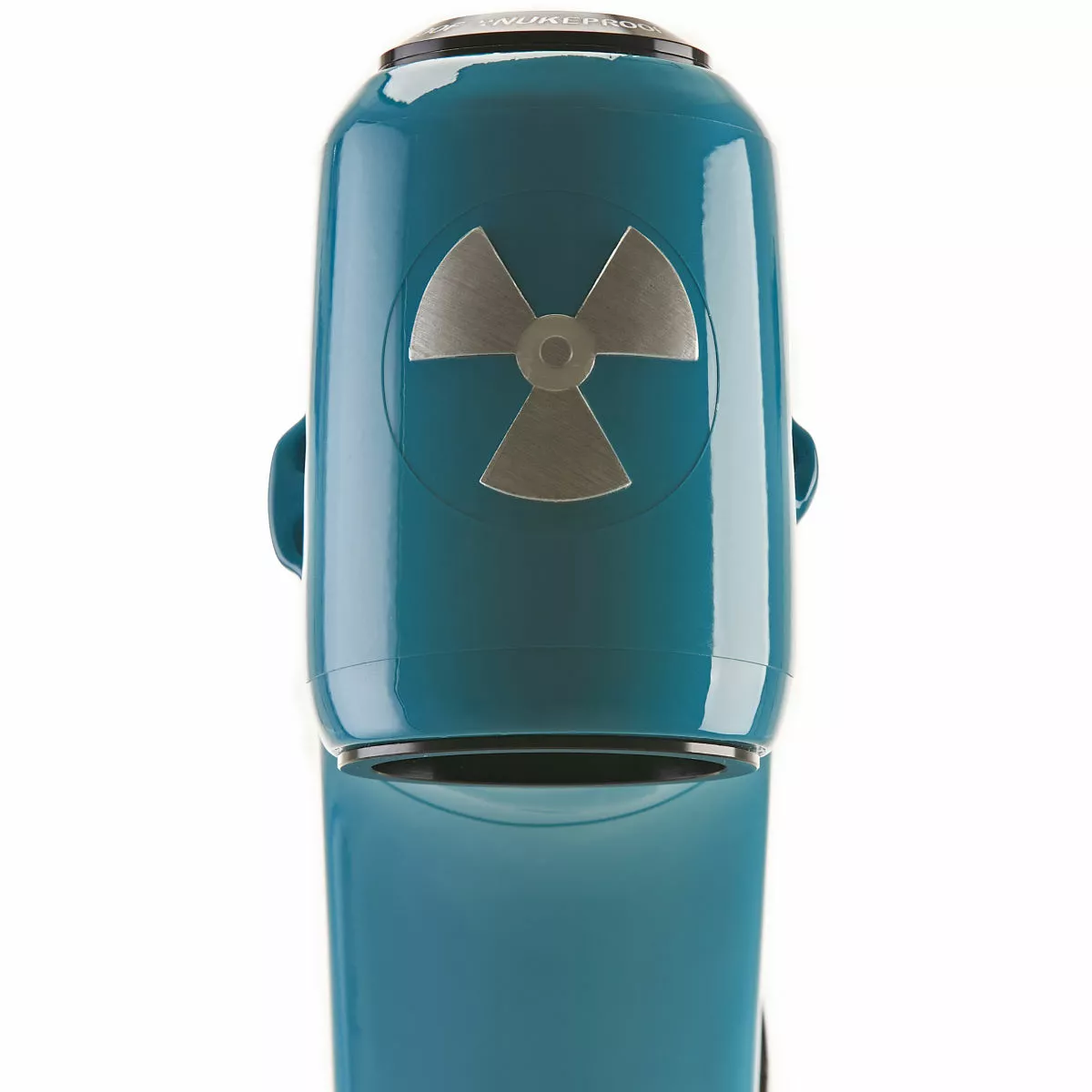

Headtube: 44-56mm Tapered Semi-Integrated

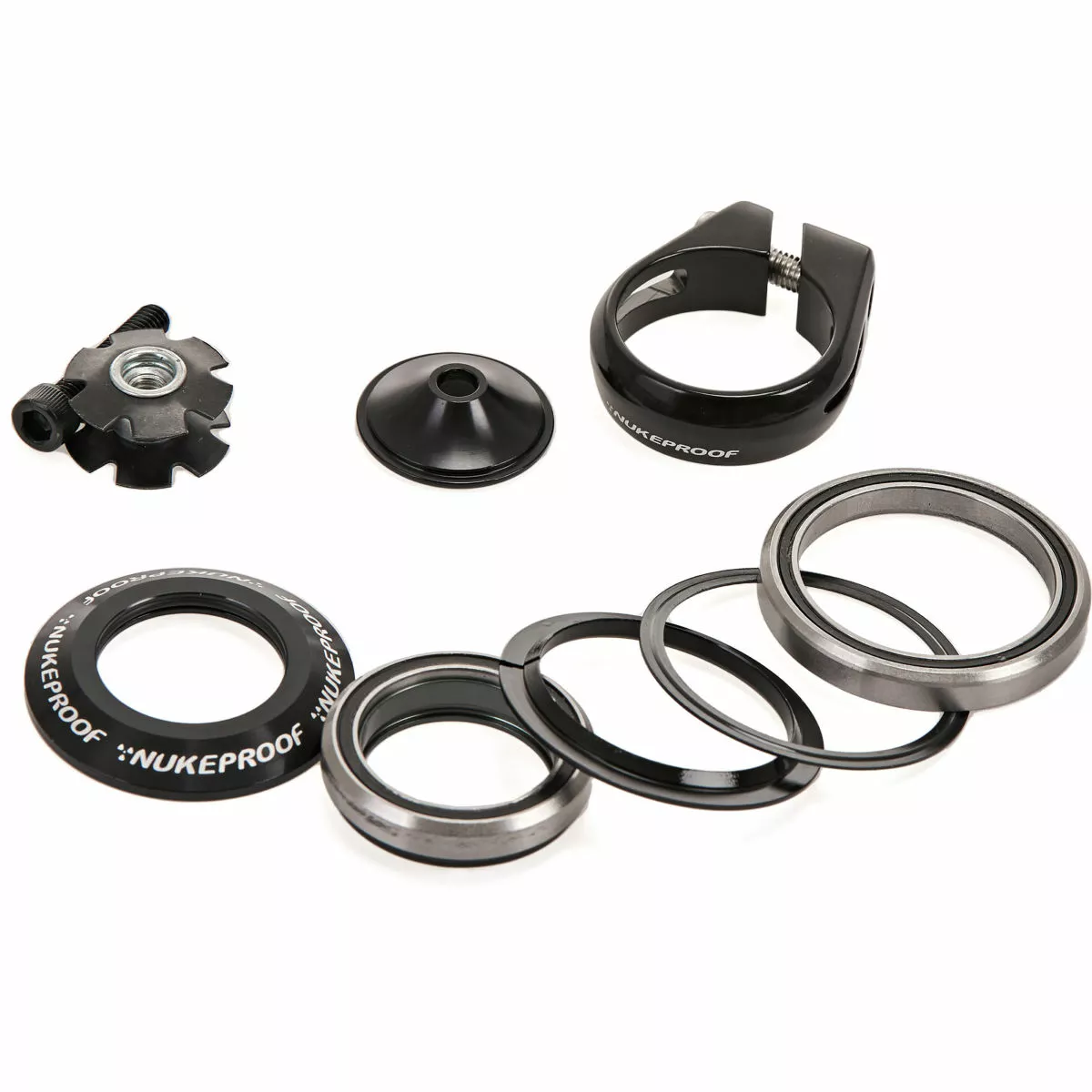

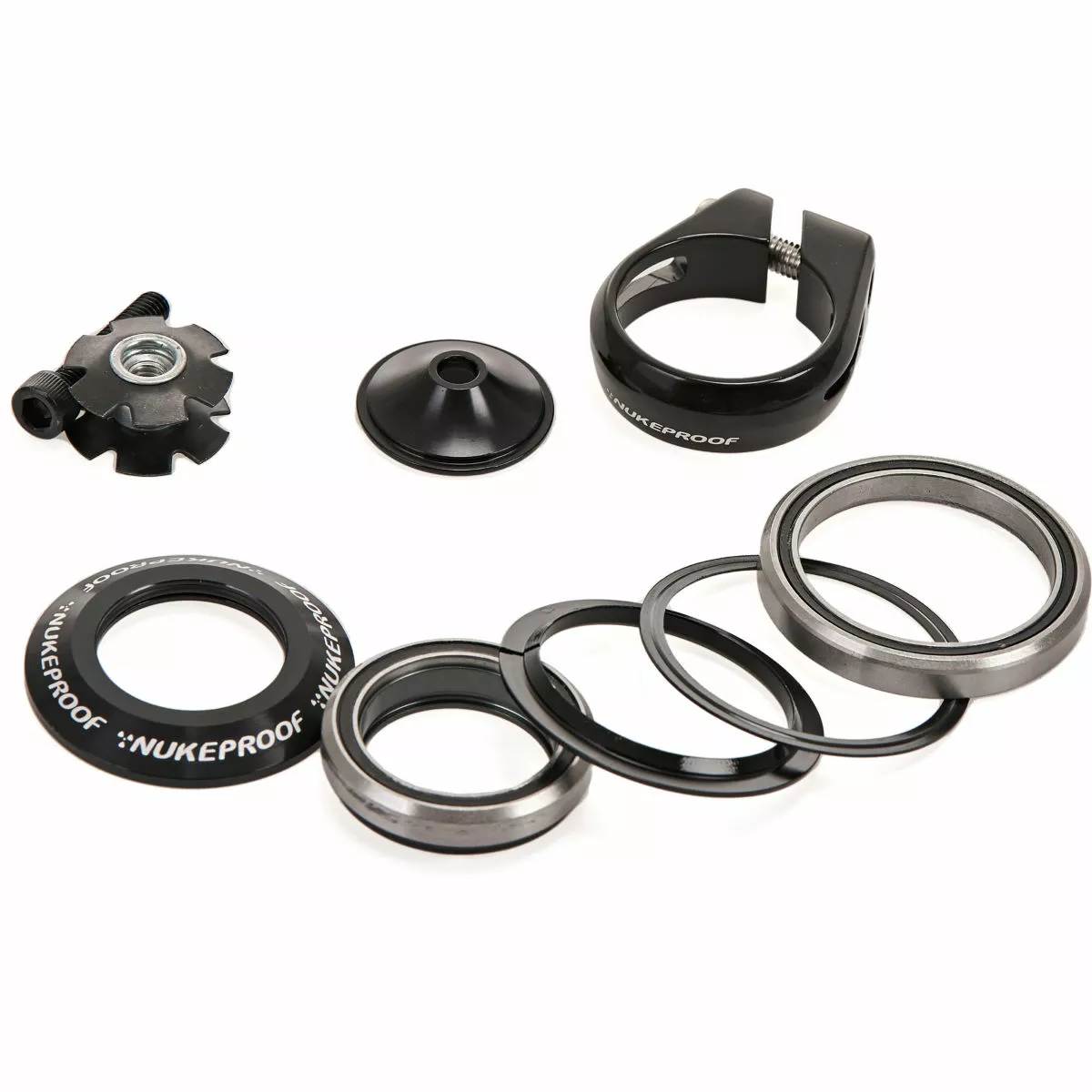

Headset: ZS44-28.6 – T2 / ZS56/40 – B8
Bearings Required: 4x F6802 LLU MAX, 4x 6902 LLU MAX, 2x F6902 LLU MAX-EA
Seatpost: 31.6mm (Internal Routing for Dropper Seatpost)
Seat Clamp: 36.4mm

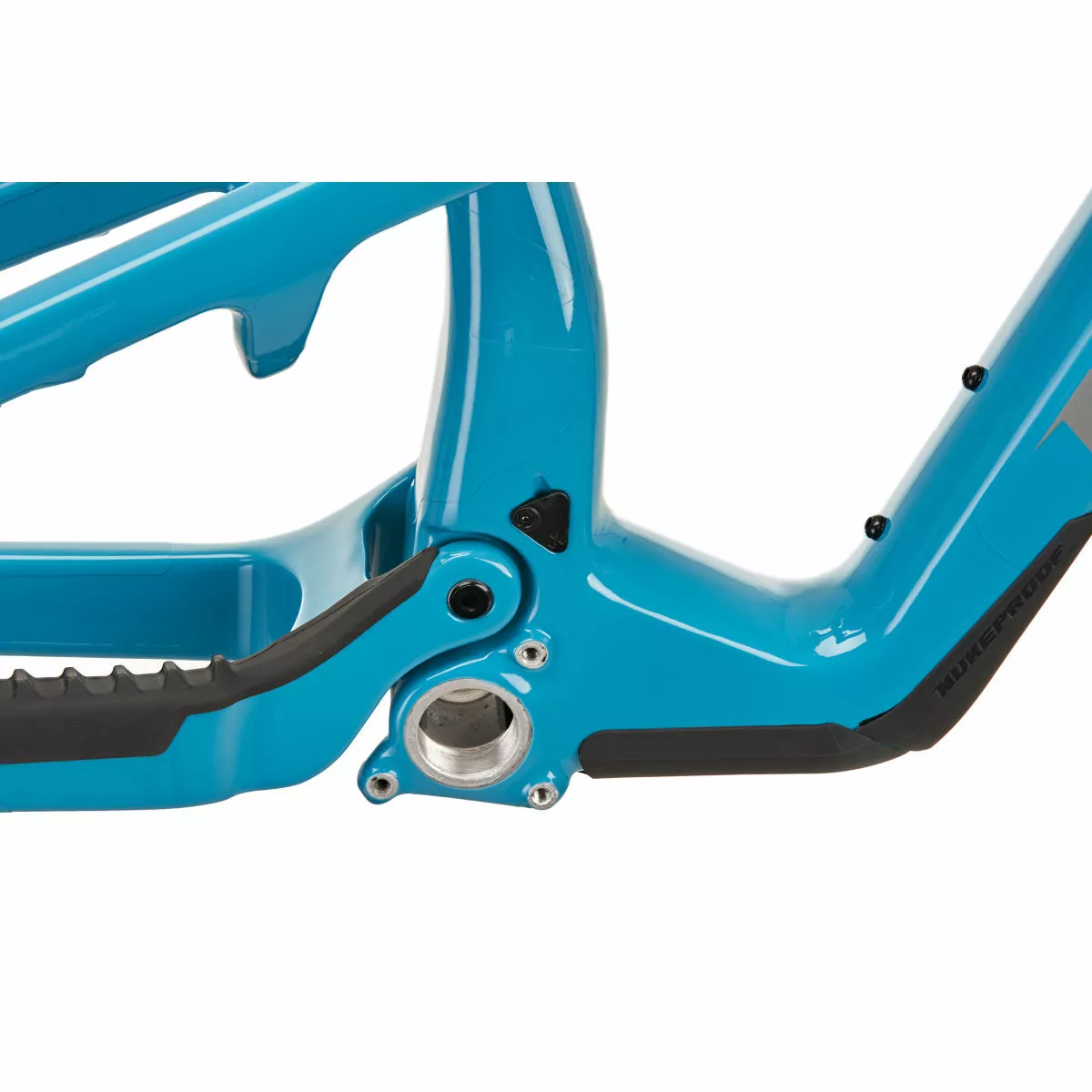

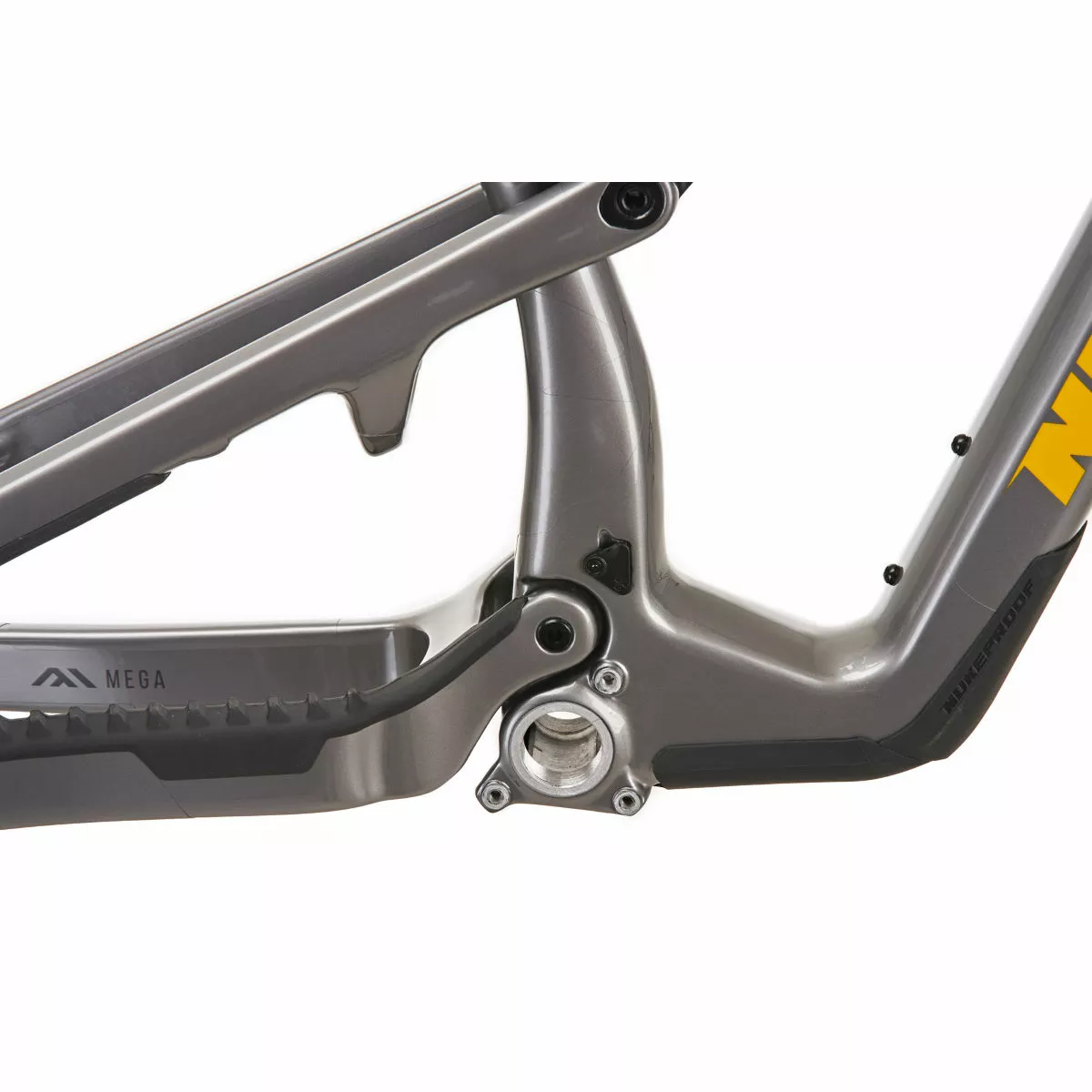

Bottom Bracket: Threaded 73mm BSA

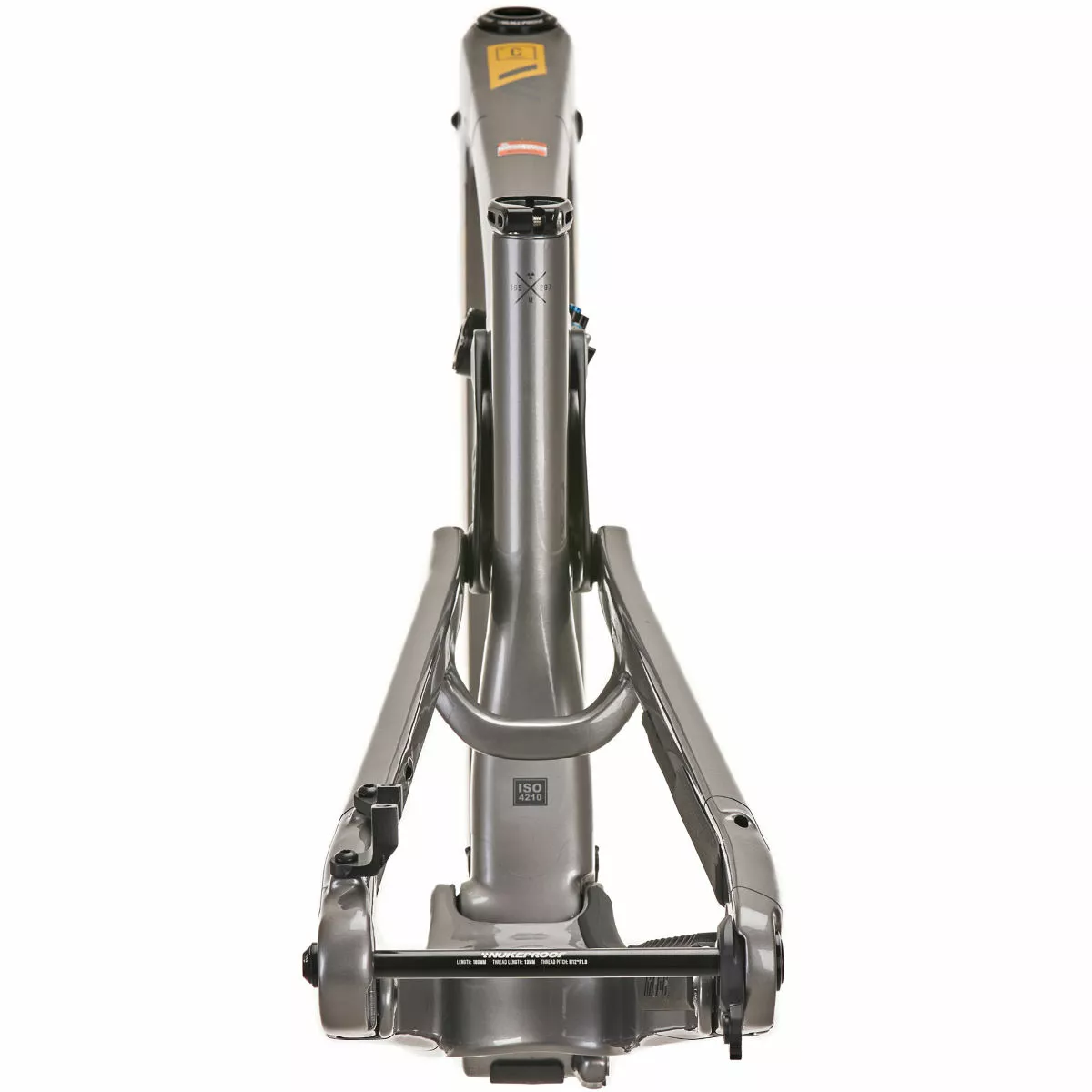

Rear Hub: Boost 148x12mm

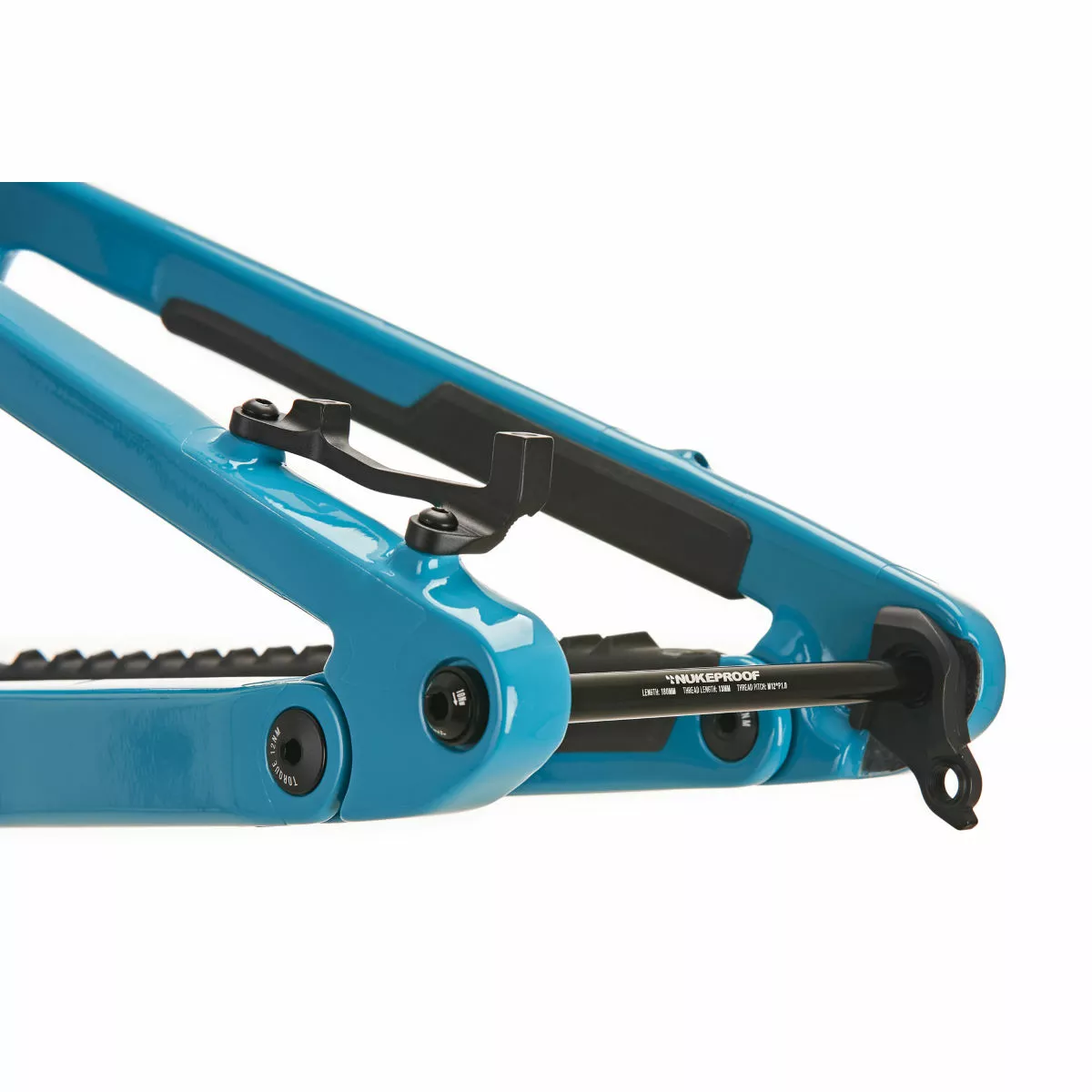

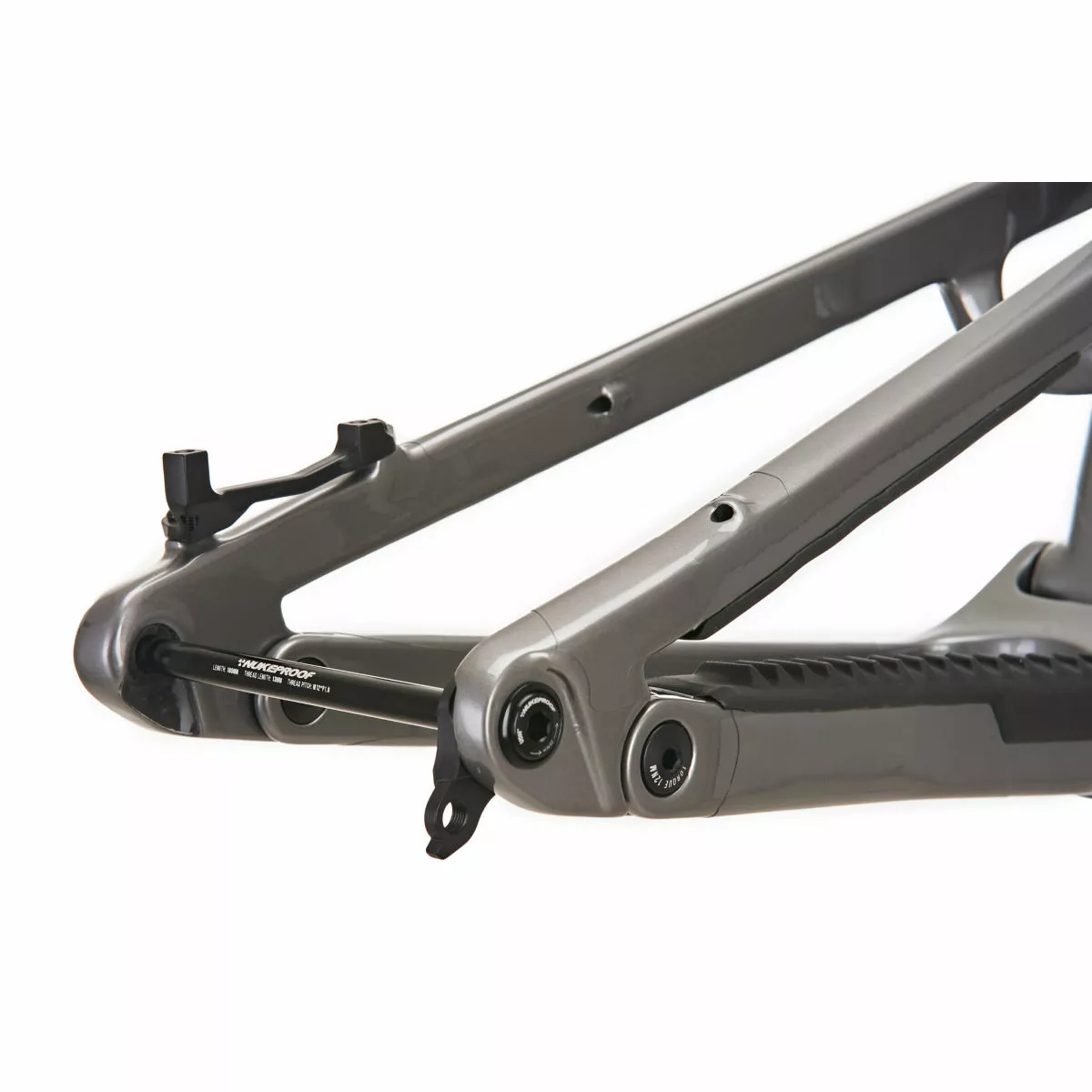

Rear Axle: SRAM UDH Maxle Stealth M12x1.0 180mm (Thread Length 13mm)
Chain Guide: ISCG05
Brake Mount: 180mm Direct Post

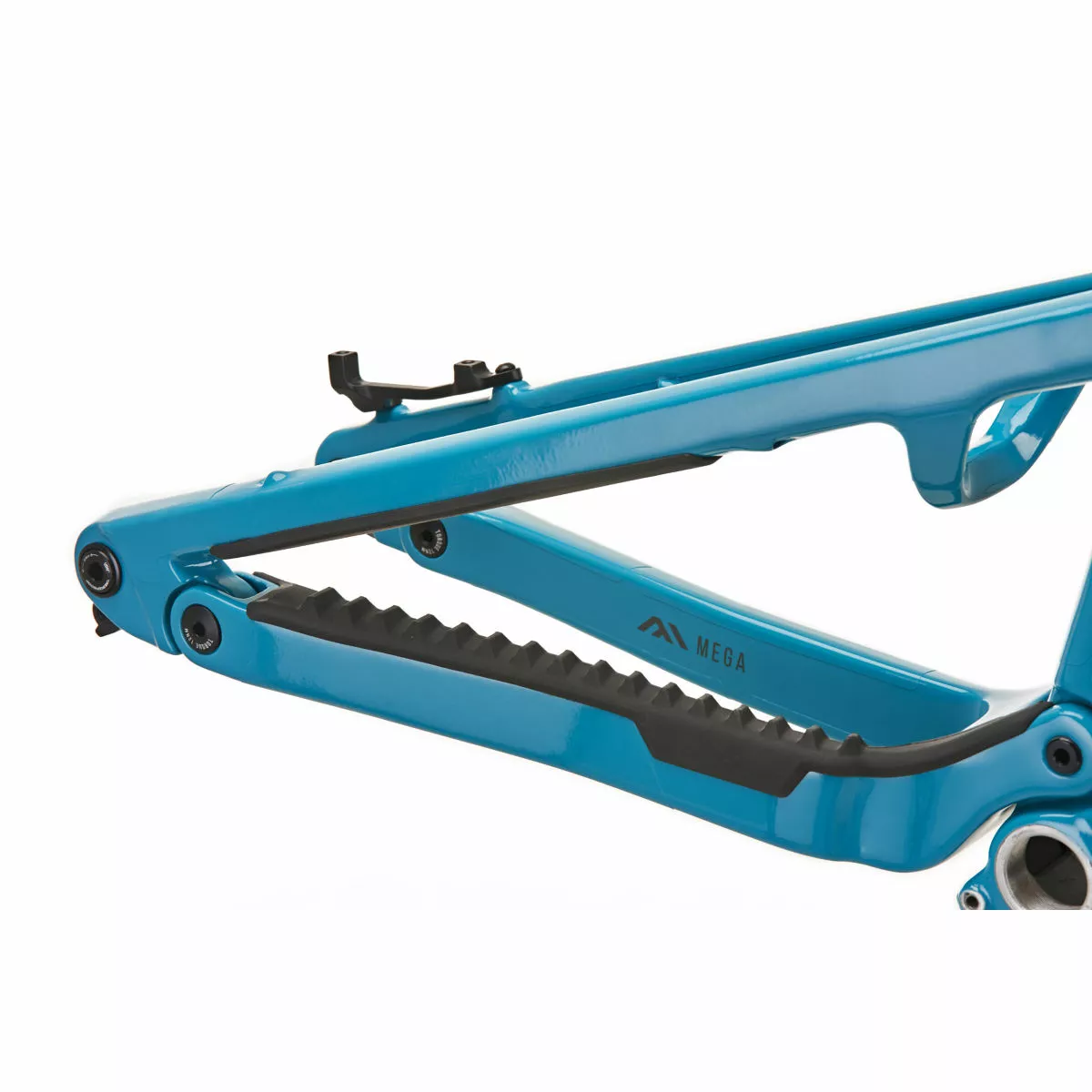

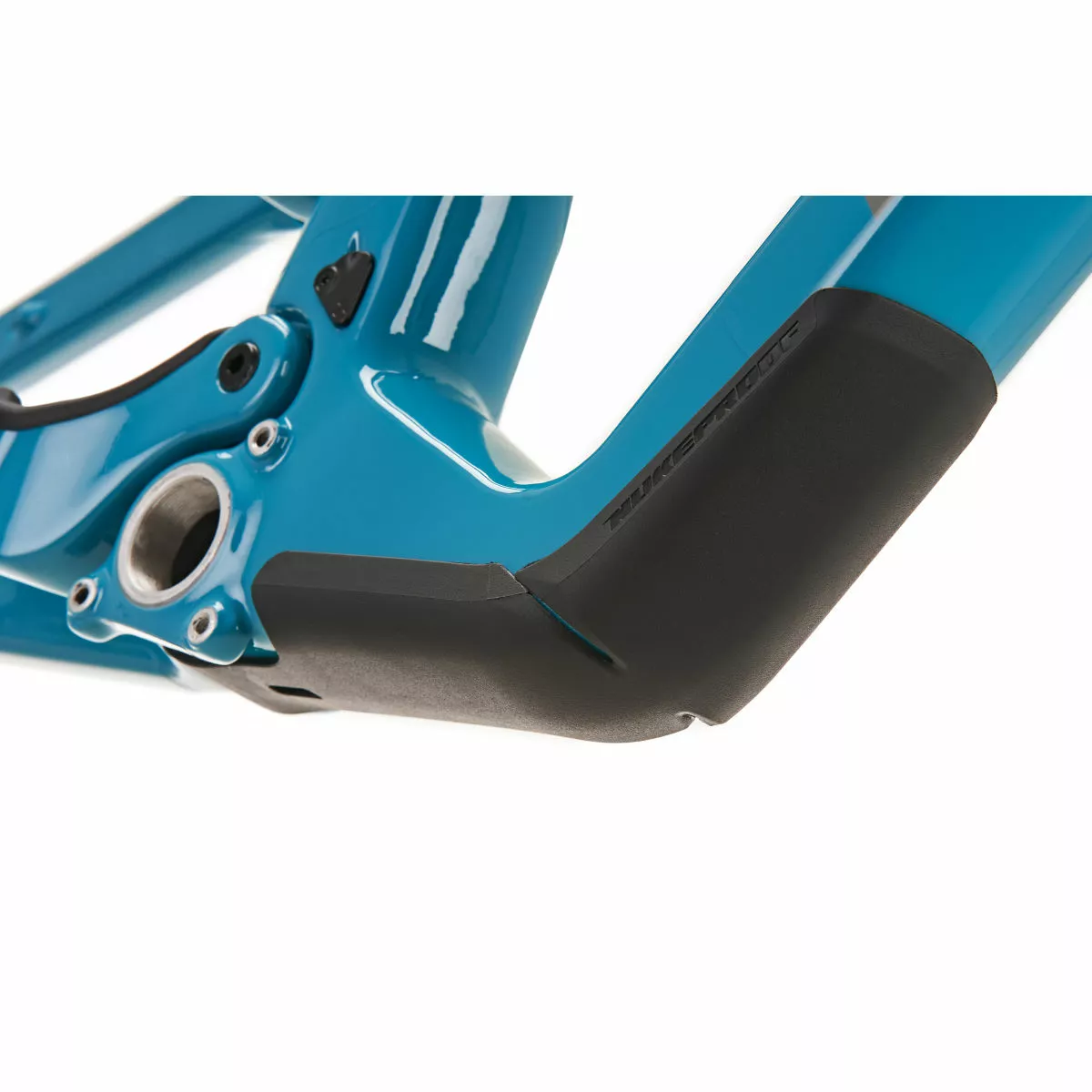

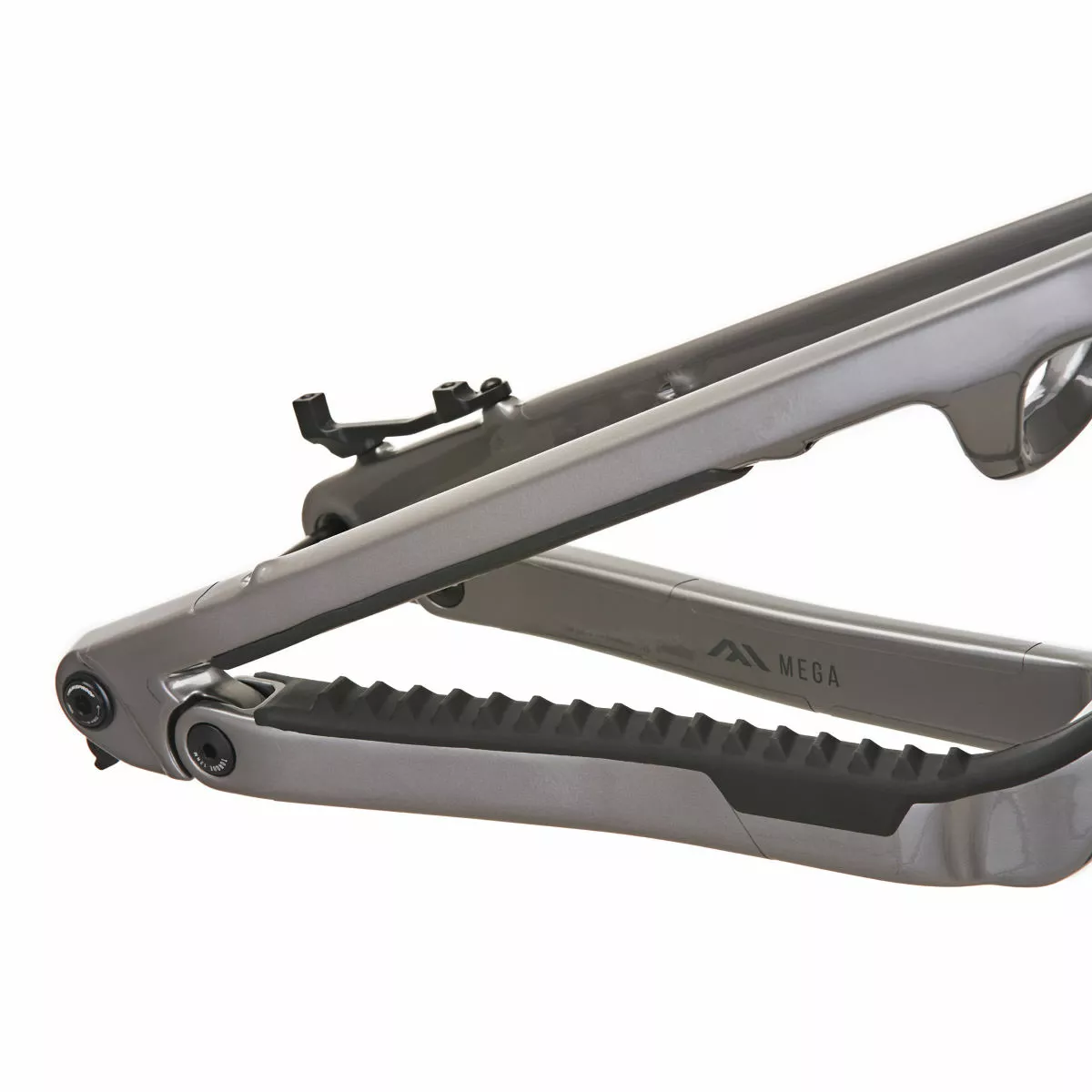

Protection: 3D Contoured Rubber Frame Protection for DT/SS/CS
Cable Routing: Internally piped cable routing
ISCG05 mount
Enduro bearings
Weight: 3.82Kgs/8.4lbs (Medium option)

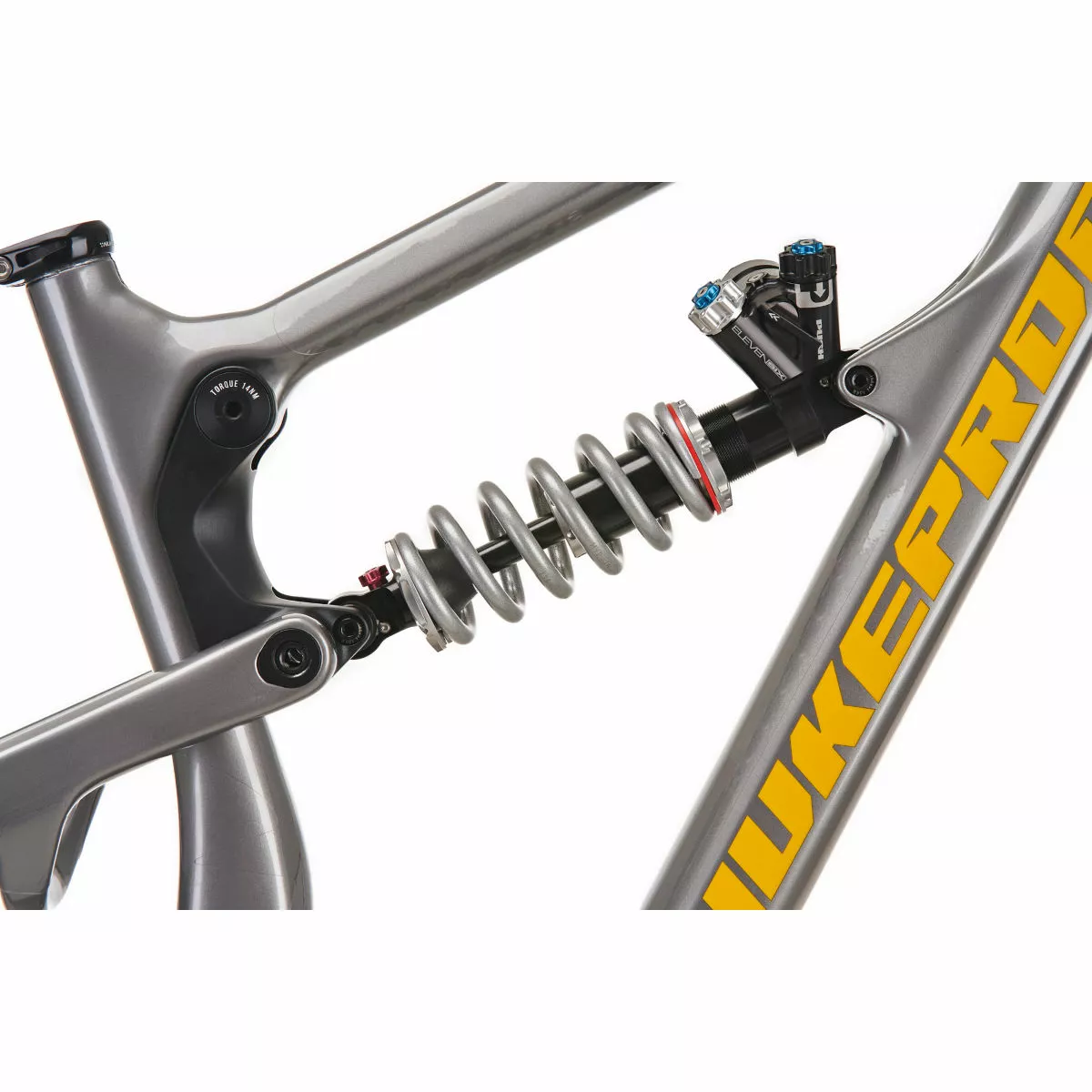

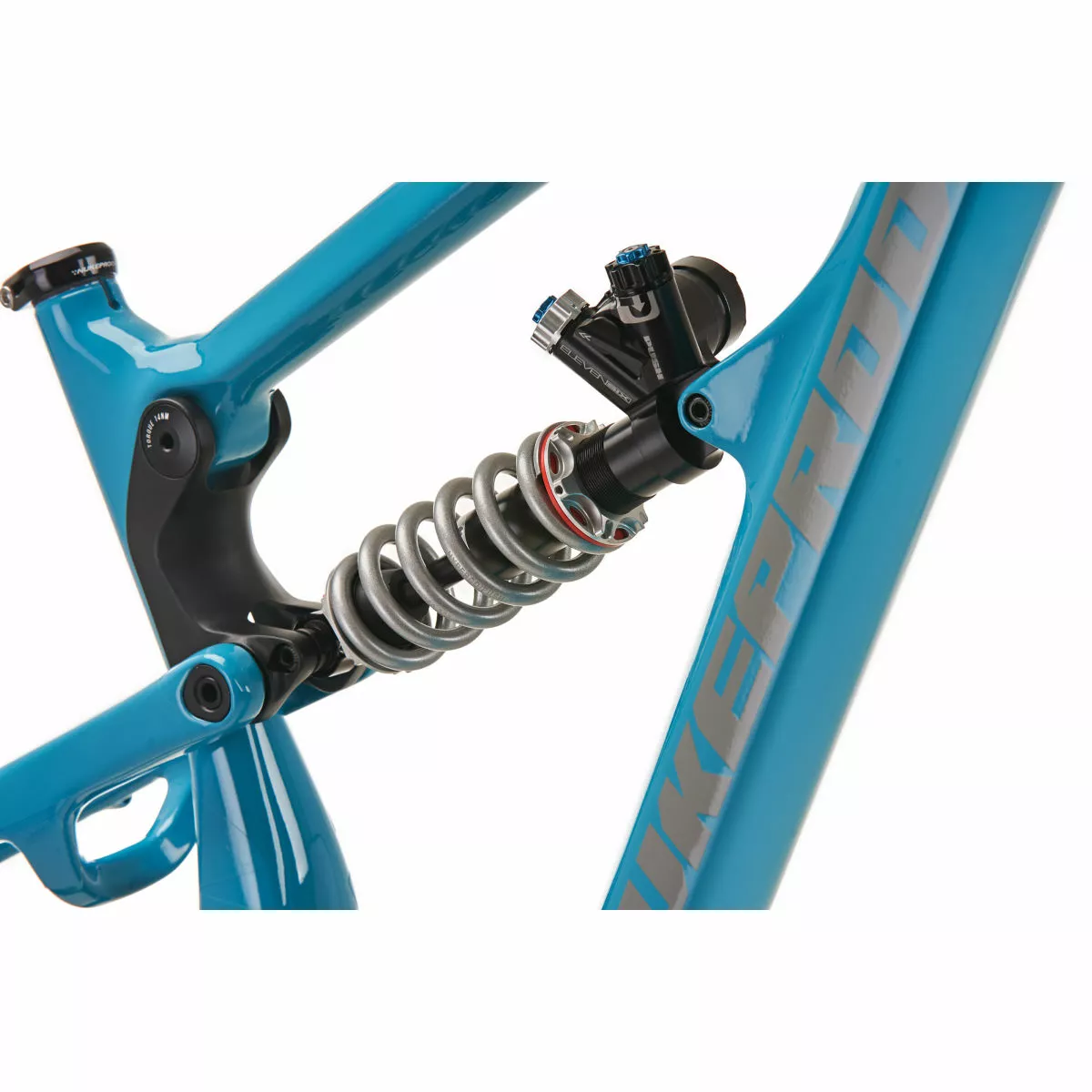

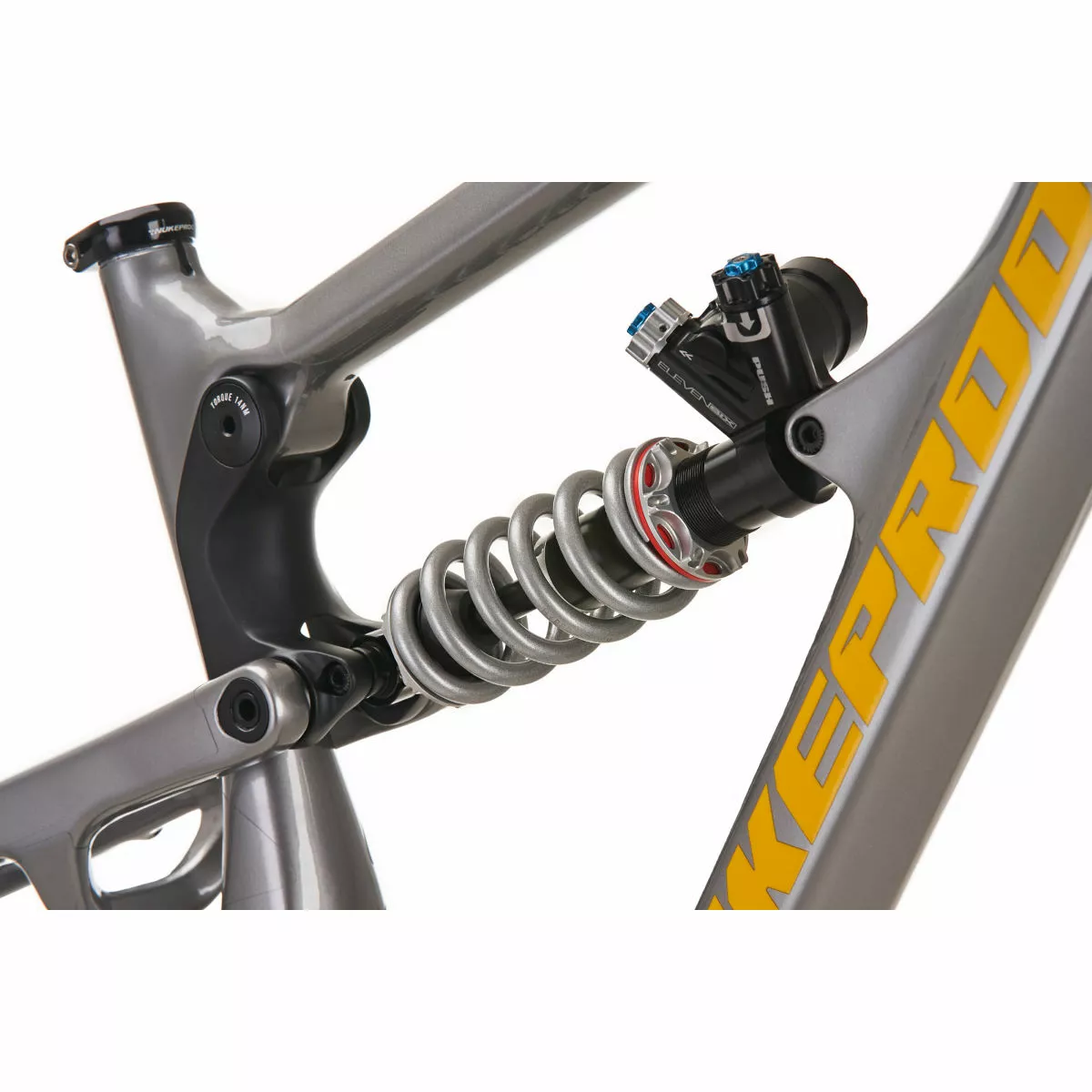

Push Elevensix Rear Shock Benefits:

Custom-tuned for Mega/Giga
Patented Dual Overhead Compression Valve System with increased range
Four-port symmetrical Progressive Damping Piston
Independent Hydraulic Bottom Out Piston
Motorsport grade spherical bearing eyelet mounts
High-Volume Low-Pressure Reservoir System (90psi)
25 clicks of external low-speed compression adjustment
25 clicks of external high-speed compression adjustment
18 clicks of external low-speed rebound adjustment
Ultralight Hybrid Hypercoil progressive spring system
Engineered specifically for each bike’s unique suspension characteristic
Individually dyno-tested
Motorex 3D Response Technology Oil
Manufactured and hand-assembled by PUSH Industries in Colorado

Push Elevensix Rear Shock Spring “Weights”

425lbs – Small
450lbs – Medium
475lbs – Large
500lbs – X Large
525lbs – XX Large
