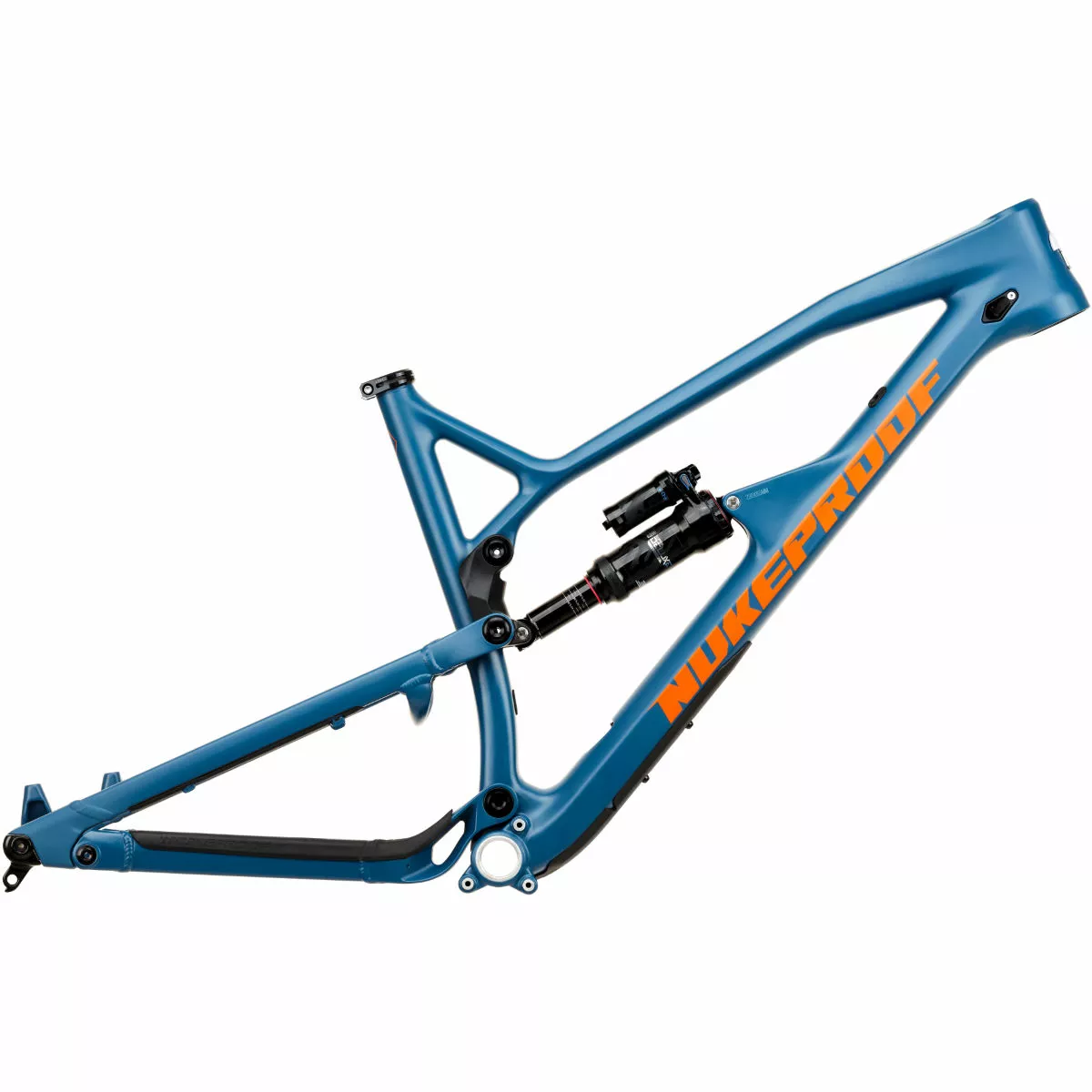

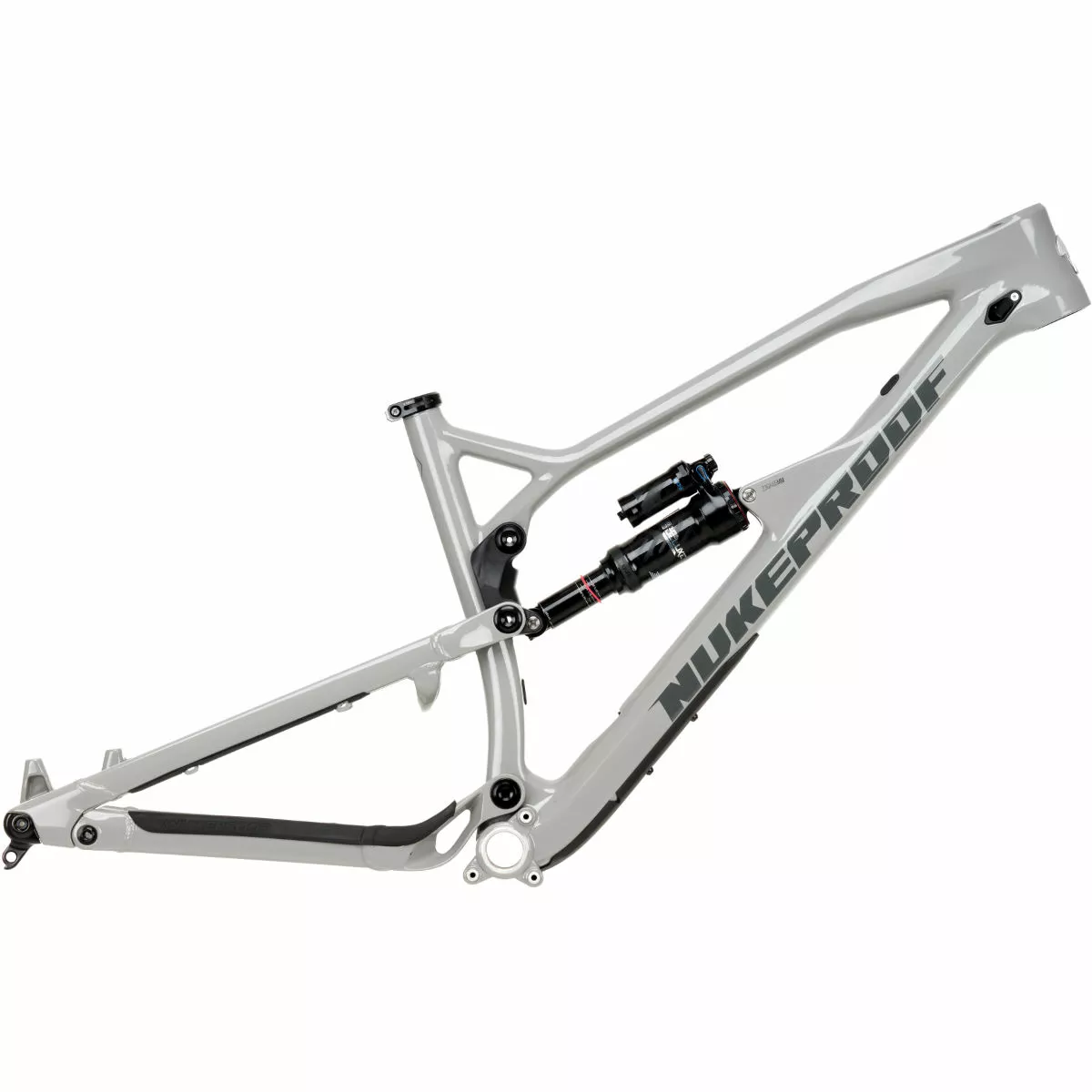

Nukeproof Mega 275 Carbon Mountain Bike Frame (2020)

Built and optimised for the EWS Enduro World Series race circuit, this same frame design and bike build ethos assisted Sam Hill in achieving the silverware two years running and he’s showing no signs of slowing down.

High-Quality Carbon Fibre and Hydroformed Alloy Construction

Engineered with a unique blend of the highest quality carbon fibre composites and has a hydroformed alloy rear triangle, this lightweight and mighty creation enables you to push harder and faster than ever before. Plus, its modern geometry means it’s more responsive and offers greater stability in even the most demanding conditions.

Frame Size Perfect for Every Rider Size and Riding Style

Nukeproof has always been a step ahead of the competition with market-leading performance and this season’s Mega is no exception. Providing what the modern rider desires, Nukeproof has added the Medium-Long size to the Mega’s catalogue. This additional side features a seat tube length that’s the same as the Medium, however, the reach has been increased. They have created a frame size exactly in the middle between a Medium and Large, bringing the total frame size choice to five in the Mega range, so there’s a perfect frame size for everyone.

Features:

Frame: Nukeproof Mega 275 Carbon, 165mm Travel, ultra-strong monocoque UD woven Carbon Fibre front triangle, custom triple butted hydro-formed tube set for seat stays and chainstays
Shock: RockShox Super Deluxe Ultimate RCT, Custom ML 380 tune, 230x65mm, Bearing End (Recommended for most riders to use 1x bottomless token but the shock comes with 2 tokens fitted, so you have an extra if needed.)
Factory fitted clear paint protection kit covers TT/DT/CS/SS
Internal cable routing
Enduro Bearings
Fork Travel: 170mm (RS 180mm)
Axle to Crown: 562mm (RS 572mm)
Fork Offset: 46mm
Shock Travel: 165mm
Wheels Size: 27.5″
Max Tyre Size: 2.5″
Shock Size: 230x65mm
Shock Hardware F: 25x8mm
Shock Hardware R: 30x8mm
Headtube: 44-56mm Tapered Semi-Integrated
Headset: ZS44-28.6 – T2 / ZS56/40 – B8
Bearings Required: 2x NP-5 (6902 2RS), 4x NP-7 (6800 2RS), 4x NP-9 (61802-2RS1 EXTENDED)
Seatpost: 31.6mm (Internal Routing for Dropper Seatpost)
Seat Clamp: 36.4mm
BB: Threaded 73mm BSA
Rear Hub Spacing: Boost 148x12mm
Rear Axle: SRAM Maxle Stealth, M12x1.75 180mm
Chain Guide: ISCG05
Brake Mount: 160mm Direct Post
Protection: 3D Contoured Rubber Frame Protection for DT/SS/CS

ON SALE: MID OCTOBER
