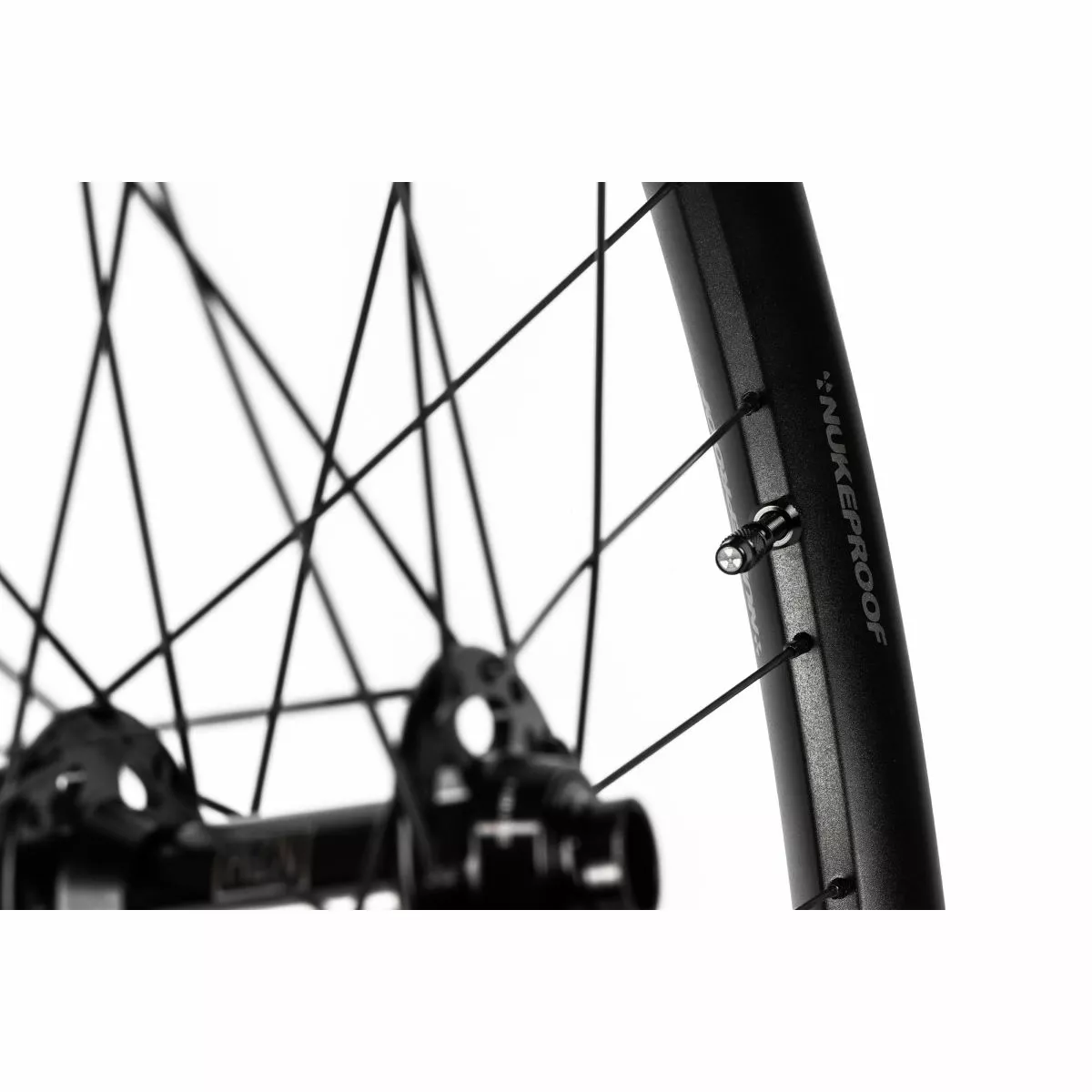

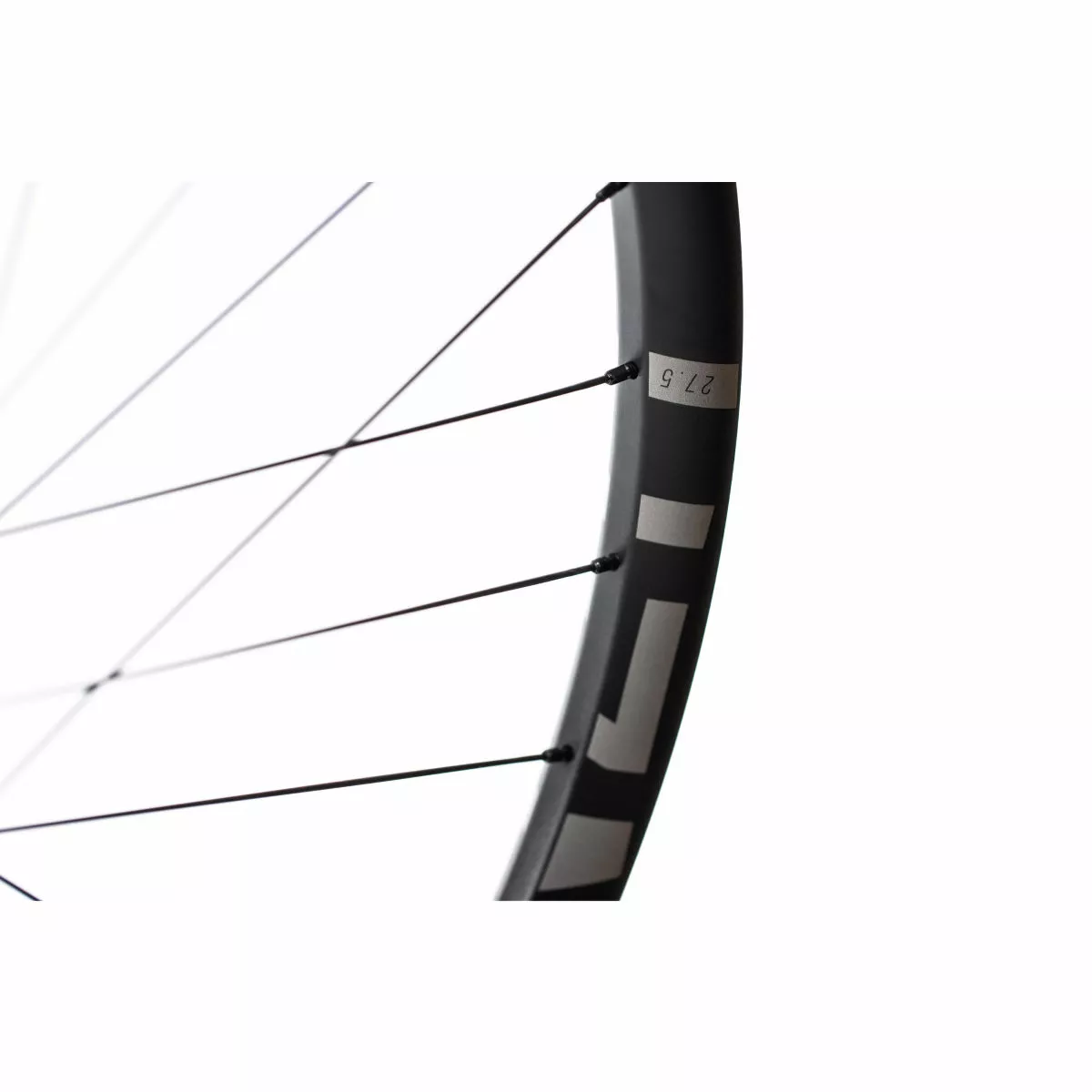

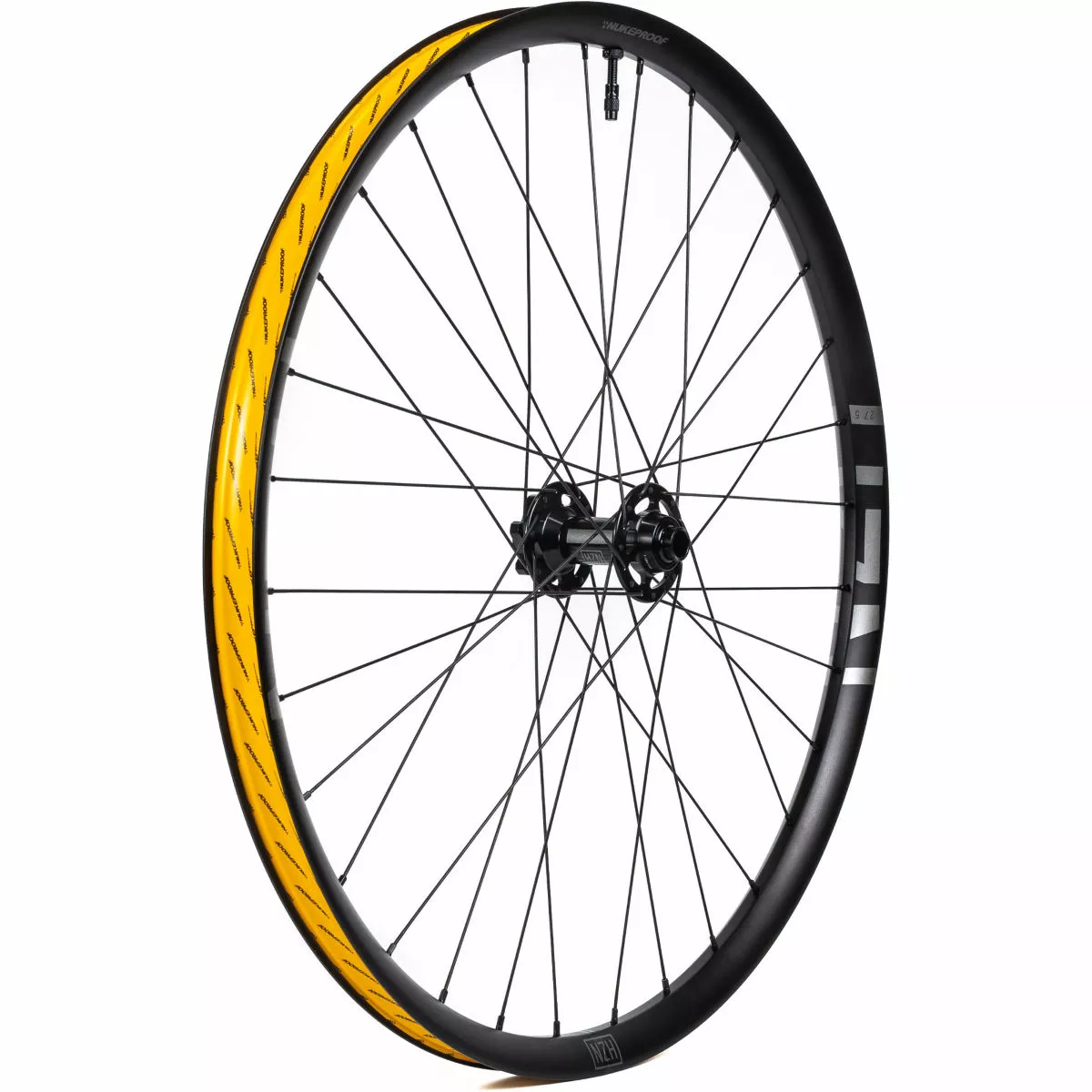

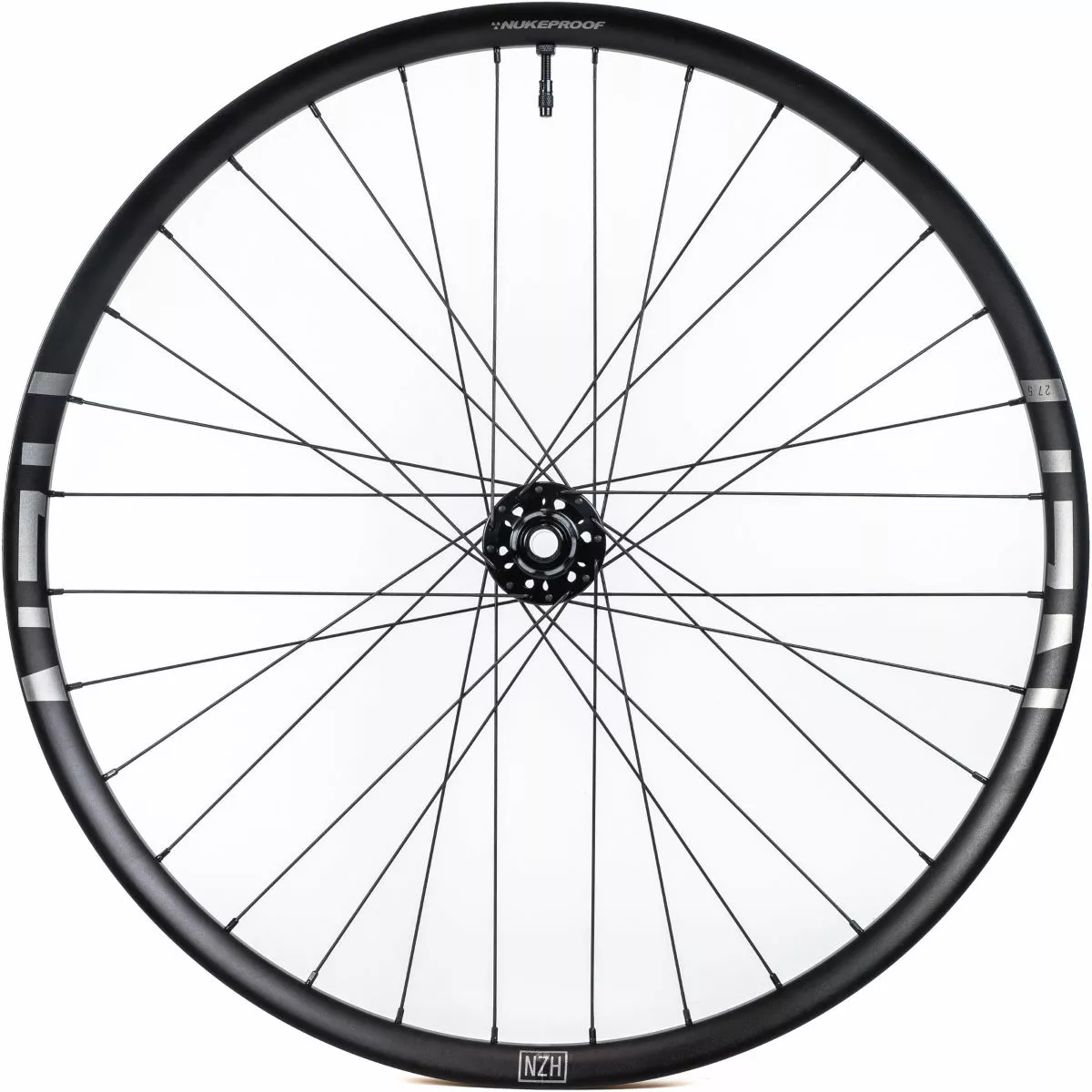

Nukeproof Horizon V2 Front Wheel

Ready for fast-paced and aggressive trail-riding, this front wheel has gone through extensive testing to meet the demands of both Enduro and DH riders. It features a special blend of alloy material, which produces a hardness similar to 7-series alloy, but with the ductility and yield properties of a 6-series. This gives you the best of both worlds in terms of stiffness, strength and weight. Nukeproof has also ensured this front wheel’s rim profile is the same as the rear (sold separately), the only difference is the front has a thinner sidewall for greater weight savings. One final highlight is it comes equipped with J-bend spokes, which means that tensioning and spoke replacement is as simple as possible.

Enduro ABEC 5 Bearings

After extensive testing with various brands of bearings, Nukeproof chose to use Enduro ABEC 5 bearings in this front wheel. These bearings have the “LLU/LLB” seal type, which uses two lips that make light contact in a groove to create a labyrinth where the water or dirt has a more difficult time to penetrate. LLU seals are similar, only the contact pressure or interference fit is greater to seal better. Enduro bearings have 80% grease fill on both sides whereas most other bearings have 35% grease fill on one side. This delivers full coverage, so there are no dry areas as well as avoiding metal on metal contact or wear. This means that the axle feels tight out of the box and after a couple of rides it will become free.

Nukeproof Horizon V2 Hub

This MTB front wheel features a revised Nukeproof Horizon V2 hub, which is available for both 15mm & 20mm spacings in both boost & non boost. We also sell end caps for QR separately.

What’s Included?

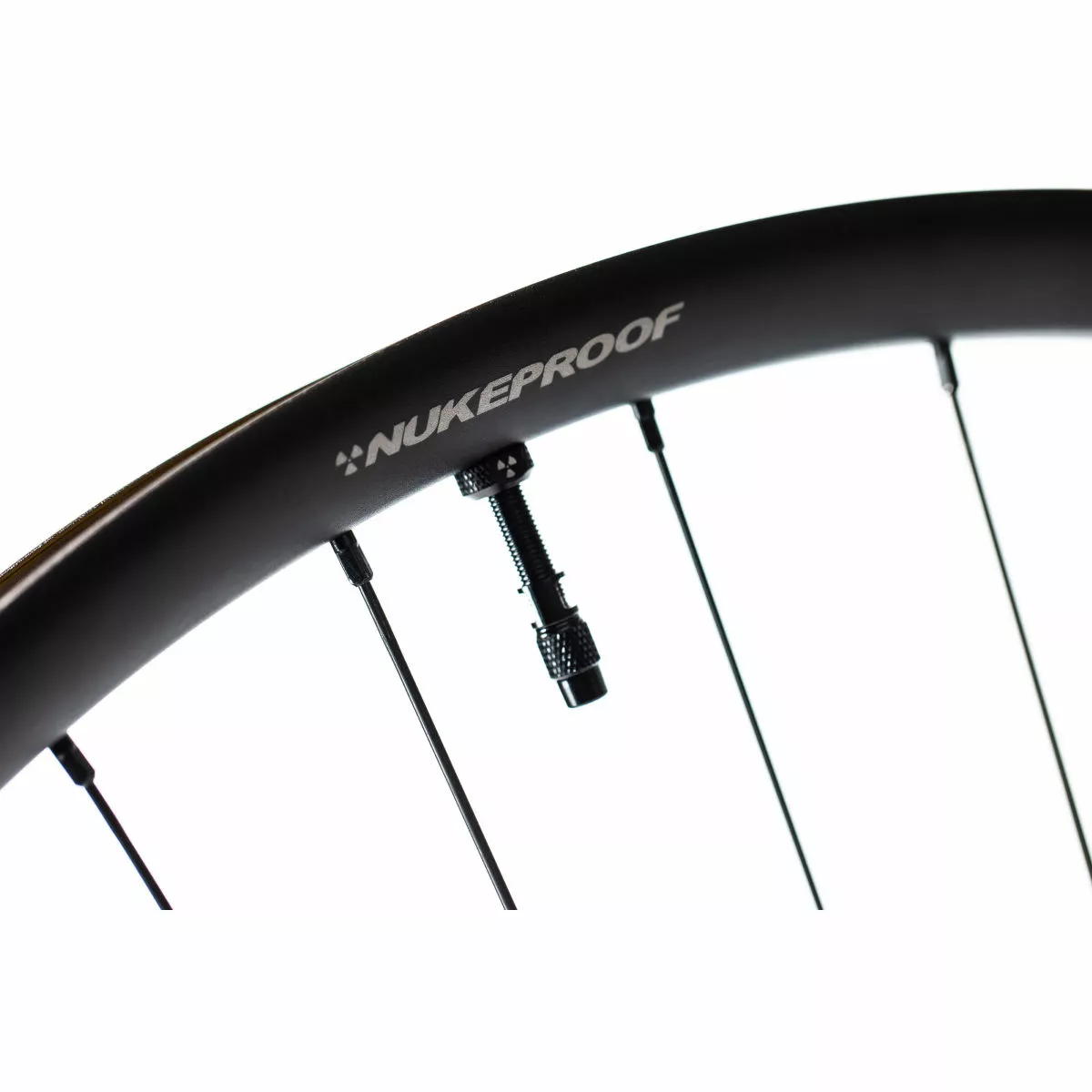

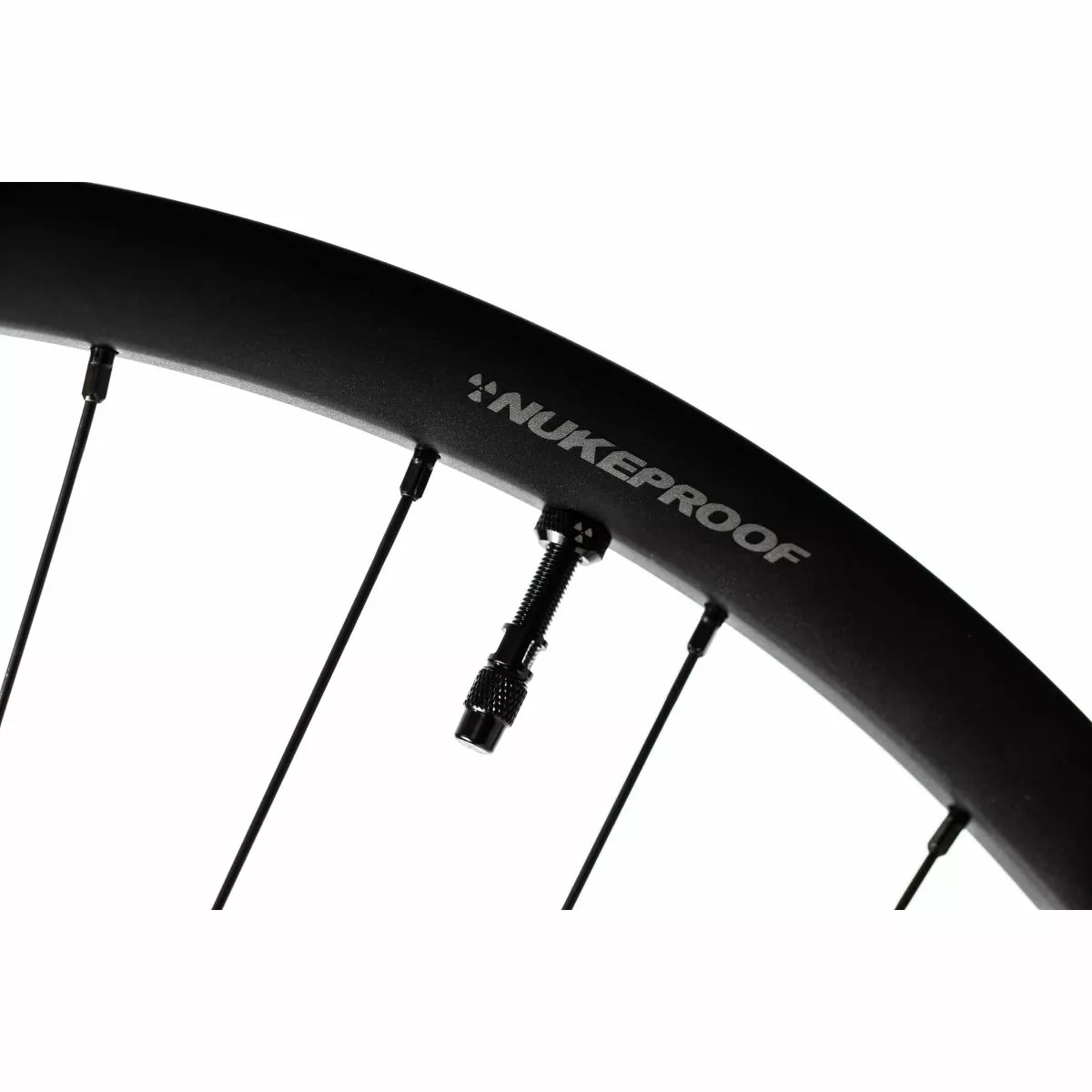

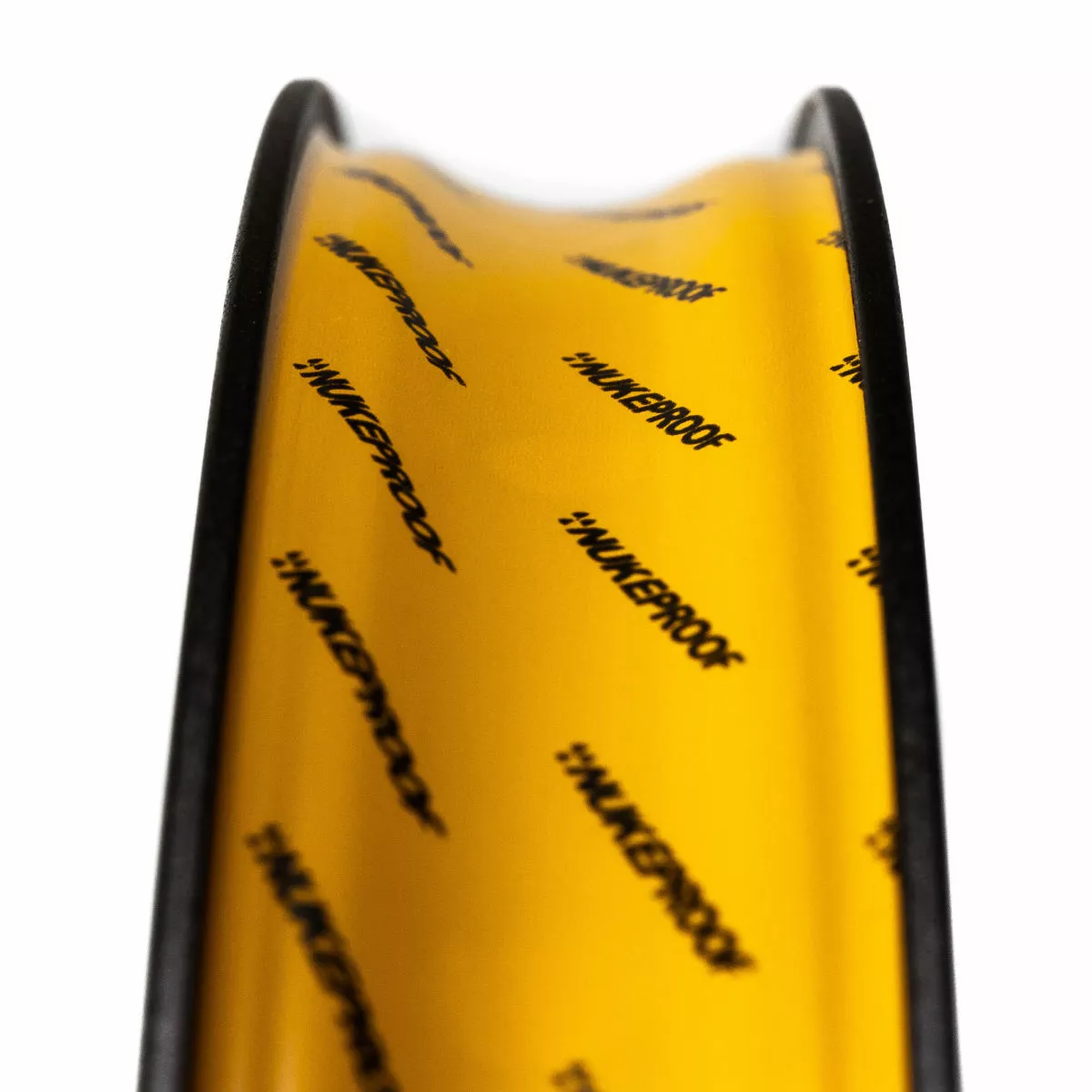

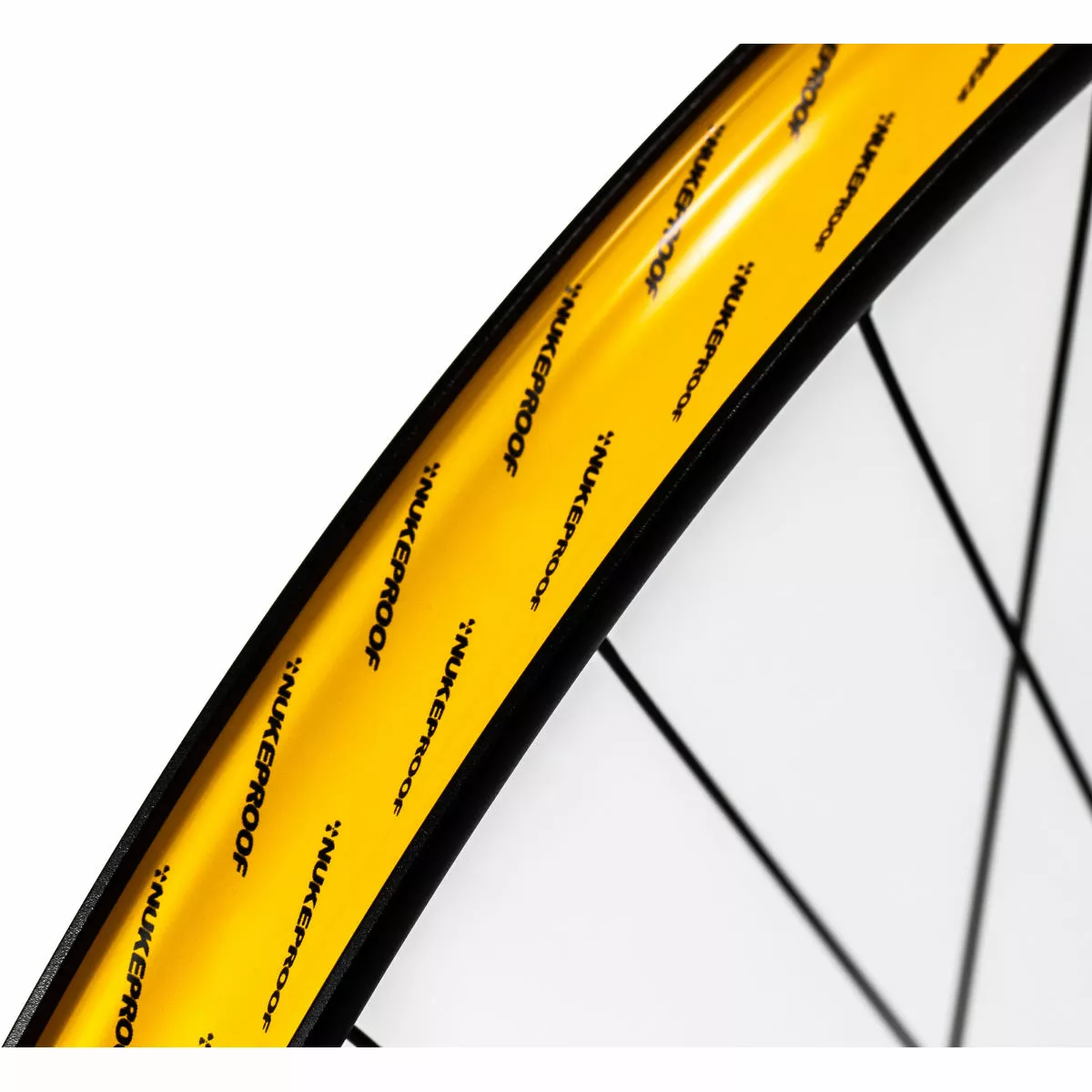

Wheels come taped with tubeless valve installed so all you need to do is fit your tyre and add sealant. The tubeless valve supplied is the new Nukeproof Horizon valve which is compatible with Nukeproof ARD and other tyre inserts as well as the cap having a core remover built-in.

Spoke length’s on Nukeproof wheels are the same regardless of spacing, the length changes with wheel size:

Wheel          Wheel Size          Non Drive Side Spoke Length          Driveside Spoke Length

Front                 27.5″                                    269                                                 270

Front                 29″                                       288                                                 289



Conversion kits and replacement end caps available separately



Caps                              Nukeproof Part Number              Replacement or Conversion

Front 9mm QR               NUKHORV2F9QRCAPS             15mm Non Boost Hub to QR

Front 15mm                    NUKHORV2F15CAPS                Replacement 15mm caps

Front 20mm                    NUKHORV2F20CAPS                Replacement 20mm caps
