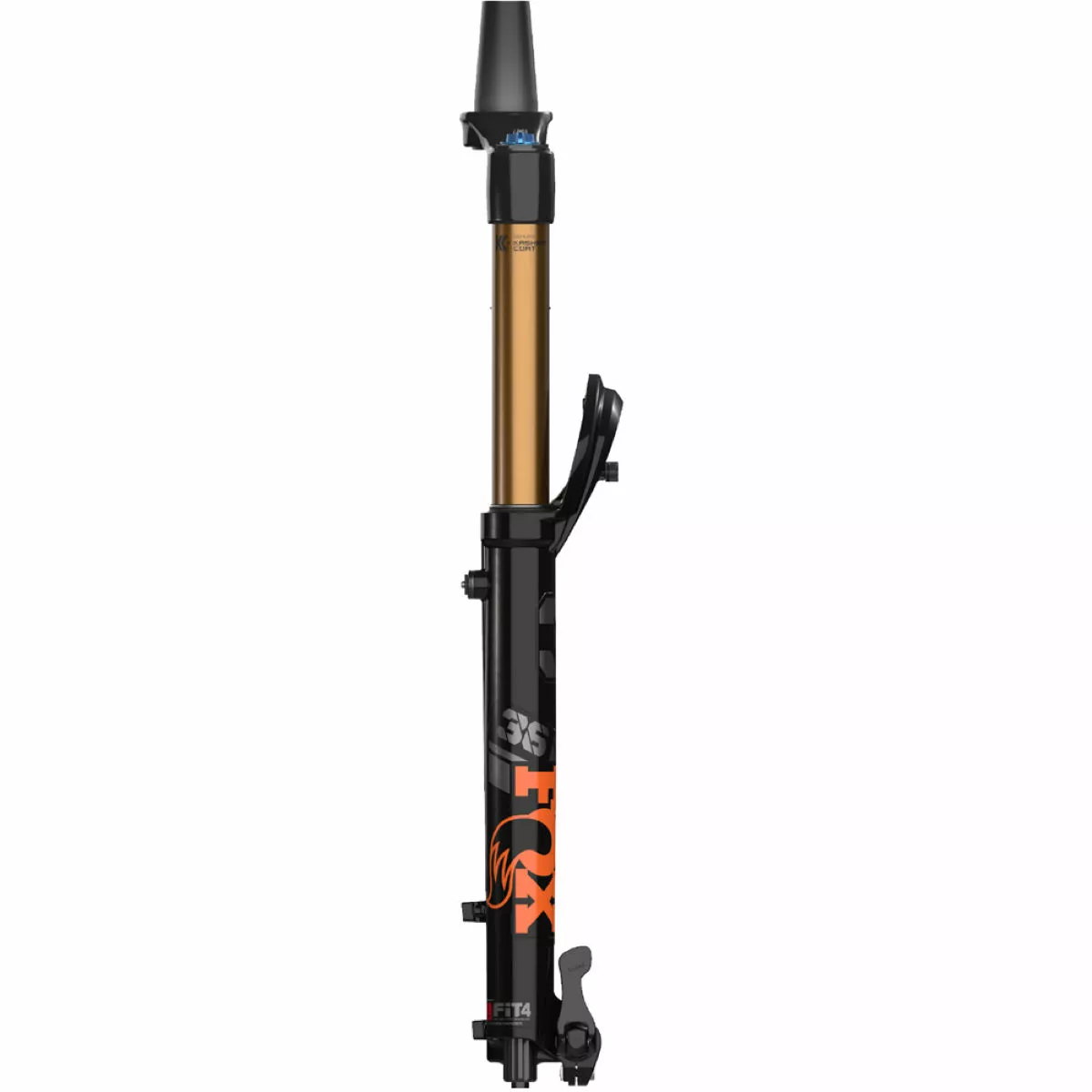

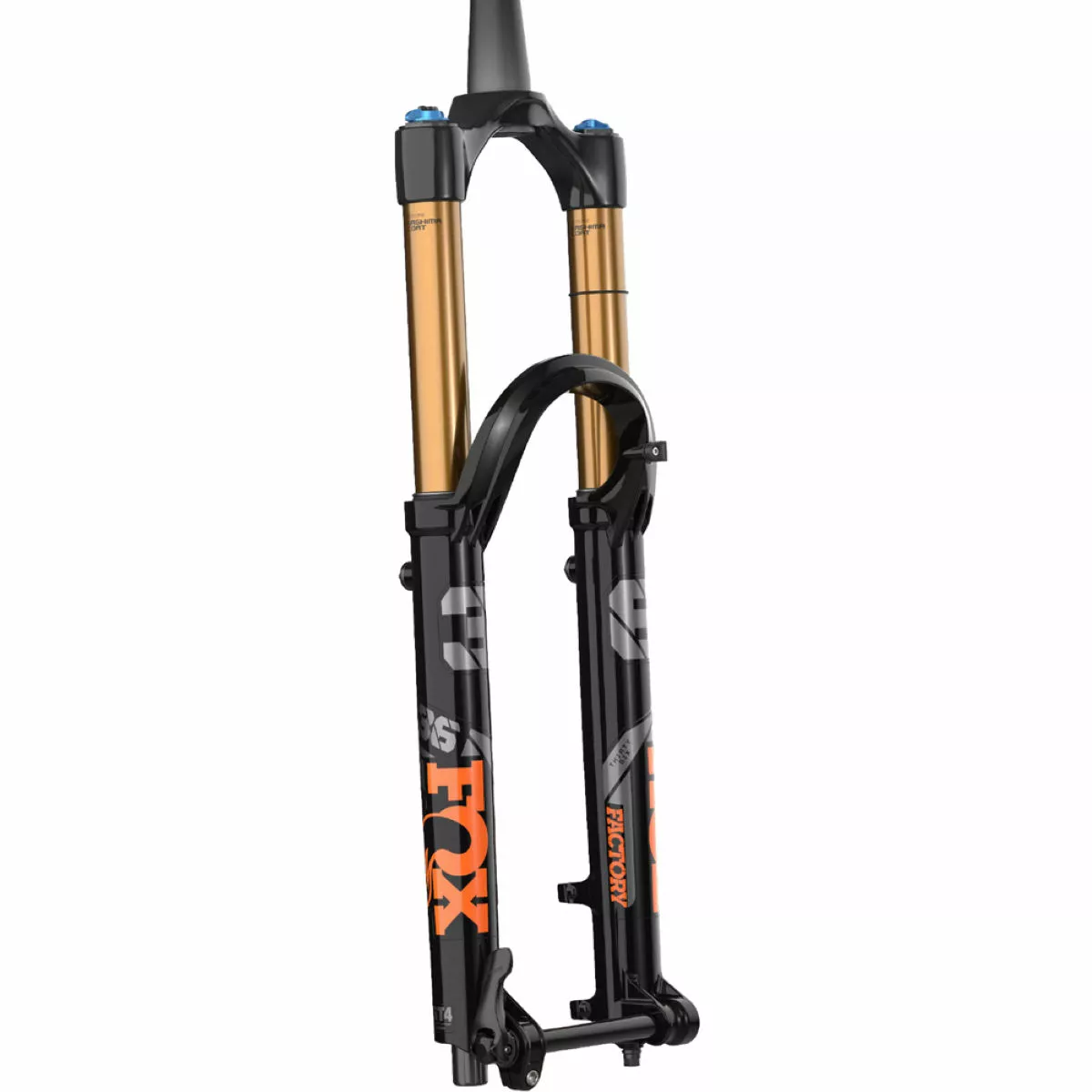

Fox Suspension 36 Float Factory Fit 4 Fork

Prepared for everything from big backcountry routes to the EWS circuit, this mountain bike (MTB) suspension fork is designed for smooth and reliable performance. No stranger to winning awards, accolades and Enduro World Series (EWS) races, this model features a completely updated design both inside and out. Fox Suspension has also equipped it with Boost axle spacing, making it ideal for modern enduro thanks to its extra stiffness. It also offers a wide range of adjustability from its lightweight Float EVOL air spring and its FIT4 damper that enable you to easily set it up to match your riding style. Part of the brand’s renowned Factory Series, it includes the best-of-the-best technologies and it comes complete with a genuine Kashima coating on its upper tubes for slippery smooth, ultra-durable performance.

FLOAT Air Spring

The FLOAT air spring system developed for 32, 34 and 40 is lighter and reduces the force to initiate travel, providing excellent sensitivity and small bump compliance for all riders and pressure settings. Similar to the brand’s FLOAT rear shocks, the FLOAT system features positive and negative air springs that automatically equalize during use to give each rider the right pressure balance. The progressiveness of the spring curve can be adjusted via air volume spacers, allowing riders to fine-tune the feel of the air spring.

Float EVOL

A more linear spring curve gives EVOL forks and shocks plushness off the top, extra mid-stroke support, and more tuneable bottom-out progression, allowing riders to tap into the ideal pairing of front and rear-end feel. The EVOL technology from rear shocks is now integrated into all FOX forks. EVOL increases negative air spring volume, specifically positioned and sized for optimum small bump sensitivity.

FIT4 Damper

In its fourth generation, Fox Suspension’s patented FIT4 closed cartridge system provides three on-the-fly compression damping positions (Open, Medium, and Firm) to adapt to varying trail conditions. Factory Series forks feature an additional 22 clicks of low-speed compression adjust in the Open mode, allowing riders to fine-tune their exact damping preferences.

Variable Valve Control (VVC)

FIT GRIP2 now features high-speed rebound using the novel and patent-pending approach: Variable Valve Control (VVC). It’s a revolutionary way to adjust the high-speed rebound circuit, effectively changing valve stiffness rather than adding preload. Unlike normal adjusters that add valve preload, VVC uses a leaf spring to alter valve flex in the high-speed rebound circuit. The adjuster provides the same effect as revalving high-speed rebound but without the need for damper disassembly.

Kashima Coat

Buttery-smooth, Genuine Kashima Coat’s distinctive gold colour is backed by its high-performance attributes – properties that provide an exceptionally smooth feel and extreme durability. All Factory Series Forks – Now available on the entire Factory Series fork lineup. Buttery-smooth, Genuine Kashima Coat is available only from FOX – the Kashima Coat logo is individually pad-printed on each stanchion.



Manufacturer’s Part Numbers:

910-21-123 Black 27.5″ QR110 160mm 44mm
910-21-116 Black 29″ QR110 150mm 44mm
910-21-117 Black 29″ QR110 150mm 51mm
